diymore USB to RS485/RS232 Bidirectional Communication Converter Module
Upgrade your serial communication setup with the diymore Industrial-Grade USB to RS485/RS232 Converter Module. Powered by the advanced CH343G chip, this plug-and-play module lets you switch seamlessly between RS485 and RS232 protocols via a simple DIP switch — no soldering, no complicated configuration. Whether you're working on industrial automation, embedded systems, or DIY electronics, this compact module delivers reliable, high-speed data communication up to 1,000,000 bps. Made in Mainland China.

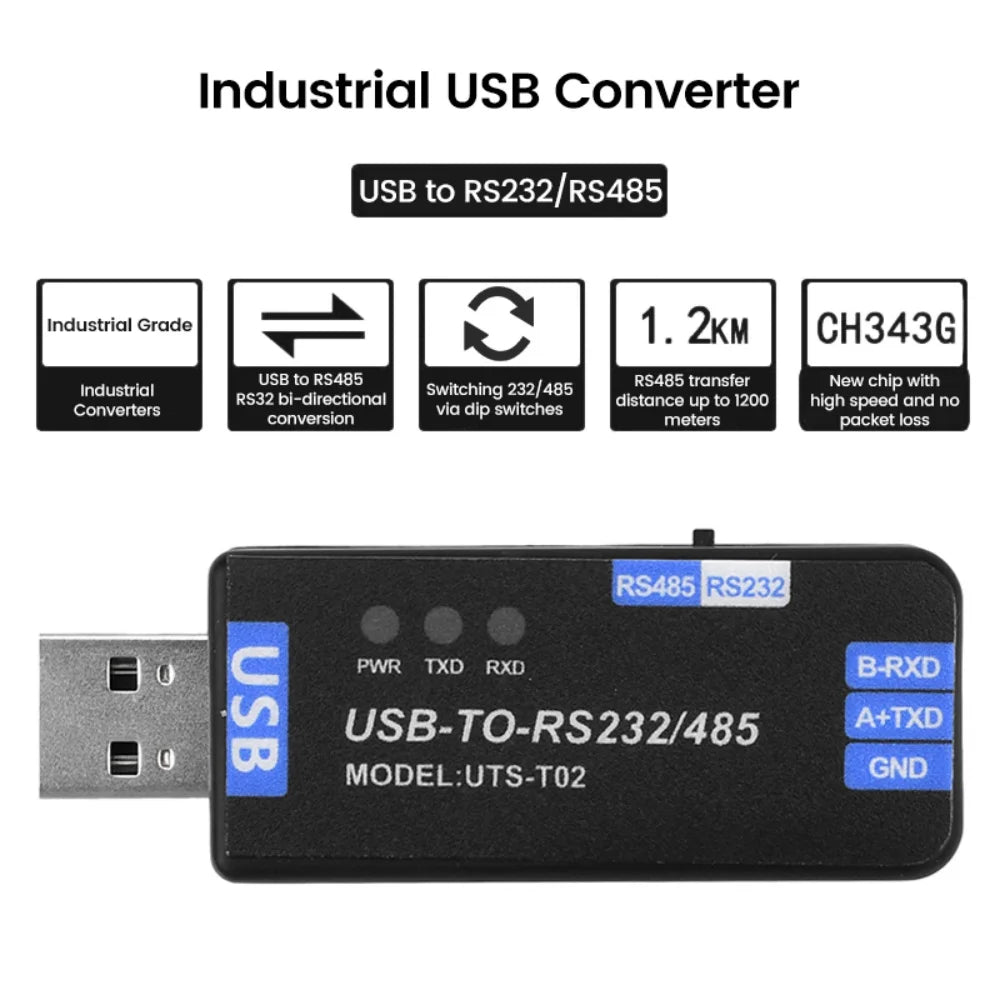

Key Features
- Dual Protocol Support: Switchable between RS485 and RS232 via on-board DIP switch for versatile deployment.

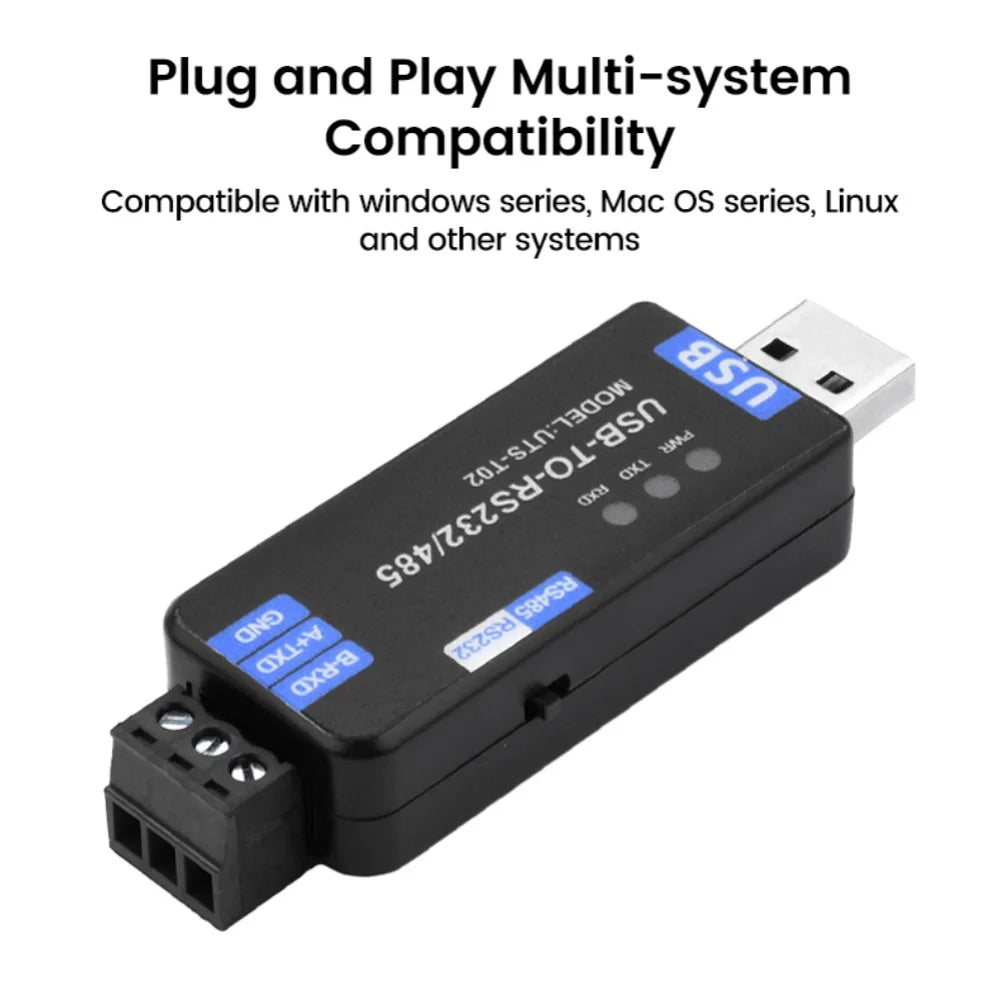

- CH343G Chip: Latest-generation chipset ensures true plug-and-play compatibility with Windows, macOS, and Linux — no driver hassle.
- Wide Communication Rate: Supports 50 bps to 1,000,000 bps to match any application's throughput needs.
- Built-In Surge & ESD Protection: On-board TVS (Transient Voltage Suppressor) provides 600W lightning protection, surge protection, and up to 15KV electrostatic protection.
- Self-Resetting Fuse & Protection Diode: 200mA resettable fuse and ESD protection diode safeguard both your module and connected devices from overcurrent/overvoltage events.
- 3 LED Status Indicators: Dedicated PWR, TXD, and RXD LEDs give you instant visual feedback on power status and data transmission activity.
- Extended RS485 Range: Transmit up to approximately 1,200 metres (RS485) or 10 metres (RS232) at low data rates.
- Multi-Node Support: Point-to-multipoint RS485 topology supports up to 32 nodes (repeater recommended for 16+ nodes).
- 120Ω Balancing Resistor: On-board termination resistor reduces signal reflections for clean, stable RS485 communication.
- USB Type-A Connector: Standard, universally compatible host interface operating at 5V.

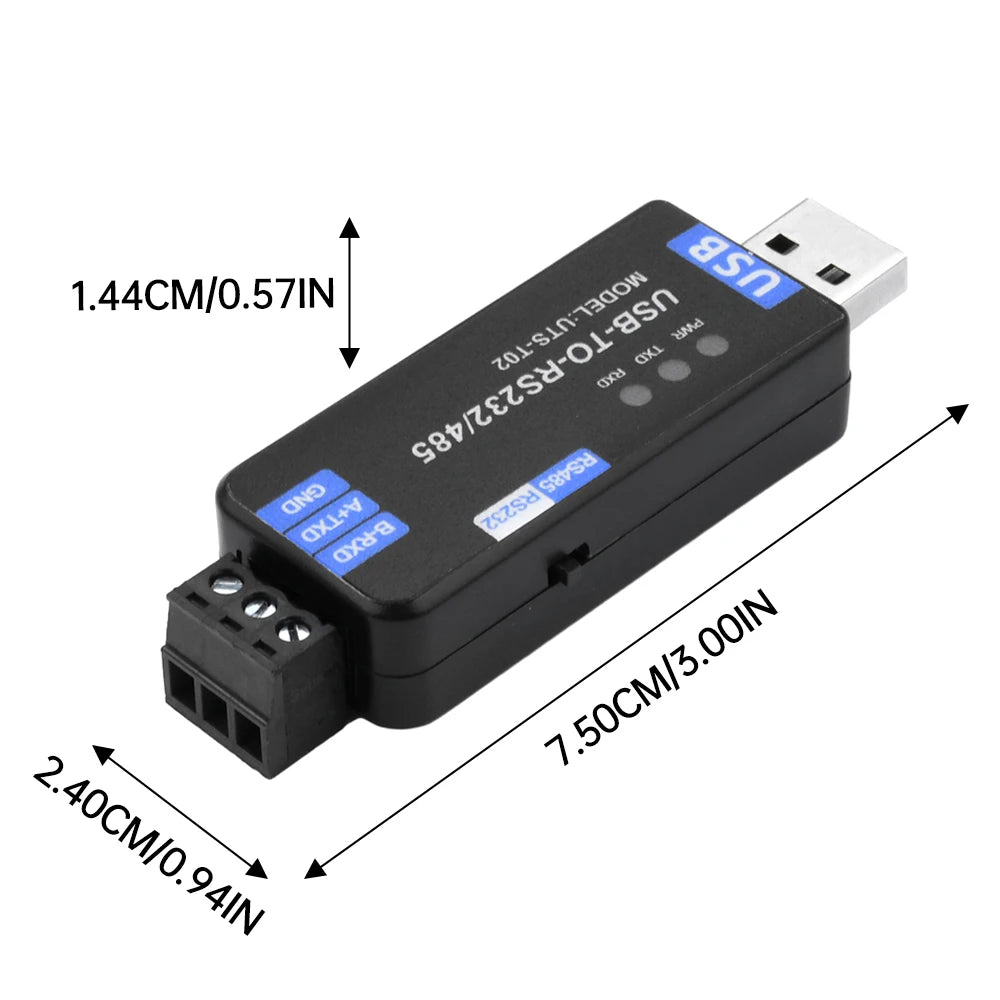

Technical Specifications
| Brand | diymore |
| Chip | CH343G |
| Host Interface | USB Type-A connector |
| Device Interface | RS485 / RS232 (DIP switch selectable) |
| Operating Voltage | 5V (USB bus-powered) |
| Communication Rate | 50 bps – 1,000,000 bps |
| RS485 Transmission Distance | ~1,200 m (at low data rates) |
| RS232 Transmission Distance | ~10 m (at low data rates) |
| USB Interface Protection | 200mA resettable fuse, ESD protection |
| RS485/RS232 Protection | 600W lightning, surge, 15KV ESD, 120Ω balancing resistor |
| Interface Pins | GND, A+ (TXD), B− (RXD) |
| Direction Control | Hardware automatic detection & control |
| Transmission Mode | Half-duplex (RS485 multi-drop up to 32 nodes; RS232 point-to-point) |
| OS Compatibility | Windows, macOS, Linux |
| Package | TQFP |
| Country of Origin | Made in Mainland China |
LED Indicator Guide
- PWR: Illuminates when USB connection detects voltage — confirms the module is powered.
- TXD: Flashes when data is being transmitted from the USB port.
- RXD: Flashes when data is being received via the USB port.

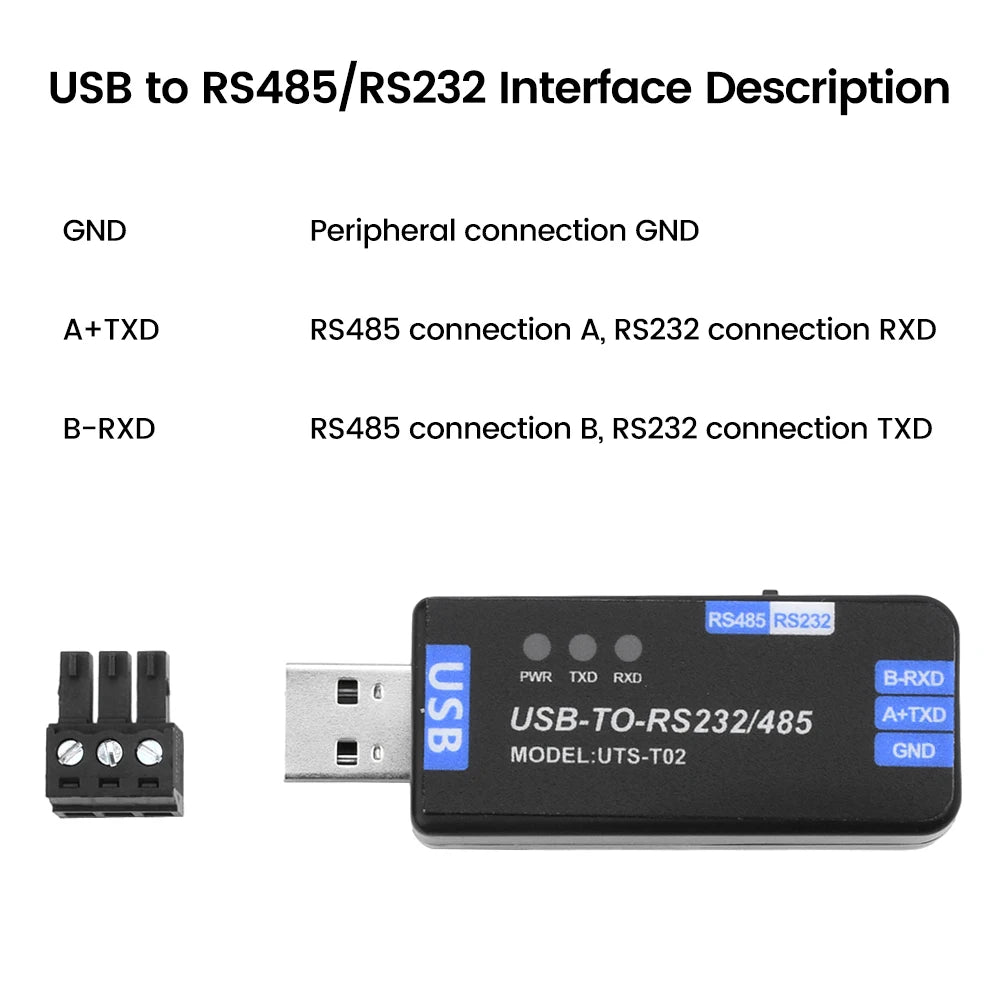

Interface Pin Connections
- GND: Peripheral connection ground
- A+ / TXD: RS485 Line A — or RS232 RXD
- B− / RXD: RS485 Line B — or RS232 TXD
What's in the Box

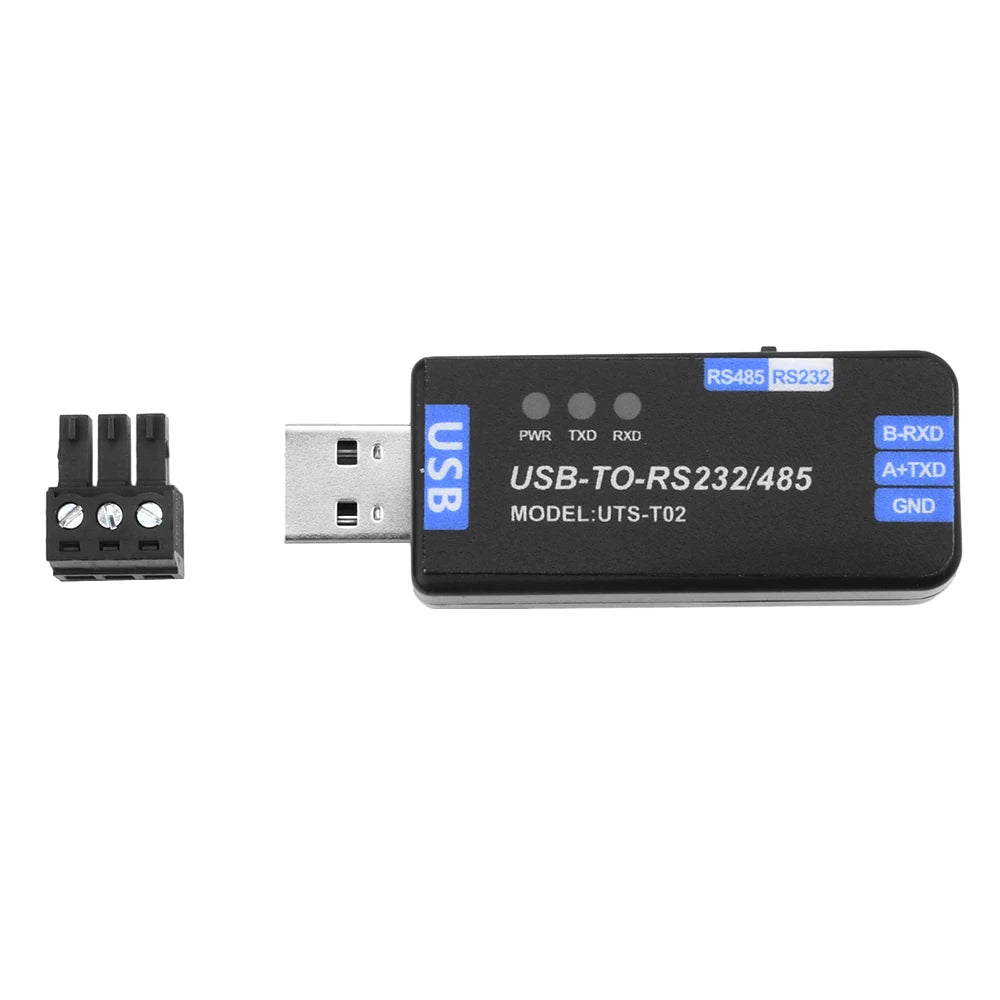

- USB to RS485/RS232 Converter Module × 1
