Dual-Port Type-C Cable Testing Module with LED Indicators

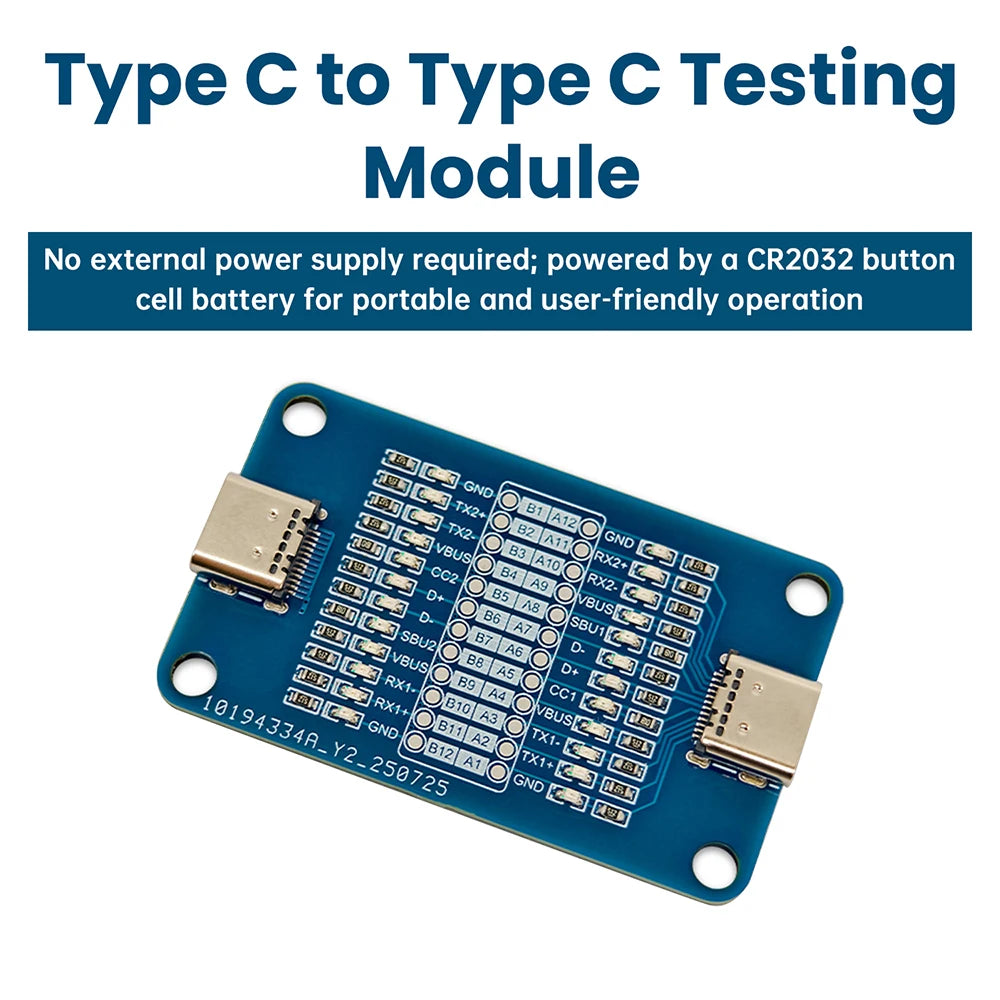

Quickly and accurately verify the full-pin connectivity of your USB-C to USB-C fast-charging cables with this compact, portable Dual-Port Type-C Cable Tester Module by diymore. Featuring 12 independent LED indicators and a self-contained CR2032 battery power system, this handy tester needs no external power source — making it ideal for workbench diagnostics, field servicing, and quality screening of Type-C cables.
Key Features
- Full 24-Pin Continuity Testing: Supports complete pin conductivity testing of dual-ended Type-C cables, accurately pinpointing any faulty pin.
- 12 LED Indicators: Each LED clearly displays the connectivity status of individual pins (12 pins tested per side), so you can instantly spot faults at a glance.
- No External Power Needed: Powered by a standard CR2032 button cell battery — completely portable and ready to use anywhere.
- Compact & Portable: Slim 50 × 30 mm form factor slips easily into a toolkit, making on-site testing fast and convenient.
- Boosts Testing Efficiency: Rapidly screens and diagnoses full-function Type-C cables, reducing cable-related troubleshooting time during repairs or production checks.
Specifications
| Interface | Dual USB Type-C (24-pin) |
| Power Supply | CR2032 Button Cell Battery |
| LED Indicators | 12 Independent LEDs |
| Dimensions | 50 × 30 mm |
| Color | Blue |
| Power Consumption | Low Power |
| Country of Origin | Made in Mainland China |
How to Use
- Insert both ends of your Type-C to Type-C cable into the module's two USB-C ports.
- Observe the LED indicators — a lit LED confirms that the corresponding circuit/pin is connected and functioning normally.
- A fully functional Type-C cable has 24 pins with 22 active connections — expect 22 LEDs to illuminate (note: D+ and D− on one side will not light up by design).
What's in the Box
- 1 × Type-C Cable Testing Module
Related Products You May Like
If you enjoy working with electronics and tech tools, check out these other products in our store:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What type of cables can this USB-C cable tester test?
A: This tester is designed specifically for full-function Type-C to Type-C cables with 24 pins. It tests all 22 active pin connections and displays the status of each via the 12 built-in LED indicators, making it ideal for fast-charging and data cable verification.
Q: Does the Type-C cable testing module require an external power source?
A: No. The module is powered entirely by a CR2032 button cell battery, so no USB or mains power is required. This makes it fully portable and perfect for on-site testing or bench use without any additional setup.
Q: How do I know if a cable has a faulty pin using this tester?
A: Simply insert both ends of the cable into the module's two Type-C ports. Each of the 12 LED indicators corresponds to specific pins. If an LED does not light up (and it should based on the expected 22-pin illumination), that pin has a connectivity issue — making it easy to identify exactly which pin is faulty.
Q: Is the diymore cable tester module compatible with USB4 or Thunderbolt cables?
A: This module is optimized for standard full-function 24-pin Type-C cables. Compatibility with proprietary cable standards like USB4 or Thunderbolt may vary. It is primarily intended for continuity/pin-connectivity testing rather than protocol or speed verification.
