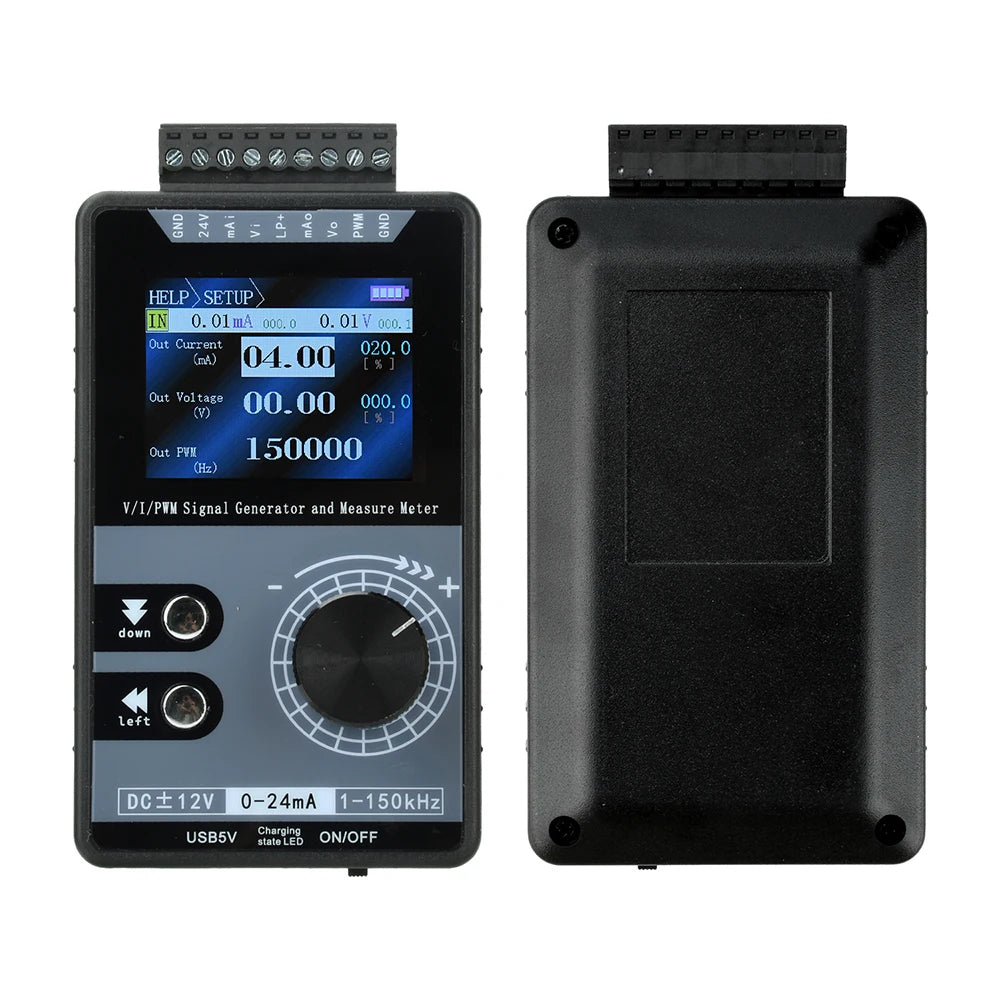

Gaqqee PWM Pulse Signal Generator – Multifunctional Colour Screen Signal Source
The Gaqqee PWM Pulse Signal Generator is a professional-grade, multifunctional signal source designed for industrial control DC analogue signal debugging, electrical equipment installation and maintenance, and PWM motor speed regulation. Featuring a bright 2-inch TFT colour screen (320×240 pixels), triple power supply options, and wide output ranges (0–20mA, 4–20mA, 0–10V, 0–5V, and PWM square wave), this compact instrument is an essential tool for engineers and technicians in the field or on the bench.
Made in Mainland China.

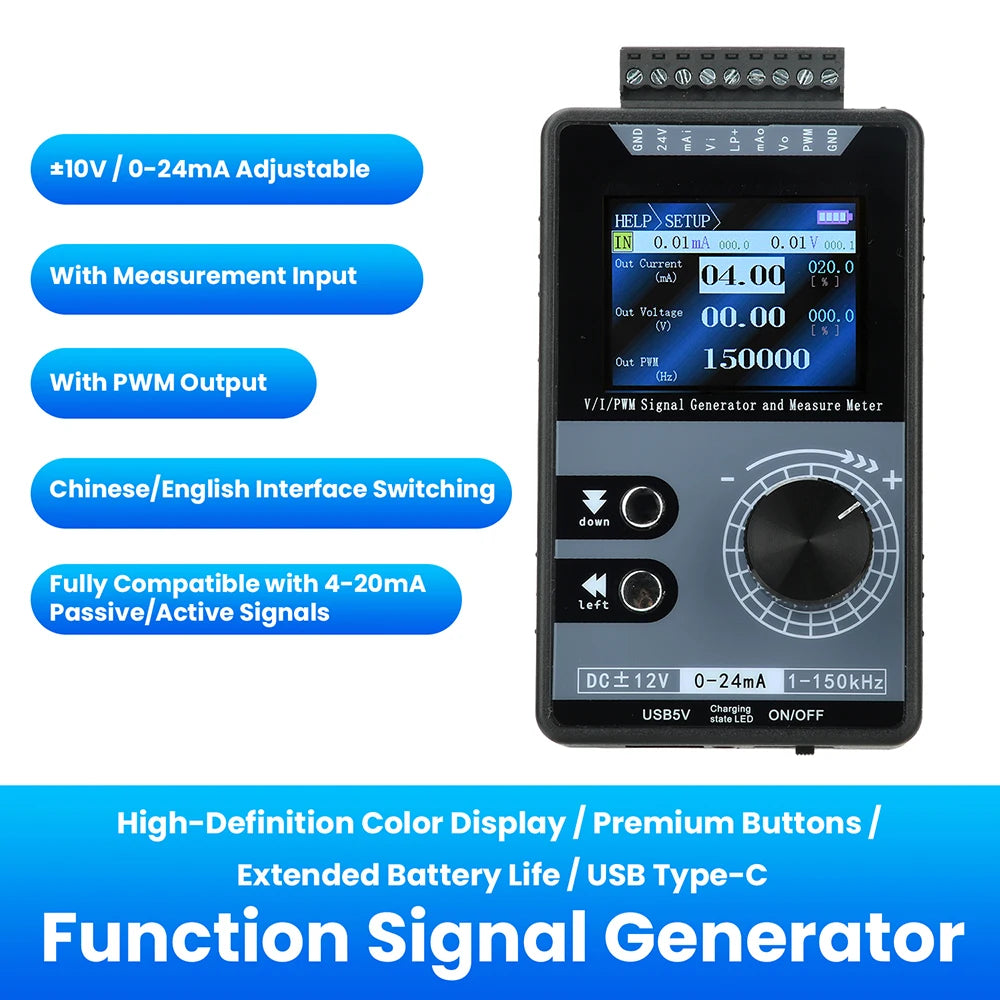

Key Features

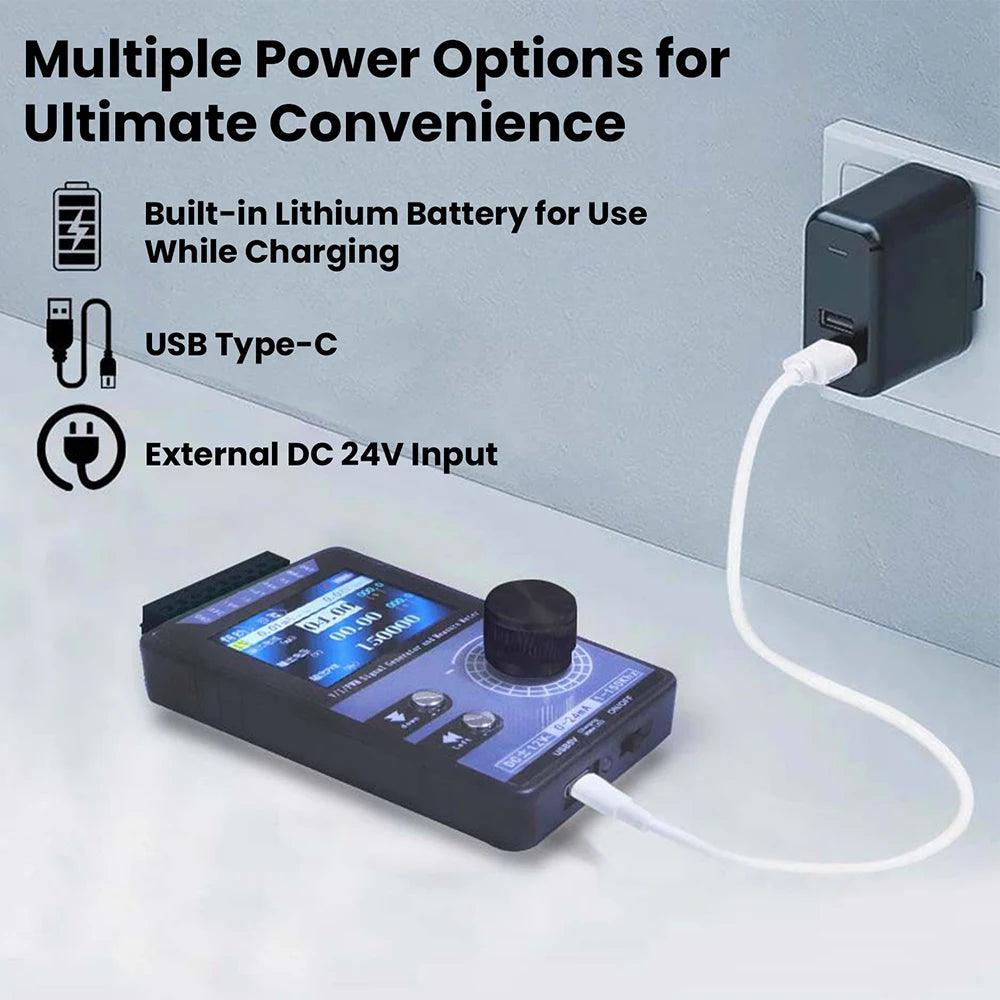

- Triple Power Supply Flexibility: Operate via external DC 24V terminal, USB-C (5V), or the optional built-in 3.7V 1500mAh lithium battery — adapt seamlessly to any work environment, from workshop bench to field installation.
- Wide Output Range: Voltage output ±12V (max 20mA under load, short-circuit protected); current output 0–24mA (max sampling resistance 500Ω); freely configurable output presets including 0–20mA, 4–20mA, 0–10V, and 0–5V with user-configurable engineering display values.

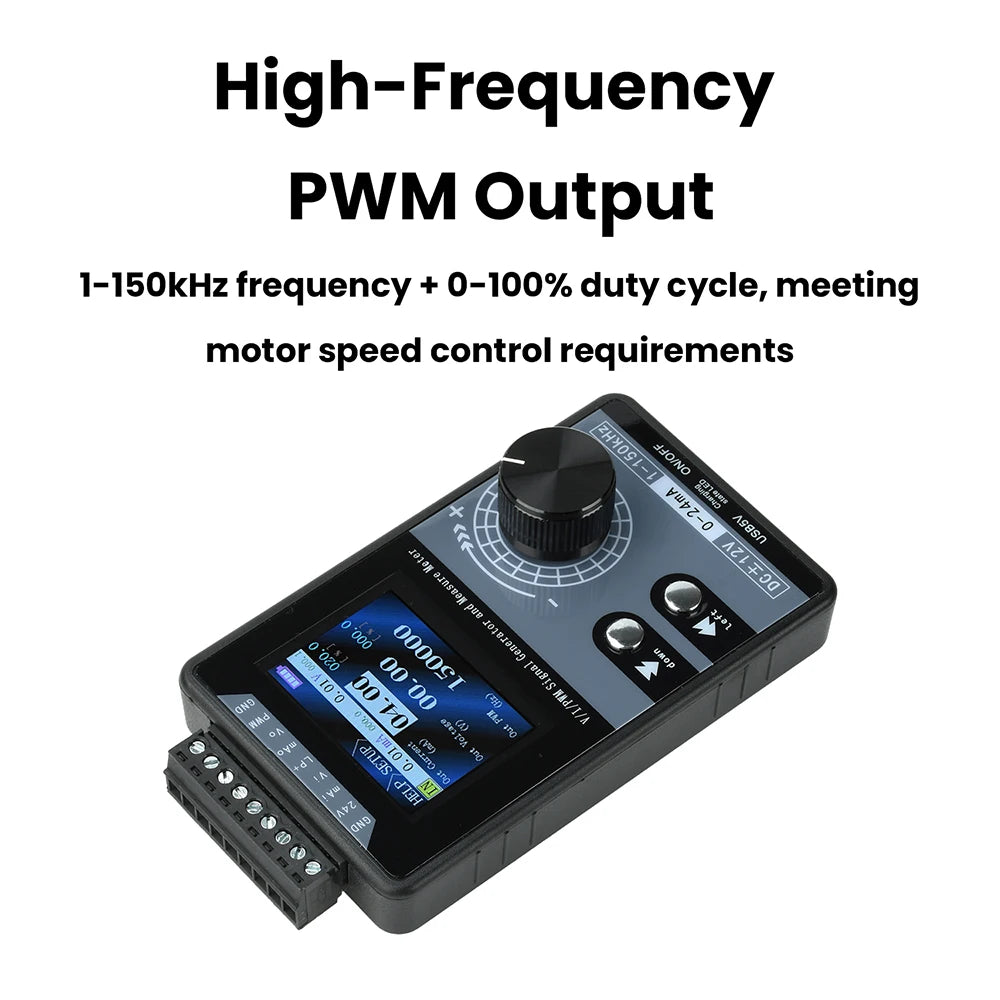

- High-Frequency PWM Square Wave Output: Frequency adjustable from 1 Hz to 150 kHz, duty cycle adjustable 0–100%, with a fixed 5V high level and drive current under 20mA. Short-circuit protected for safe operation.
- Precision Voltage & Current Measurement: Measure voltage up to ±50V and current up to ±50mA, making it a versatile diagnostic and calibration tool.

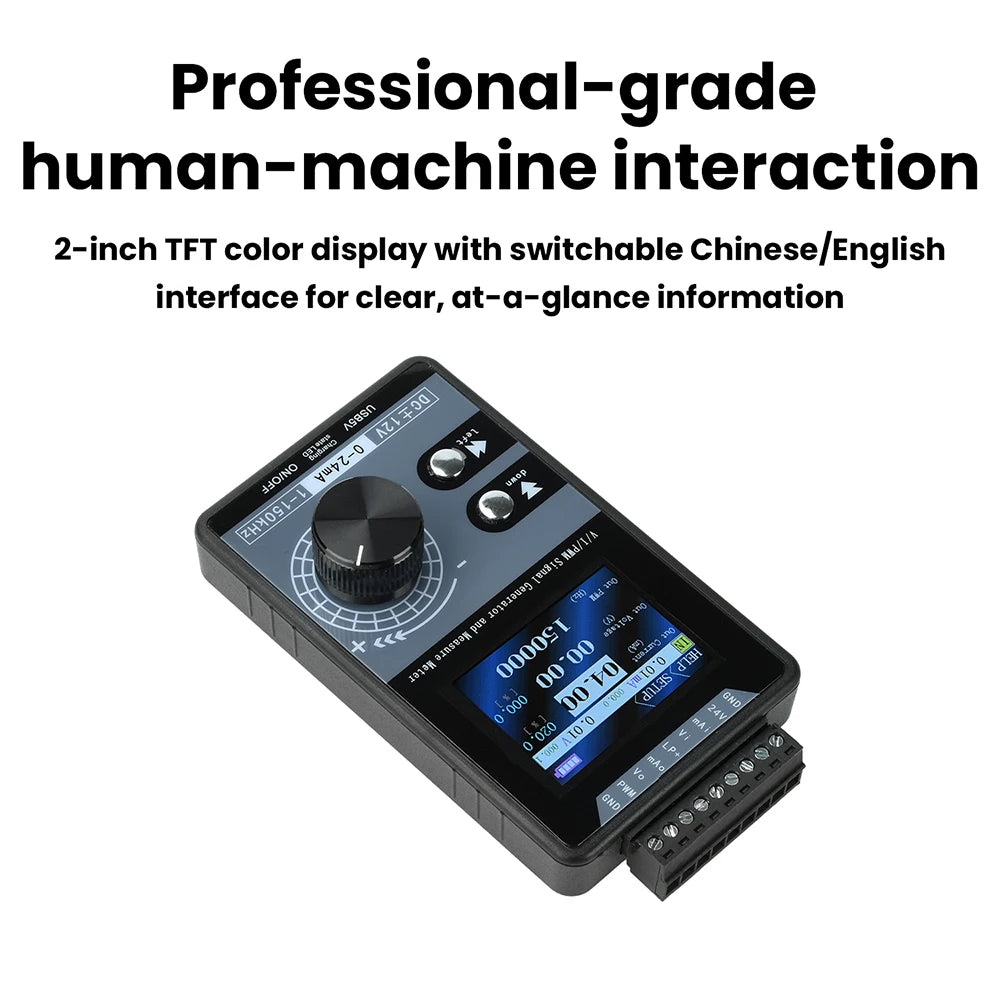

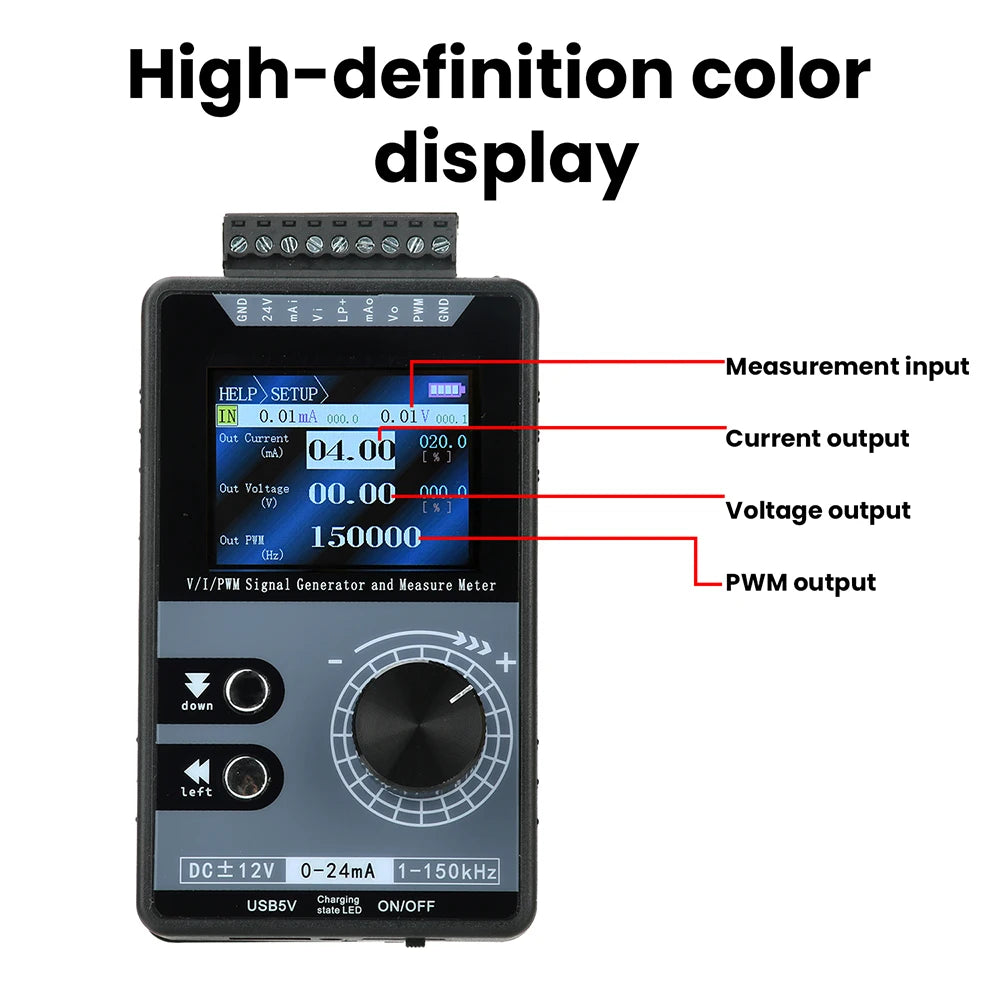

- 2-Inch TFT Colour Display: Clear 320×240 pixel screen with switchable Chinese/English interface for easy reading in any language preference.
- EC11 Digital Encoder Knob: 20-step-per-revolution large knob with electroplated keycaps delivers precise, tactile adjustment — no guessing, just confident control.
- Intelligent Charging Indicator: LED indicator turns red during charging and green when fully charged. On-screen battery icon provides live charging status at a glance.
- CE & RoHS Certified: Meets international safety and environmental compliance standards.
Full Specifications
| Display | 2-inch TFT colour screen (320×240 pixels) |
| Interface Language | Switchable Chinese / English |
| Power Supply Options | DC 24V terminal / USB-C 5V / Built-in 3.7V 1500mAh Li-battery (battery model) |
| Voltage Output Range | ±12V (max 20mA load, short-circuit protected) |
| Voltage Measurement Range | ±50V |
| Current Output Range | 0–24mA (max 500Ω sampling resistance, short-circuit capable) |
| Current Measurement Range | ±50mA |
| Output Presets | 0–20mA / 4–20mA / 0–10V / 0–5V (user-configurable) |
| PWM Output | 1–150 kHz frequency, 0–100% duty cycle, 5V high level, <20mA drive current |
| Knob | EC11 digital encoder, 20 steps/rev, with push button |
| Terminal Plug | 15EDGK3.81 (9-pin) |
| Operating Environment | 0–40°C, relative humidity <80% |
| Charging Time (battery model) | Approx. 6+ hours; provides 1–5 hours runtime depending on output load |
| Certification | CE, RoHS |
| Country of Origin | Mainland China |
What's in the Box

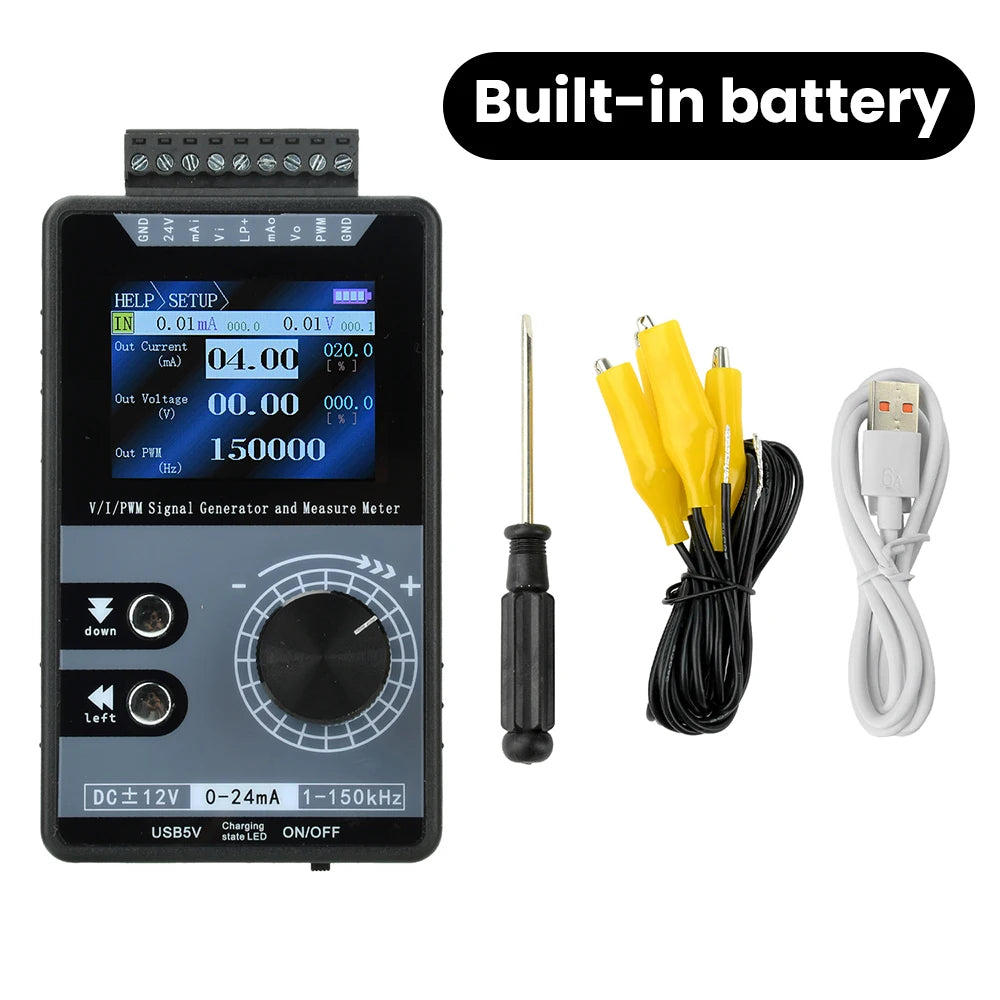

- Signal Generator Main Unit × 1
- Flathead Screwdriver × 1
- USB-C Charging Cable × 1
- Alligator Clip Test Leads × 4 (20AWG / 0.5mm²)
Usage Notes
- Always switch off power before connecting cables.
- Operating beyond specified technical parameters may cause malfunction or damage.
- The PWM 5V output is not suitable for direct use in 12V or 24V systems, as 5V is recognised as a low level in those systems.
