PLS500 Dual-Channel Pulse PWM Signal Generator
The Gaqqee PLS500 is a professional-grade, programmable dual-channel PWM signal generator designed for engineers, electronics hobbyists, and lab technicians who demand precision and flexibility. With a wide frequency range of 1Hz to 500kHz, a full 0–100% adjustable duty cycle, and complementary output with programmable dead time, this compact unit handles everything from basic switching tests to complex industrial servo simulations.
Key Features

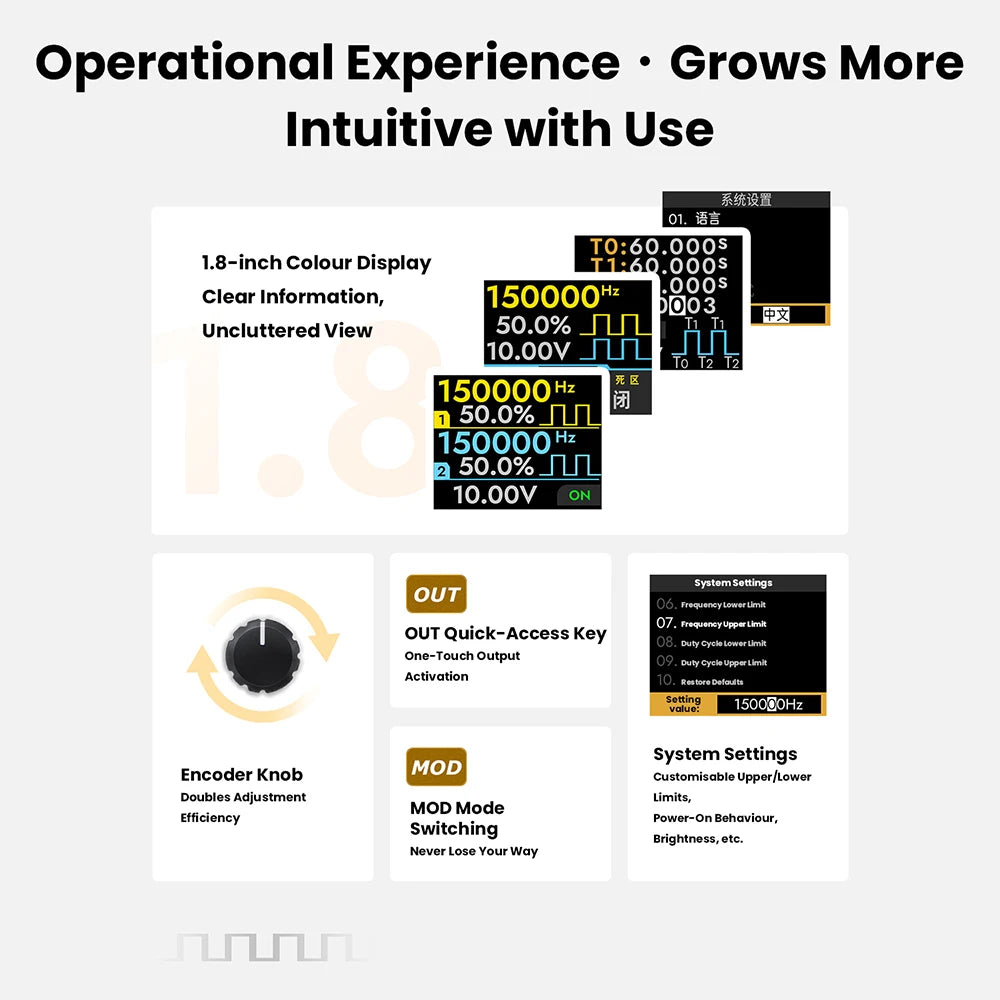

- 1.8-inch Colour Display — Clear, vibrant screen with intuitive encoder + pushbutton operation for fast, accurate parameter adjustments.
- Wide Frequency Range: 1Hz to 500kHz with 1Hz step resolution — ideal for sweep frequency testing and fine-tuning.
- Dual-Channel Output (CH1 + CH2) — Independent or complementary channel operation with phase shift testing support up to 359°.
- Duty Cycle Control: Freely adjustable from 0–100% with 0.1% step resolution; no waveform distortion at full pull-up or pull-down.
- Complementary PWM with Dead Time: Programmable dead time from 00–91ns (7ns increments) or 00.0–20.0µs (0.1µs increments) — perfect for H-bridge and motor driver testing.
- Ultra-Fast 10ns Rise Time — Maintains pristine waveforms even at high frequencies for accurate driver and switching device testing.
- Programmable Pulse Timing: T0 delay, T1 positive pulse width, and T2 negative pulse width each configurable from 0.001s to 60.000s.
- Pulse Count Control: Set counts from 1 to 60,000 or run continuously (∞).
- CE & RoHS Certified — Meets European safety and environmental standards.
- Compact Form Factor: 108×63×24mm panel-mount design with 100×56mm cutout dimensions.
Technical Specifications
| Operating Voltage | DC 5–24V |
| Output Channels | CH1 + CH2 |
| Frequency Range | 1Hz – 500kHz (1Hz step) |
| Frequency Accuracy | 1–10kHz: ±0.2% / 10–50kHz: ±0.4% / 50–500kHz: ±2% |
| Duty Cycle | 0–100% (0.1% step) |
| Phase Range | 0–359° (1° step) |
| Rise Time | 10ns |
| Dead Time | 00–91ns (7ns steps) / 00.0–20.0µs (0.1µs steps) |
| PWM Mode | Standard / Complementary |
| Pulse Count | 1–60,000 or ∞ |
| Display | 1.8-inch colour screen |
| Operation | Encoder + Pushbutton |
| Dimensions | 108×63×24mm (cutout: 100×56mm) |
| Certifications | CE, RoHS |
What's in the Box
- PLS500 Display Unit ×1
- User Manual ×1
Made in Mainland China.
You May Also Like
Looking for more DIY electronics and project supplies? Check out these related products in our store:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the frequency accuracy of the PLS500 PWM signal generator at high frequencies?
A: The PLS500 offers ±0.2% accuracy from 1kHz–10kHz, ±0.4% from 10kHz–50kHz, and ±2% from 50kHz–500kHz — delivering reliable precision across the full frequency range for demanding electronics testing.
Q: Can the PLS500 be used for H-bridge motor driver testing?
A: Yes. The PLS500 supports complementary PWM mode with programmable dead time (7ns to 20µs range), making it well suited for H-bridge driver testing, motor control signal simulation, and switching device characterisation.
Q: What power supply does the PLS500 require?
A: The PLS500 operates on a DC 5–24V power supply (not included). This wide input voltage range makes it compatible with common bench power supplies and many embedded system power rails.
Q: Is the PLS500 panel-mount compatible?
A: Yes. The unit is designed for panel mounting with a cutout dimension of 100×56mm and an overall unit size of 108×63×24mm, fitting neatly into enclosures and test rigs.
