diymore PD/QC/AFC Fast Charging Trigger Module — Type-C, Fixed Voltage Output
Take full control of your fast-charging power supply projects with the diymore Fast Charging Simulator Trigger Module. Compact, reliable, and incredibly versatile, this tiny board lets you negotiate and lock in a precise fixed voltage — 5V, 9V, 12V, 15V, or 20V — from any compatible PD, QC, or AFC fast charger via a standard Type-C interface. Perfect for DIY electronics projects, power supply testing, prototyping, and custom charging circuits.
Key Features
- Multi-Protocol Support: Compatible with PD2.0 / PD3.0, QC2.0 / QC3.0, and AFC fast-charging protocols.
- Five Fixed Voltage Options: Select between 5V, 9V, 12V, 15V, and 20V output — ideal for powering a wide range of electronics components.

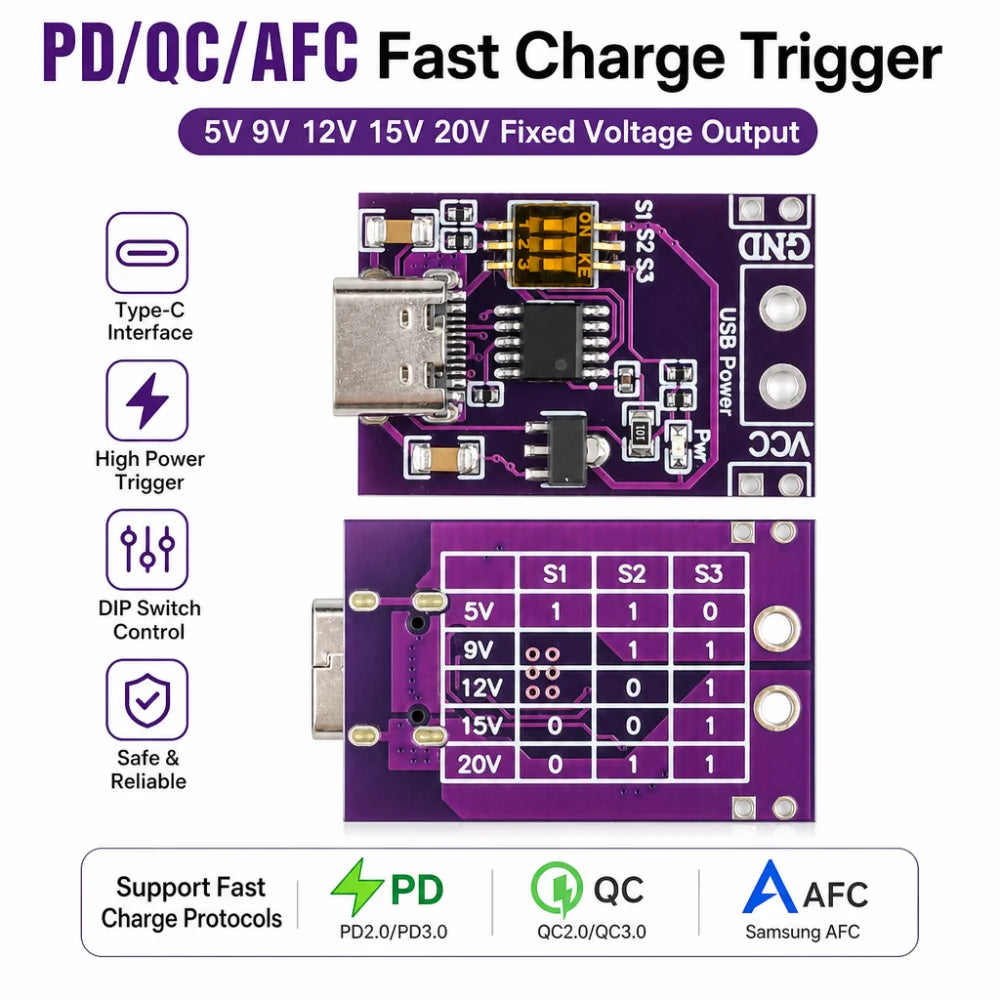

- Simple DIP Switch Control: Adjust onboard DIP switches according to the reference table on the back of the board to set your desired output voltage. No soldering required for voltage selection.
- Low Power Consumption: Efficient design keeps heat and waste to a minimum.
- Ultra-Compact Form Factor: At just ~3.1 × 2 cm, it fits seamlessly into tight project enclosures or breadboard builds.
- Type-C Interface: Compatible with modern fast chargers using the USB Type-C connector standard.
- Stable & Reliable Performance: Consistent voltage output for safe use in sensitive circuits.
Technical Specifications
| Supported Protocols | PD2.0 / PD3.0, QC2.0 / QC3.0, AFC |
| Output Voltages | 5V, 9V, 12V, 15V, 20V (fixed; no stepping) |
| Voltage Selection | DIP switch adjustment |
| Connector | USB Type-C |
| Dimensions | Approx. 3.1 × 2 cm |
| Power Consumption | Low |
| Condition | New |
| Country of Origin | Made in China |
Usage Tips
- After adjusting the DIP switches, always use a multimeter to verify the output voltage before connecting to your application circuit — there is no onboard voltage indicator LED.
- If the DIP switches are not set according to the reference table, the module may output any one of the supported voltages unpredictably.
- Ensure your fast charger supports the target voltage before use. Not all chargers support all five voltages.
What's in the Box
- Fast Charging Trigger Module × 1 or × 5 (buyer's choice)
You May Also Like
Looking for more electronics and project accessories? Check out these related products:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What fast-charging protocols does this trigger module support?
A: The diymore fast charging trigger module supports PD2.0, PD3.0, QC2.0, QC3.0, and AFC protocols, making it compatible with a broad range of modern USB Type-C fast chargers.
Q: How do I select the output voltage on the fast charging trigger module?
A: Output voltage is selected by adjusting the onboard DIP switches according to the reference table printed on the back of the board. Available fixed voltages are 5V, 9V, 12V, 15V, and 20V. Note that voltage stepping is not supported — only fixed values.
Q: Do I need a multimeter to use this module safely?
A: It is strongly recommended. Since the board has no built-in voltage indicator LED, using a multimeter to verify the output voltage after setting the DIP switches — before connecting to your circuit — helps ensure safe and accurate operation.
Q: Can I buy a single module or do I have to buy a pack of 5?
A: Both options are available. You can choose either a single fast charging trigger module or a 5-piece pack at checkout, depending on your project needs.
