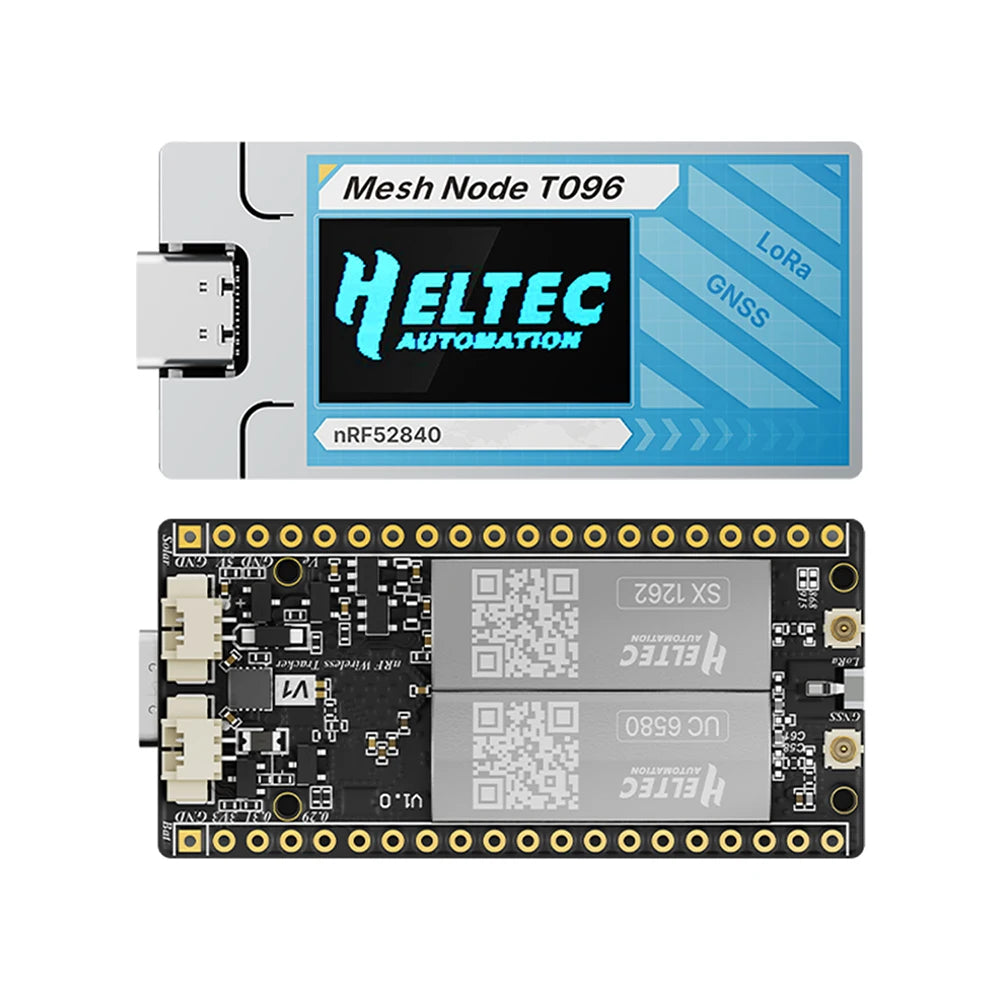

Mesh Node T096 – Ultra-Low-Power LoRa, GNSS & Bluetooth Development Board
The Mesh Node T096 is a compact, ultra-low-power development board that combines LoRa long-range wireless communication, dual-frequency GNSS global positioning, and Bluetooth 5.0 into a single versatile platform. Built around the powerful nRF52840 MCU, it is designed for developers, hobbyists, and IoT engineers who need a reliable, out-of-the-box solution for building resilient mesh networks, asset tracking systems, and remote sensing deployments. Fully compatible with Meshtastic and MeshCore, this board gets you up and running fast. Made in Mainland China.
Why Choose the Mesh Node T096?
- High-Power LoRa: SX1262 LoRa chip with integrated PA delivers 28±1 dBm transmit power and a bypassable low-noise amplifier (LNA) for exceptional range and link reliability across 863–928 MHz.
- Precision GNSS Positioning: UC6580 chip supports L1+L5 dual-frequency positioning and is compatible with GPS, GLONASS, BeiDou (BDS), Galileo, NAVIC, and QZSS for truly global coverage.
- Bluetooth 5.0 & Bluetooth Mesh: The nRF52840 MCU provides seamless BLE connectivity and full Bluetooth Mesh support for scalable network topologies.
- Ultra-Low Power Design: Ideal for battery-powered field deployments, with an integrated lithium battery management system covering charge/discharge management, overcharge protection, battery level detection, and automatic USB/battery power switching.
- Meshtastic & MeshCore Compatible: Plug straight into leading open-source mesh networking ecosystems for rapid prototyping and deployment.
- LDS Antenna Technology: GNSS and Bluetooth antennas are designed using Laser Direct Structuring (LDS) technology, achieving a compact, durable, and efficient antenna solution.
- Comprehensive Protection: USB-C interface includes full voltage regulation, ESD protection, short-circuit protection, and RF shielding.
Full Technical Specifications
| MCU | nRF52840 |
| LoRa Chip | SX1262 |
| GNSS Chip | UC6580 (L1+L5 dual-frequency) |
| Frequency | 863–928 MHz |
| Max Transmit Power | 28±1 dBm |
| Bluetooth | Bluetooth 5.0, supports Bluetooth Mesh |
| Hardware Resources | USB 2.0, 2 LEDs, 2 buttons, 4 SPI, 2 TWI, 2 UART, 4 PWM, QSPI, I2S, PDM, QDEC |

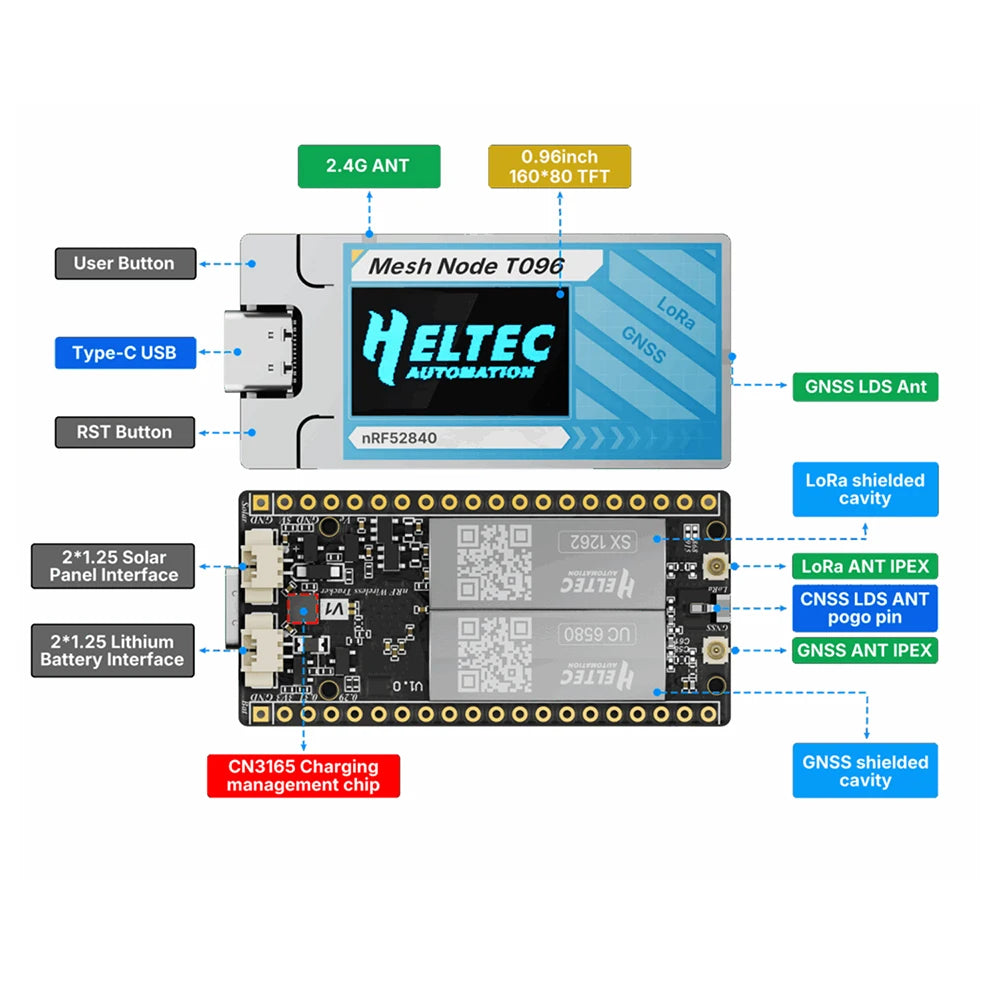

| Interfaces | USB Type-C, 1.25-2P Li-battery connector, 1.25-2P solar panel connector, LoRa antenna (IPEX 1.0), GNSS antenna (IPEX 1.0), 2×13-pin 2.54 mm pitch header pins |
| Power Supply | USB-C 5V |
| Lithium Battery | 3.7V (3.3–4.2V) |
| Operating Temperature | -20 to 70 °C |
| Dimensions | 52.00 × 25.40 × 10.26 mm |
| Compatible Software | Meshtastic, MeshCore, Arduino IDE |
| Country of Origin | Made in Mainland China |

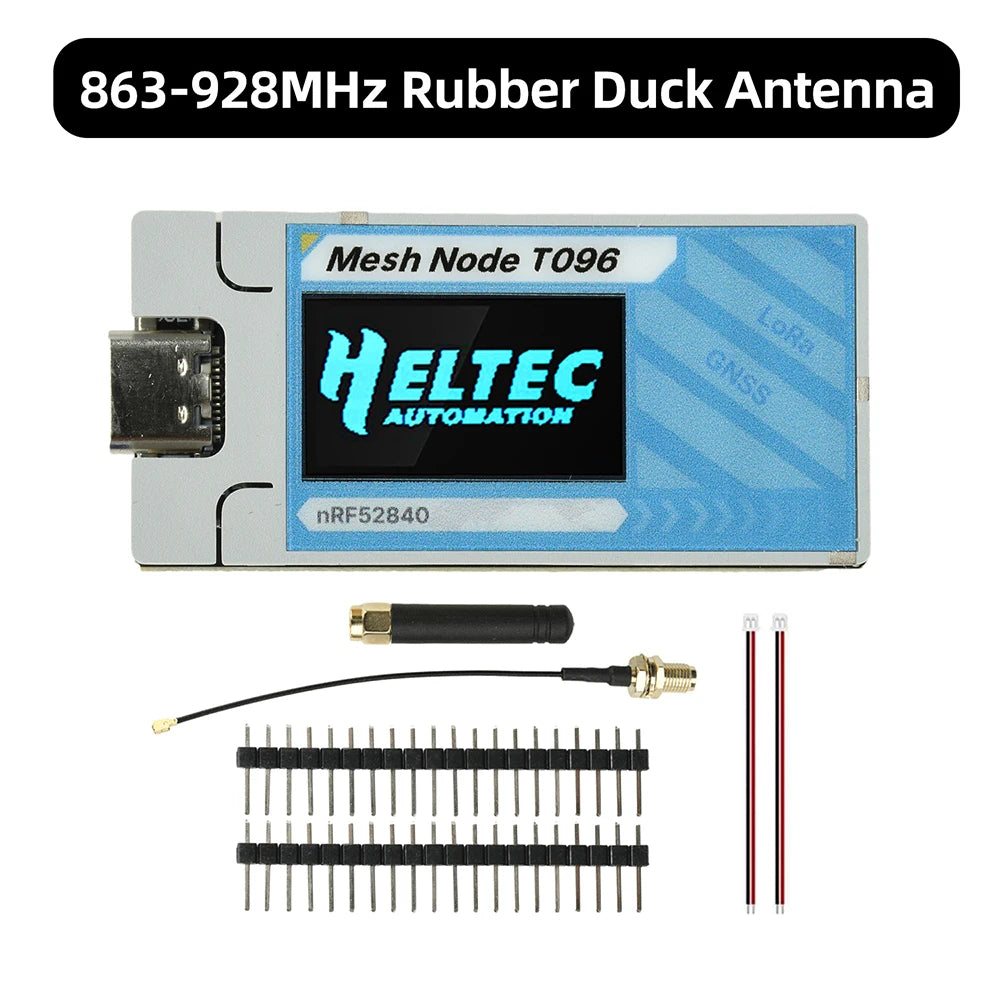

What's in the Box
- 1 × Mesh Node T096 Development Board
- 2 × 18-pin header pins
- 2 × 2-pin terminal leads
- 1 × Antenna
Ideal Applications
- Decentralised and centralised mesh networking (Meshtastic / MeshCore)
- Asset tracking and fleet management
- Remote sensing and environmental monitoring
- Internet of Things (IoT) prototyping
- Off-grid and outdoor communications
- Solar-powered sensor nodes
Related Products You May Like
Looking to support your health and wellness alongside your tech projects? Check out Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules. If you enjoy outdoor adventures and need reliable field gear, explore our B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike for your next outdoor excursion.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What mesh networking software is the Mesh Node T096 compatible with?
A: The Mesh Node T096 is fully compatible with Meshtastic and MeshCore, two popular open-source mesh networking platforms. It also supports the Arduino (Ard) development environment, making it straightforward for developers to write custom firmware and examples, including LoRa/LoRaWAN sample programs.
Q: What GNSS satellite systems does the UC6580 chip support?
A: The UC6580 GNSS chip supports GPS, GLONASS, BeiDou (BDS), Galileo, NAVIC, and QZSS using L1+L5 dual-frequency reception for highly accurate global positioning, suitable for asset tracking, remote sensing, and outdoor IoT deployments.
Q: Can the Mesh Node T096 run on battery power alone?
A: Yes. The board features an integrated lithium battery management system that handles charge and discharge management, overcharge protection, battery level detection, and automatic switching between USB and battery power. It also includes a 1.25-2P solar panel connector, enabling fully autonomous, solar-powered operation in off-grid scenarios.
Q: What is the operating frequency range of the LoRa transceiver?
A: The SX1262 LoRa chip operates across the 863–928 MHz frequency range, covering common LoRa bands used in Europe, Asia, Australia, and other regions. Maximum transmit power is 28±1 dBm, providing excellent long-range communication capability.
