KWS-DC28 Digital Voltmeter Ammeter Wattmeter DC 4–30V 0–12A

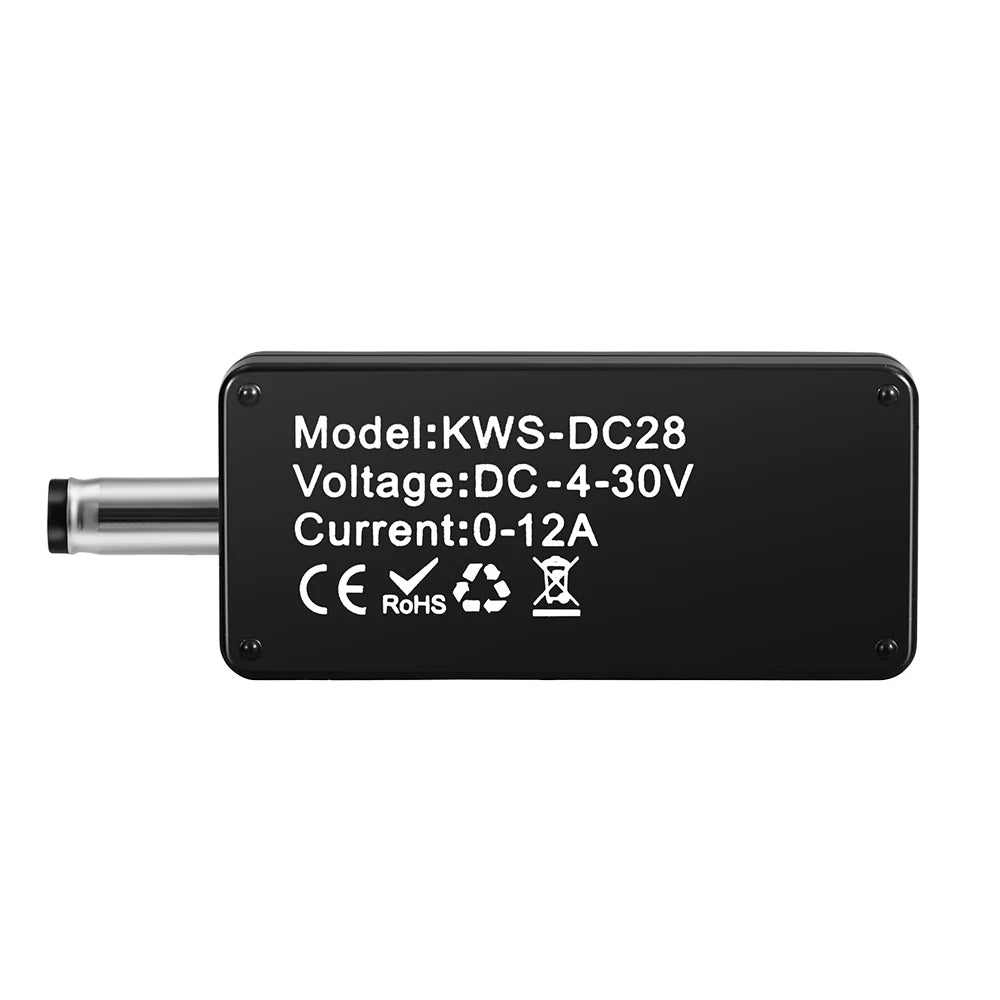

KWS-DC28 0.96" TFT Digital Voltmeter, Ammeter & Wattmeter – DC 4–30V / 0–12A

The KWS-DC28 is a compact, high-precision DC power meter that displays voltage, current, wattage, capacity, energy, and elapsed time all on a single vivid 0.96-inch TFT colour screen. Whether you're testing a phone charger, checking a power supply, or monitoring DC-powered equipment, this all-in-one tester delivers fast, accurate, real-time readings in a pocket-sized form factor.

CE and RoHS certified. Made in Mainland China.

Key Features

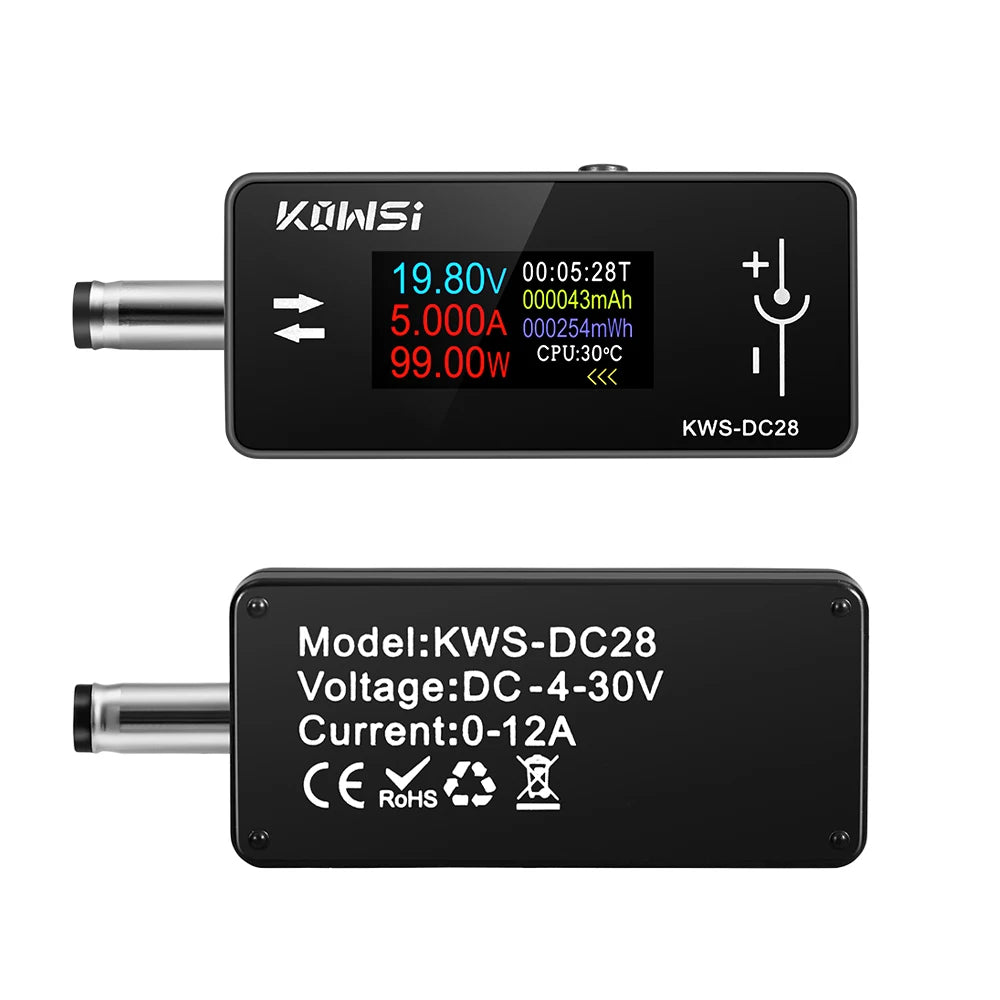

• 0.96" TFT High-Definition Display – Crisp, colour readout of multiple metrics simultaneously for at-a-glance monitoring.
• Multi-Parameter Measurement – Measures DC voltage (4–30V), current (0–12A), power (0–360W), capacity (0–666,666mAh), energy (0–999,999mWh), and runtime (0–99 hours).

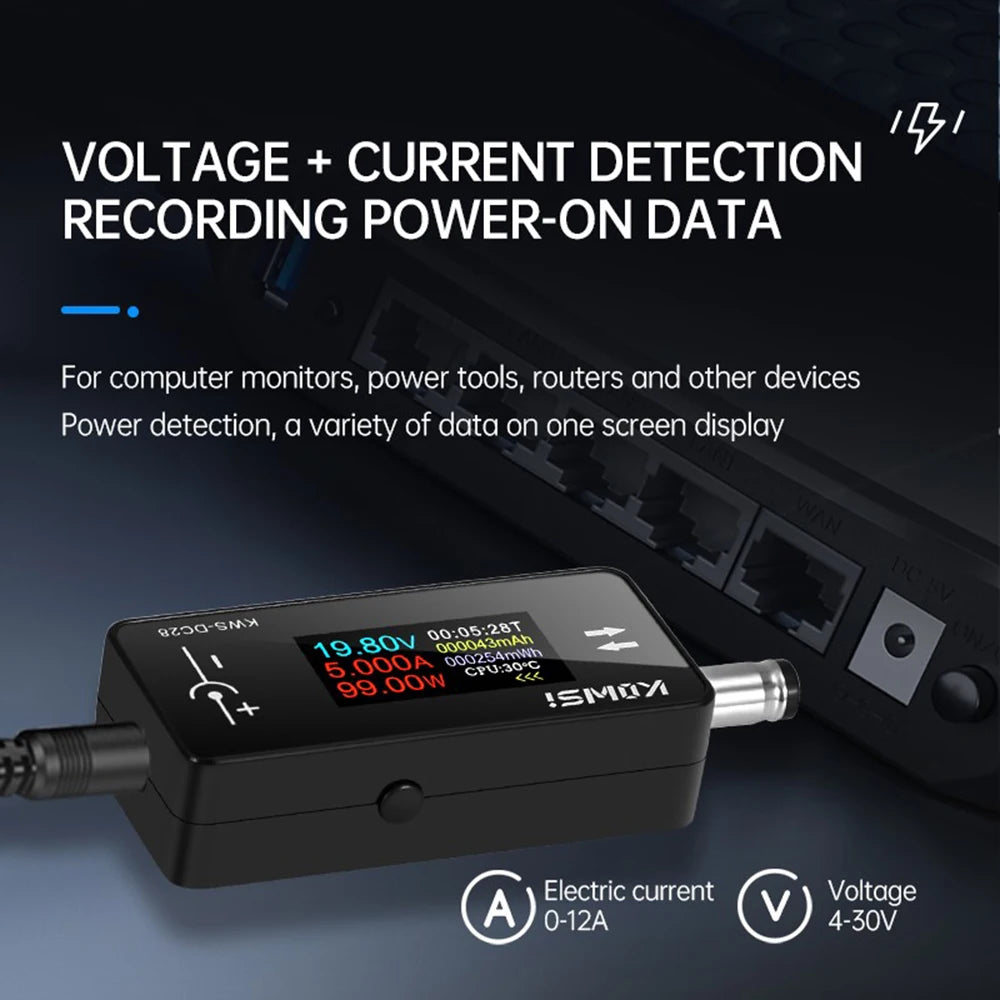

• Power-On Data Logging – Automatically logs readings from the moment power is applied, capturing peak power, maximum current, and highest voltage per session.
• Bidirectional Current Detection – Powered by high-precision sensing chips that support bidirectional current measurement for versatile testing scenarios.

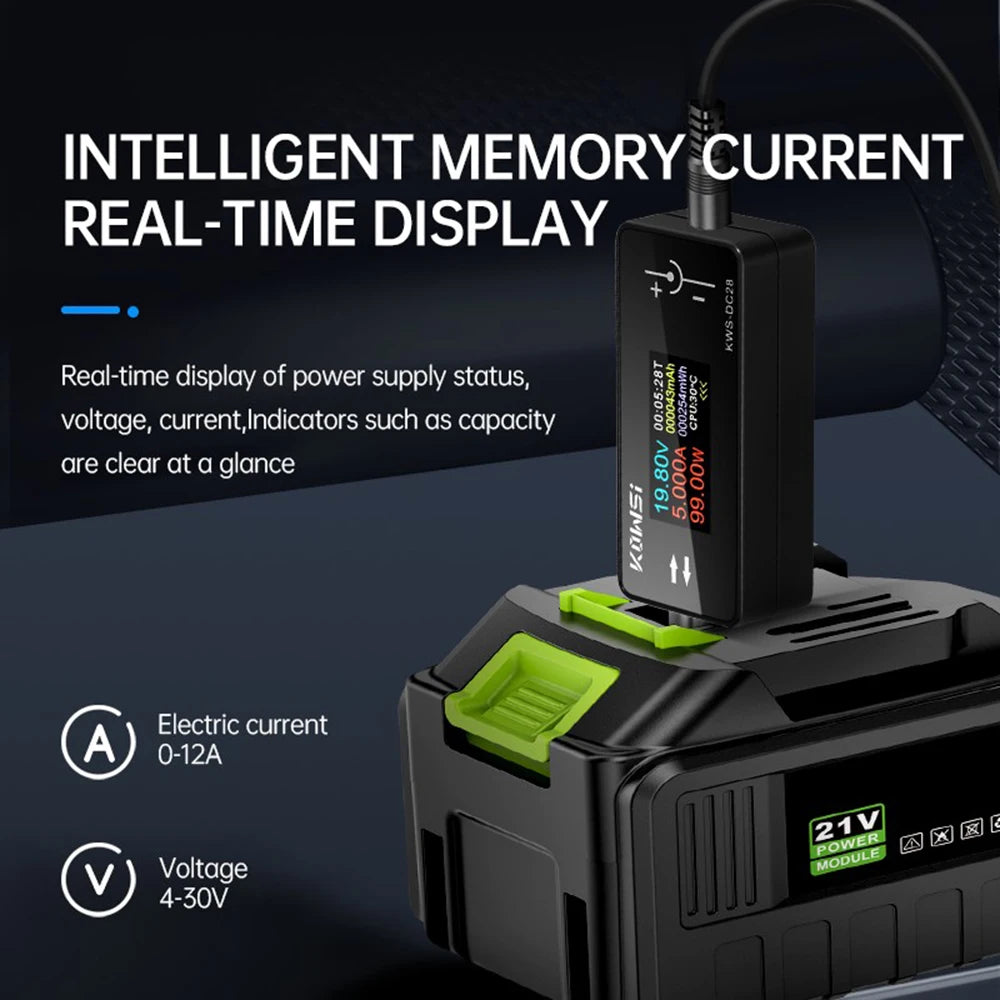

• Intelligent Current Memory – Instantly visualises real-time power status, voltage, current, and capacity so you always know what's happening in your circuit.
• One-Click Page Switching – Single-click to cycle through display pages; double-click to toggle screen orientation for easy reading in any mounting position.

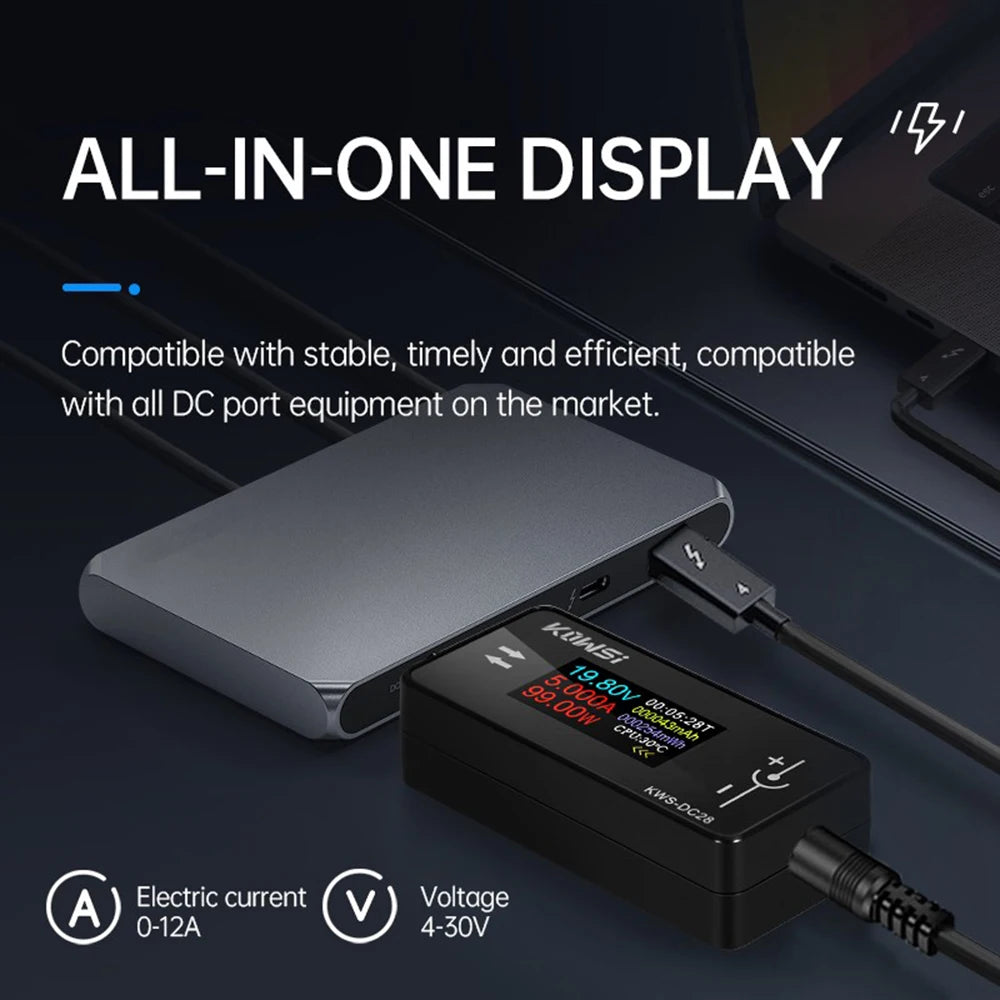

• Wide Compatibility – Works with computer monitors, power tools, routers, mobile phone chargers, DC power supplies, and other DC port devices.
• Compact & Durable – Measures just 60 × 20 × 12mm, making it ideal for benchtop use, in-line installation, or portable field testing.
• CE & RoHS Certified – Meets international safety and environmental standards. No high-concern chemicals.

Technical Specifications

What's in the Box?

• KWS-DC28 Digital Power Tester × 1

You May Also Like

Explore more products in our store:

• Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
• B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What devices is the KWS-DC28 digital wattmeter compatible with?

A: The KWS-DC28 is compatible with any DC-powered device operating within DC 4–30V and up to 12A, including mobile phone chargers, computer monitors, routers, DC power supplies, power tools, LED lighting, and battery-powered systems. It works with standard DC connector ports for stable, reliable in-line measurement.

Q: Does the KWS-DC28 voltmeter log data automatically?

A: Yes. The KWS-DC28 features automatic power-on data logging. As soon as power is applied, the device begins recording readings and tracks peak power, maximum current, and highest voltage for that session — no manual setup required. All data is displayed in real time on the 0.96" TFT screen.

Q: How do I switch between display pages or change screen orientation on the KWS-DC28?

A: It's simple — press the button once to cycle through the available display pages, or double-click to toggle between portrait and landscape screen orientation. This makes the KWS-DC28 easy to read whether it is mounted horizontally, vertically, or held in hand.

Q: Is the KWS-DC28 power meter certified for safety and environmental compliance?

A: Yes. The KWS-DC28 holds both CE and RoHS certifications, confirming it meets European safety standards and is free from high-concern chemicals, making it a responsible choice for professional and DIY electrical testing applications.
