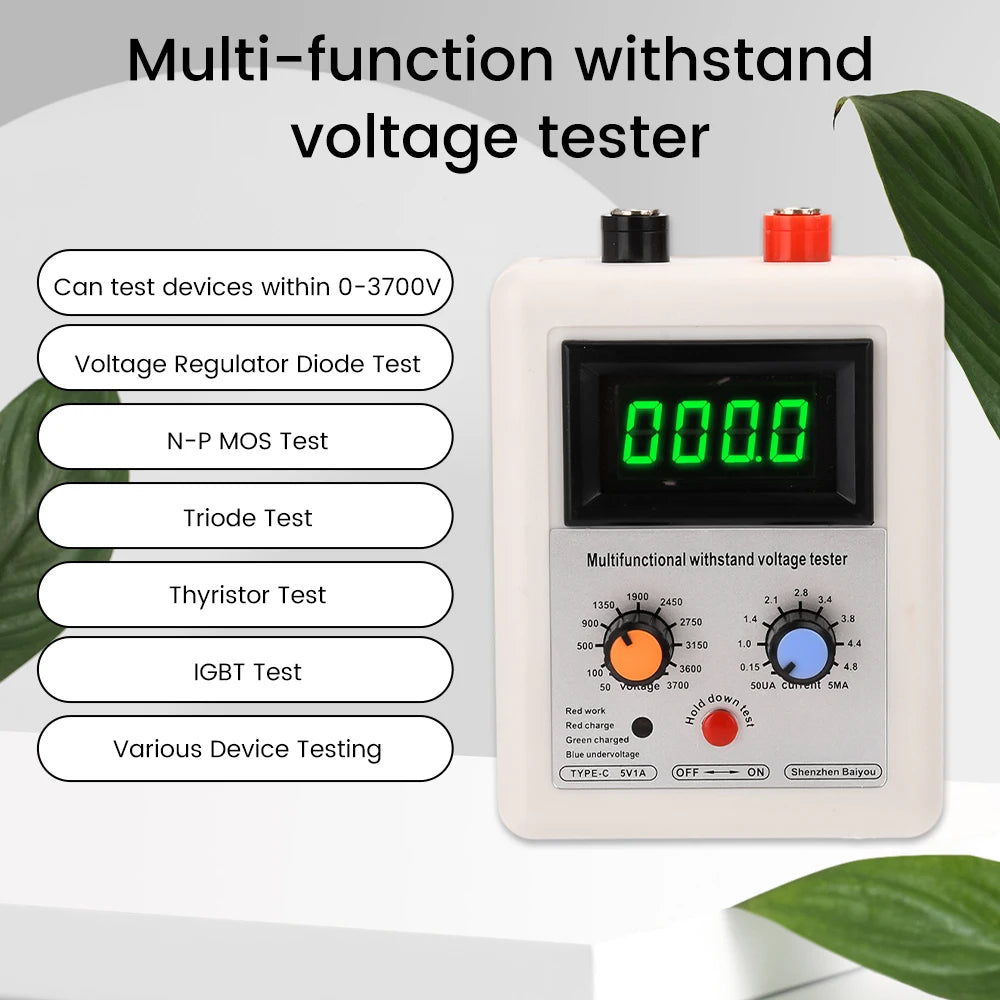

The Gaqqee IGBT Voltage Transistor Tester is a high-precision, portable instrument engineered for electronics engineers, technicians, and serious hobbyists. With a wide adjustable DC output range of 50 V to 3,700 V and a selectable output current of 50 µA to 5 mA, this tester gives you full control when characterizing semiconductors, verifying insulation integrity, and measuring breakdown thresholds across a broad range of electronic components.
Key Features
- Wide Voltage Range: Adjustable DC output from 50 V up to 3,700 V — ideal for both low- and high-voltage component evaluation.
- Dual Output Modes: Switch seamlessly between constant voltage and constant current output to suit your testing requirements.
- High Display Accuracy: 0.3% voltage display accuracy; resolution of 0.1 V below 100 V and 1 V above 100 V for precise readings every time.
- Broad Component Compatibility: Measures breakdown voltage of NMOS, PMOS, IGBTs, bipolar transistors, unidirectional thyristors, Zener diodes, LEDs, rectifier bridges, varistors, ceramic gas discharge tubes, and electrolytic capacitors.
- Insulation Voltage Testing: Verify insulation integrity between terminals of switches, push-buttons, and connectors, as well as between windings in motors, power-frequency transformers, high-frequency transformers — phase-to-phase and casing-to-core.
- Data Record Function: Onboard data-recording capability keeps your measurement history accessible for analysis and documentation.
- Built-in Safety Protections: Over-temperature cut-off at 80 °C (blue indicator light) and low-battery alert when voltage drops below 3.3 V keep you and your components safe.

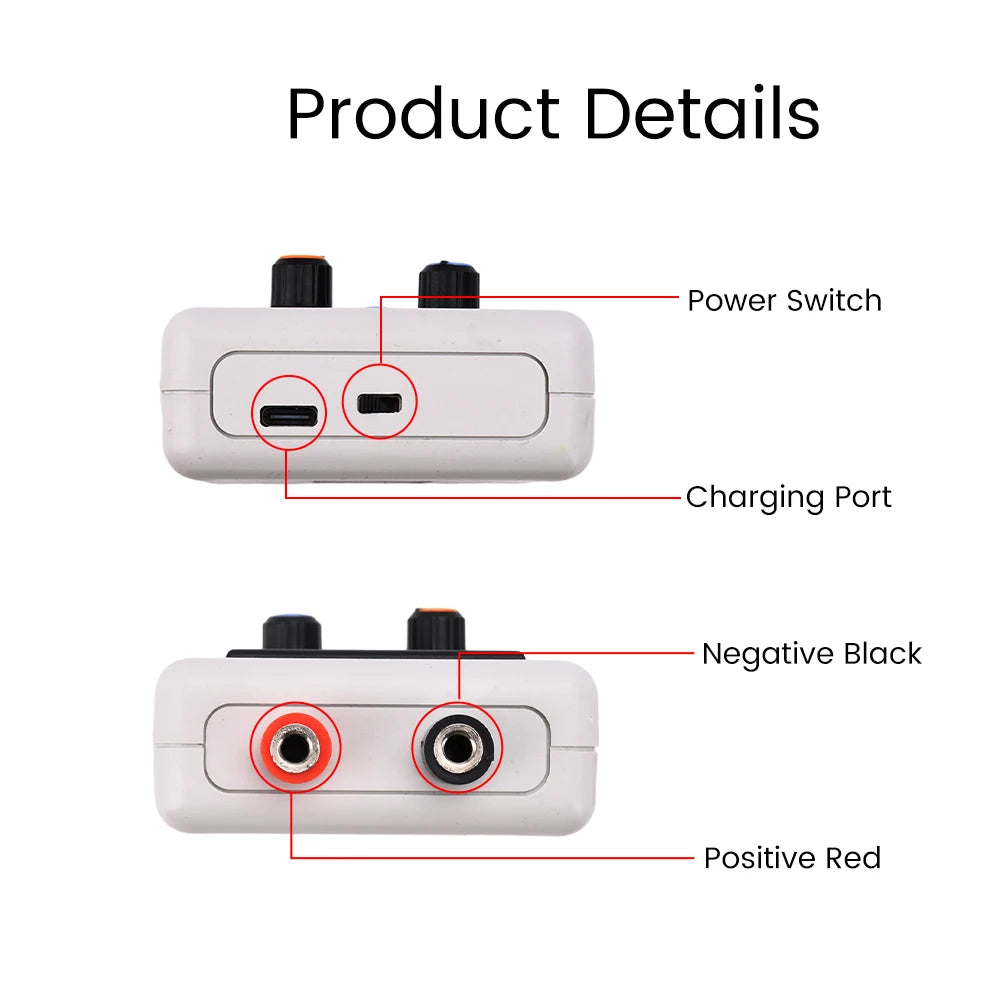

- Rechargeable & Portable: 700 mAh lithium battery charged via USB Type-C (compatible with any 5 V/1 A smartphone charger); red = charging, green = fully charged.
- CE Certified: Meets CE safety standards for reliable, compliant operation.
- Compact Form Factor: 98 × 70 × 37 mm — small enough for bench work or field use.
Full Specifications
| Adjustable Output Voltage | DC 50 V – 3,700 V |
| Adjustable Output Current | 50 µA – 5 mA |
| Voltage Display Accuracy | 0.3% |
| Output Voltage Error | ±50 V (actual output 3,650 V – 3,750 V at maximum) |
| Output Modes | Constant Voltage / Constant Current |
| Voltmeter Resolution | 0.1 V (≤100 V) / 1 V (>100 V) |
| Display Type | Digital |
| Battery Capacity | 700 mAh lithium battery |
| Charging Current | 550 mA |
| Charging Port | USB Type-C |
| Over-Temperature Protection | 80 °C (blue indicator) |
| Dimensions | 98 × 70 × 37 mm |
| Certification | CE |
| Country of Origin | Made in Mainland China |
What's in the Box

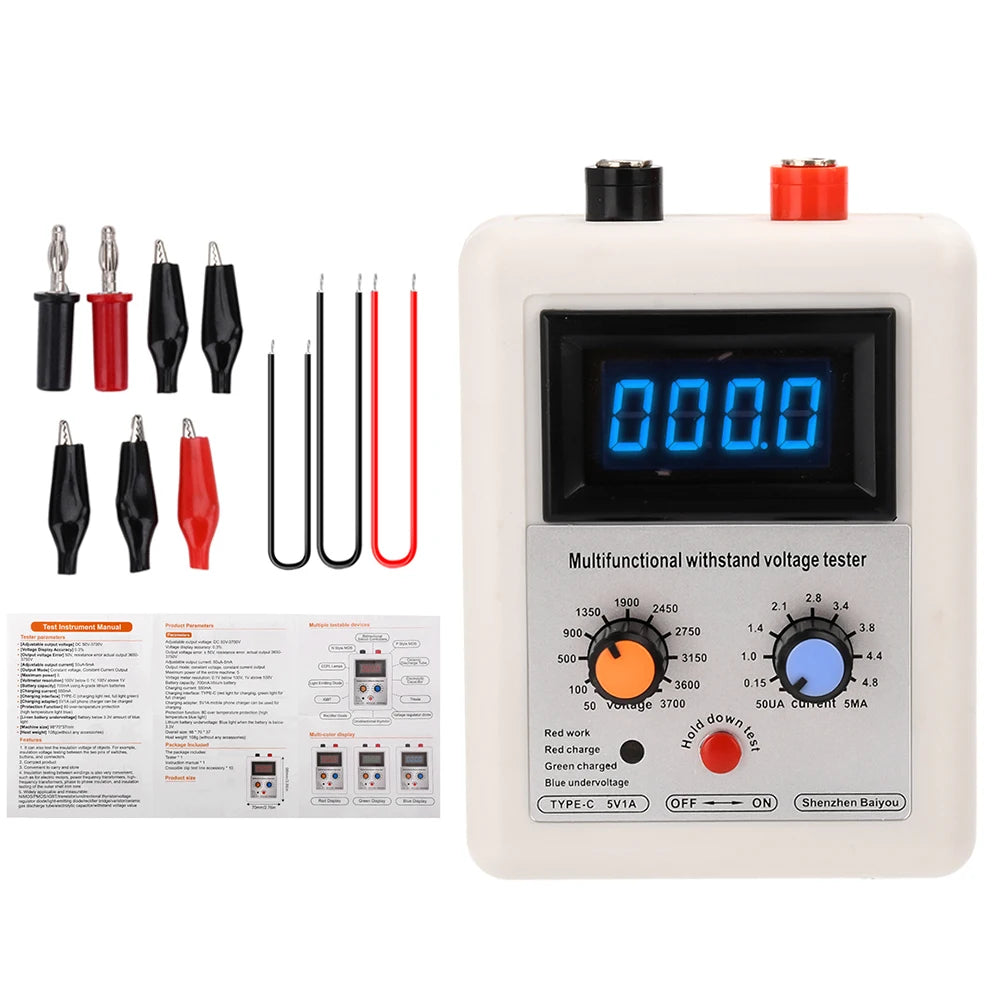

- IGBT Voltage Tester × 1
- Alligator Clip Test Lead Set × 10
- User Manual × 1
