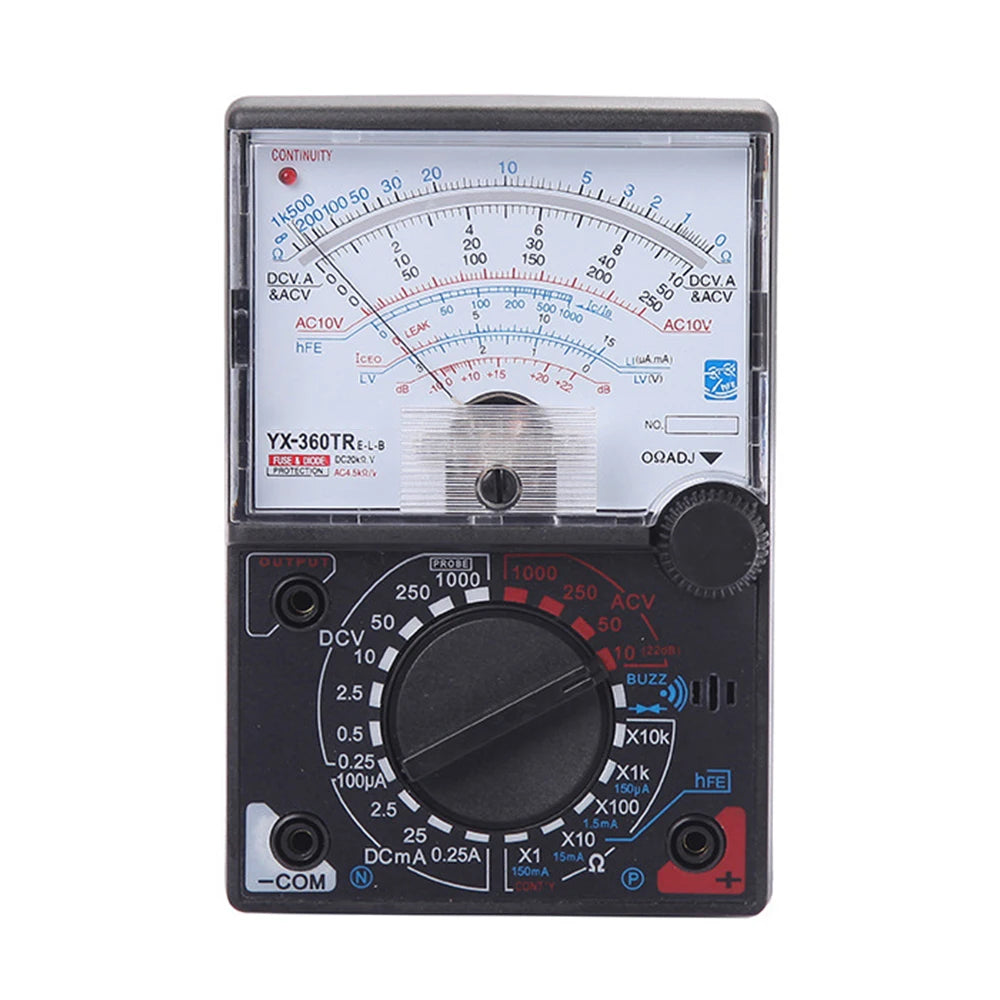

Gaqqee YX-360TRE-L-B Analog Dial Multimeter — Voltmeter, Ammeter & Ohmmeter
The Gaqqee YX-360TRE-L-B is a versatile analog (pointer-display) multimeter built for electricians, hobbyists, students, and DIY enthusiasts who need a reliable, easy-to-read instrument on the bench or in the field. With an 80 mm scale length, high-contrast needle display, built-in LED indicator light, and audible buzzer for continuity checks, this meter gives you fast, confident readings across a wide range of electrical measurements.
Key Features
- Multi-function measurement: Measures DC & AC voltage, DC current, resistance, capacitance, frequency, dB levels, and transistor HFE — all in one compact unit.
- Large pointer display: 80 mm scale length with full-symbol markings for clear, unambiguous readings at a glance.
- Continuity check: LED indicator light plus audible buzzer instantly confirm circuit continuity without needing to watch the needle.
- Data hold function: Locks the reading on-screen so you can record measurements hands-free.
- Manual range selection: Full control over measurement ranges for precision work.
- Transistor HFE test: Built-in TR connector supports HFE measurements from 0–1000.
- CE & RoHS certified — meets European safety and environmental standards.
- Made in Mainland China.
Full Specifications
| Model | YX-360TRE-L-B |
| Colour | Black |

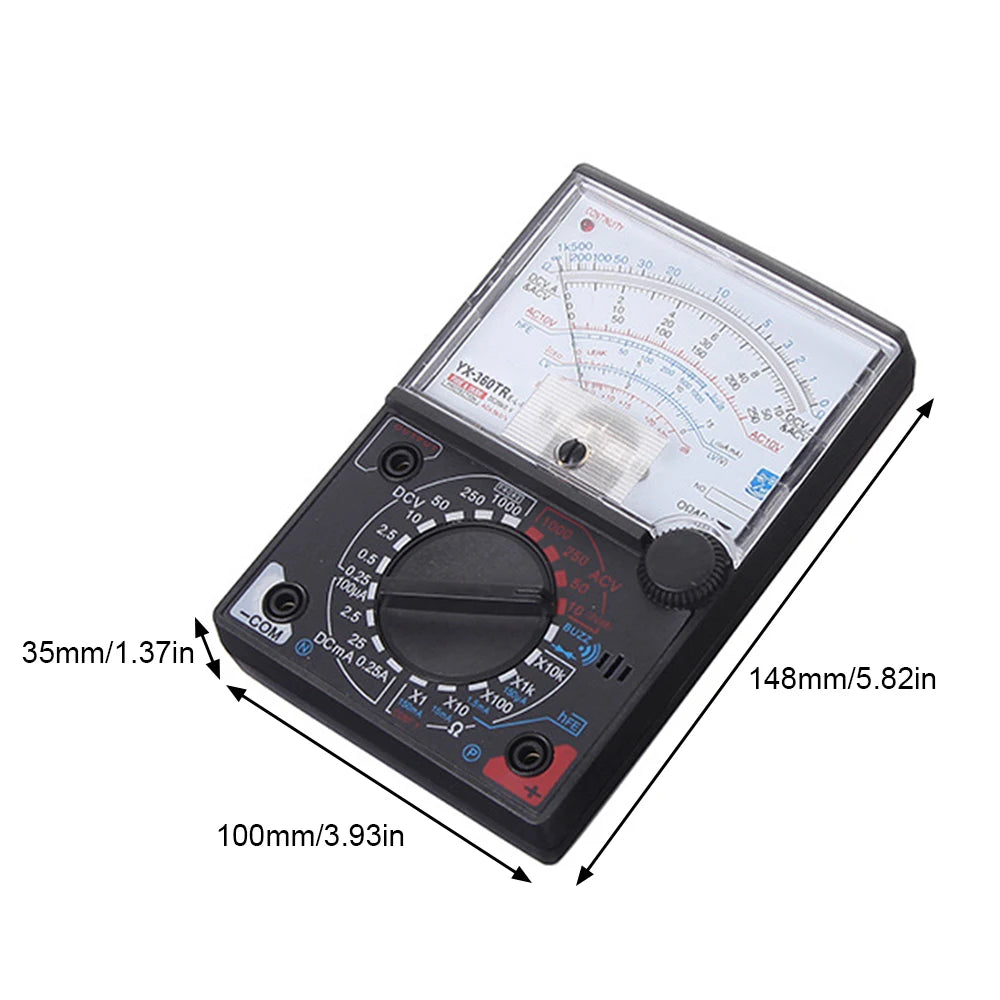

| Dimensions | 148 × 100 × 35 mm |
| Display Type | Analog Pointer (80 mm scale) |
| Operating Mode | Manual Range |
| Operating Temperature | 0 – 50 °C |
| DC Voltage | 0.25 / 0.5 / 10 / 50 / 250 V / 1000 V ±4% f.S |
| AC Voltage | 10 / 50 / 250 V / 1000 V ±5% f.S |
| DC Current (DCA) | 100 µA / 2.5 mA / 25 mA / 250 mA ±4% f.S |
| Resistance (Ohms) | ×1 / ×10 / ×100 / ×1000 / ×10000 Ω |
| dB Range | −10 to +22 dB |
| L1 Current | 150 µA / 1.5 mA / 15 mA / 150 mA |
| HFE | 0 – 1000 (via TR connector) |
| Power Supply | R6 (1.5 V) × 2 + 622F 9 V × 1 (batteries not included) |
| Certifications | CE, RoHS |
What's in the Box
- Gaqqee YX-360TRE-L-B Dial Multimeter × 1 (batteries not included)
- Test leads × 1 pair
- Instruction manual × 1
Related Products You May Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does the Gaqqee YX-360TRE-L-B dial multimeter come with batteries?
A: No, batteries are not included. The meter requires two R6 (1.5 V) batteries and one 622F (9 V) battery, all of which are standard sizes available at most hardware or electronics stores.
Q: What types of measurements can this analog multimeter perform?
A: The YX-360TRE-L-B measures DC and AC voltage, DC current, resistance (ohms), capacitance, frequency, dB levels, and transistor HFE gain. It also features an LED indicator and audible buzzer for continuity testing.
Q: How does the buzzer function work on this multimeter?
A: When the meter is set to the continuity range, an audible buzzer and an LED indicator light activate whenever a closed circuit is detected — allowing you to confirm electrical connections quickly without having to watch the needle, even in low-light conditions.
Q: Is this multimeter suitable for beginners and DIY projects?
A: Yes. The large 80 mm analog scale, clear full-symbol display, and straightforward manual-range dial make the YX-360TRE-L-B approachable for beginners while still offering the measurement range and HFE transistor testing that experienced technicians appreciate.
