Gaqqee Wall Scanner – Stud, Metal & AC Wire Detector
Gaqqee Wall Scanner – Stud, Metal & AC Wire Detector
Gaqqee Wall Scanner – Detect Studs, Metal & AC Wiring with Confidence

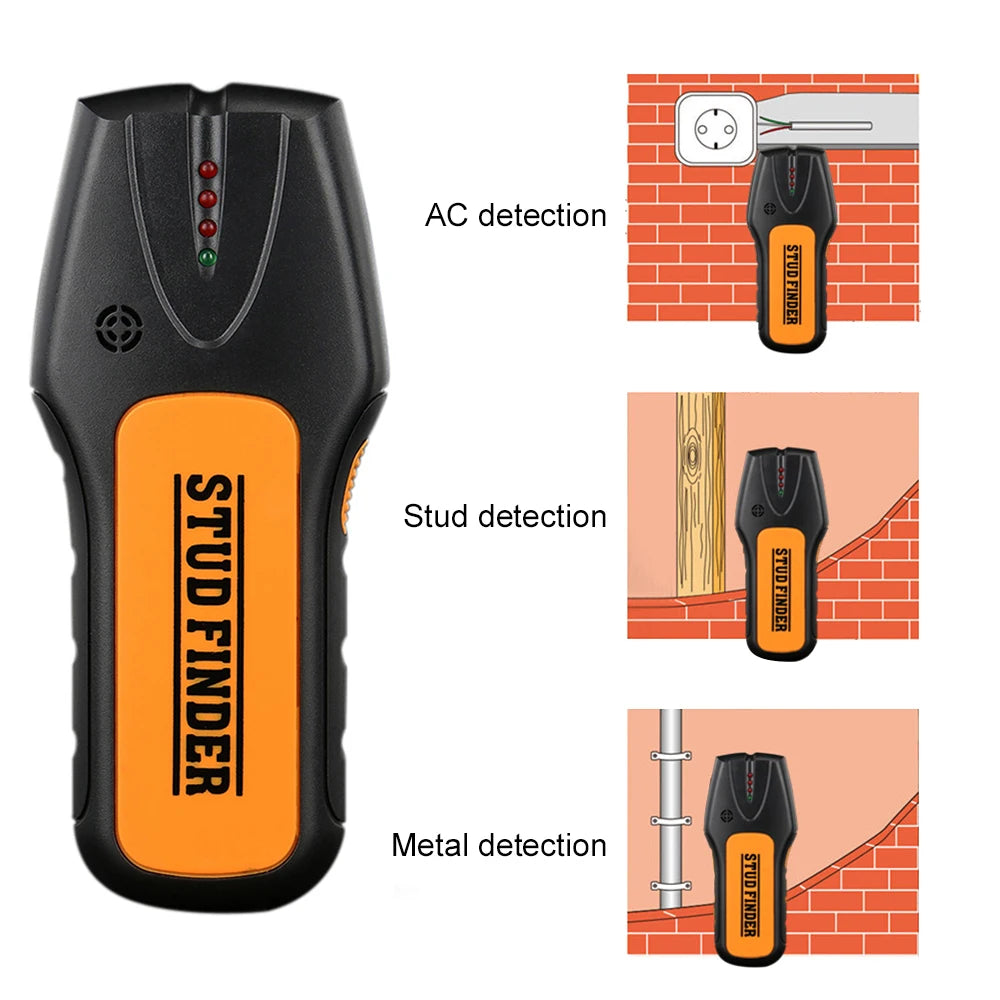

The Gaqqee Wall-Mounted Metal Detector & Wall Scanner is an essential DIY and trade tool for anyone undertaking interior structural work. Whether you're hanging shelves, running cables, or planning a renovation, this compact scanner helps you quickly locate metal studs, timber framing, and live AC wiring hidden beneath walls, floors, and ceilings — before you drill or cut.
Powered by a standard 9V battery (not included), the scanner uses frequency-variation sensing to detect changes in material density beneath the surface. LED indicator lights illuminate sequentially as you approach a target, and an audible alarm alerts you the moment a hidden object is found.
Made in Mainland China.
Key Features
- Multi-material detection: Locates metal, timber studs, and AC wiring concealed within walls and surfaces.
- Visual & audible alerts: Sequential red LED indicators plus a clear beep alarm guide you precisely to hidden objects.
- Detection depth: Up to 19 mm (approximately ¾ inch) beneath a uniform surface, with a ±3 mm tolerance.
- Compact ergonomic design: Measures just 145 × 62 × 25 mm — fits comfortably in one hand for extended use.
- Simple two-step process: Easy sampling and scanning procedure makes it suitable for beginners and professionals alike.
- CE & RoHS certified: Meets European safety and environmental standards.
- Battery-powered convenience: Runs on a single 6F22 9V battery for portable, cord-free operation.
How to Use
Step 1 — Sampling
Place the scanner flat against the surface and press the power switch. The first red and green indicator lights will illuminate, accompanied by a single 'beep', then the red light extinguishes — confirming successful calibration. If the red light stays on and emits a short 'beep-beep', move to a clear area of the surface and retry, as interference or an object already present may be affecting calibration.
Step 2 — Scanning
Hold the power switch depressed and glide the scanner slowly along the surface. Red LEDs will illuminate one by one as you approach a hidden object. When all LEDs are lit and the 'beep-beep' alarm sounds, mark the location with a pencil. Release the switch, reposition, and scan from the opposite direction to confirm the exact centre of the hidden object. Repeat several times for reliable results.
Technical Specifications
| Power Supply | 6F22 9V battery (not included) |
| Dimensions | 145 × 62 × 25 mm |
| Max Detection Depth | 19 mm beneath uniform surface |
| Detection Tolerance | ±3 mm |
| Min Target Surface Area | 1,200 mm² |
| Display | LED indicator lights (no LCD screen) |
| Certification | CE, RoHS |
| Origin | Mainland China |
What's in the Box
- Gaqqee Wall Scanner × 1 (battery not included)
- Instruction Manual × 1
You May Also Like
Upgrade your toolkit and browse more of our product range:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What materials can the Gaqqee wall scanner detect?
A: The Gaqqee wall scanner is designed to detect metal objects (such as metal studs, nails, and pipes), timber/wooden studs, and live AC wiring hidden behind walls, floors, and ceilings. It detects any foreign object that creates a change in material density beneath the scanned surface.
Q: How deep can the wall scanner detect objects?
A: The scanner can detect objects up to 19 mm (approximately ¾ inch) beneath a uniform surface, with a detection range tolerance of ±3 mm. The target object must have a minimum surface area of 1,200 mm² to be reliably detected.
Q: Does the scanner come with a battery?
A: No, the scanner requires one standard 6F22 9V battery for operation, which is not included in the package. Please ensure you have a 9V battery on hand before use.
Q: Is the Gaqqee wall scanner suitable for beginners?
A: Yes. The two-step sampling and scanning process is straightforward, and the sequential LED indicators combined with the audible alarm make it easy to pinpoint hidden objects even for first-time users. The included instruction manual walks you through the full procedure.
