Gaqqee ZFX-1003CC / ZFX-1004CC Type-C Bidirectional Charging Tester

Take full control of your USB-C charging setup with the Gaqqee ZFX-1003CC / ZFX-1004CC Type-C Bidirectional Current Charging Tester. Whether you're evaluating chargers, power banks, cables, or other digital peripherals, this compact inline meter gives you instant, high-precision readings of voltage, current, power, capacity, energy, and more — all on a vivid TFT display. Made in Mainland China.

Choose Your Model

ZFX-1004CC — 0.96-inch TFT Display

Wide-angle 0.96" TFT display — crisp, clear readings even in low-light environments
Bidirectional current measurement — automatically detects and displays operating current even if the connector is inserted in reverse
All-in-one monitoring — simultaneously tracks voltage, current, power, capacity (mAh), energy (mWh), and elapsed time
One-button navigation — single-click to cycle screens; double-click to rotate display orientation 180°
Compatible with CE & RoHS-certified Type-C digital devices

ZFX-1004CC Specifications

Voltage	DC 4–30 V (Resolution: 0.002 V)
Current	0–12 A
Power	0–195 W
Capacity	0–999,999 mAh
Energy	0–999,999 mWh
Timing	0–99 hours
Display	0.96-inch TFT
Interface	Type-C
Dimensions	48.5 × 20.3 × 10 mm

Package Contents: Tester × 1 | User Manual × 1

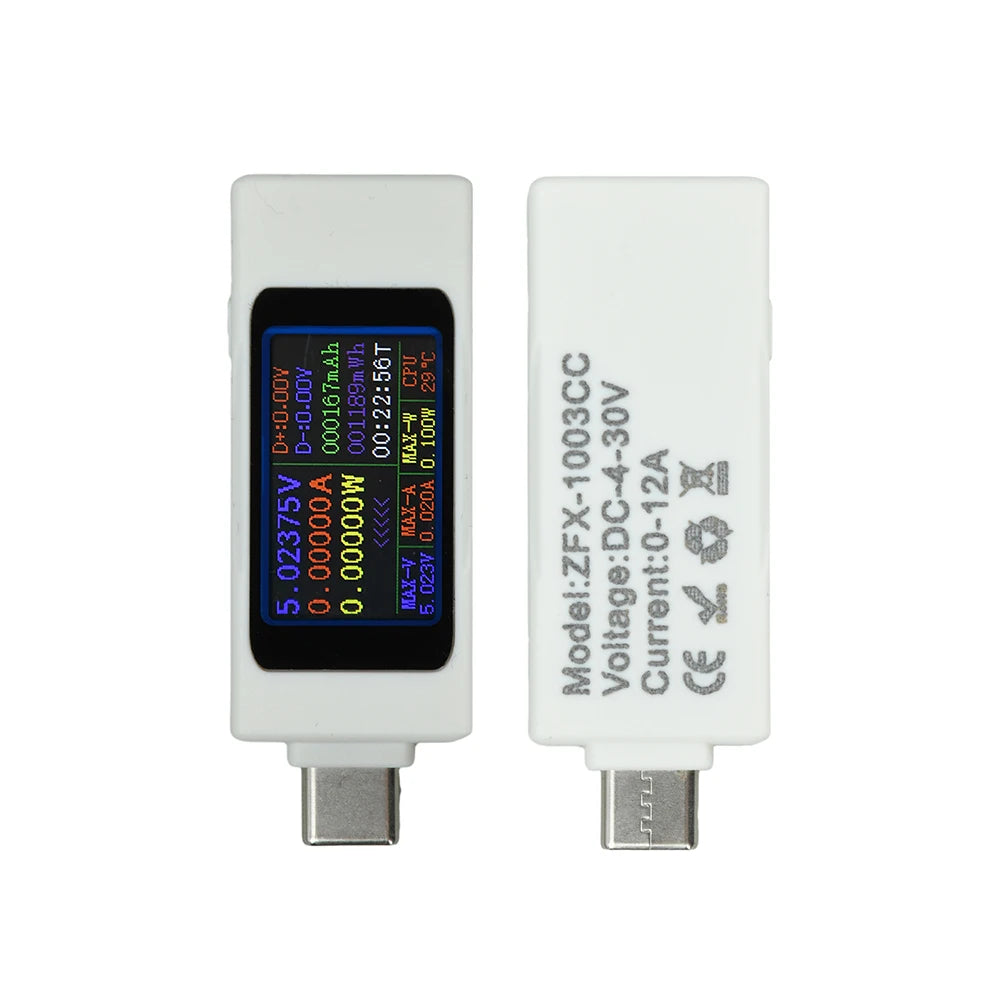

ZFX-1003CC — 1.06-inch TFT Display

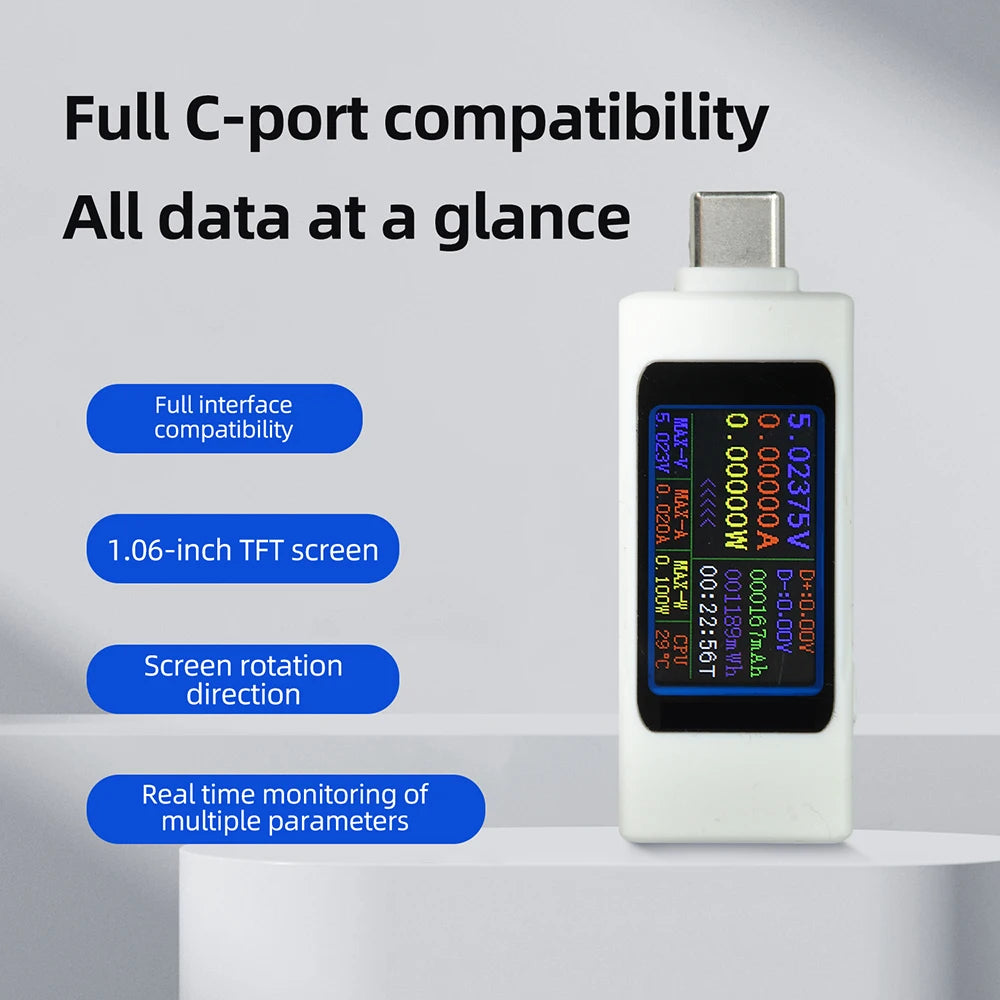

Larger 1.06" HD TFT display — brighter and sharper for more accurate at-a-glance readings
Comprehensive parameter monitoring — voltage, current, power, capacity, energy, timing, and CPU temperature in real time
Advanced data recording — logs single-cycle peak power, maximum voltage, maximum current, and bidirectional current data

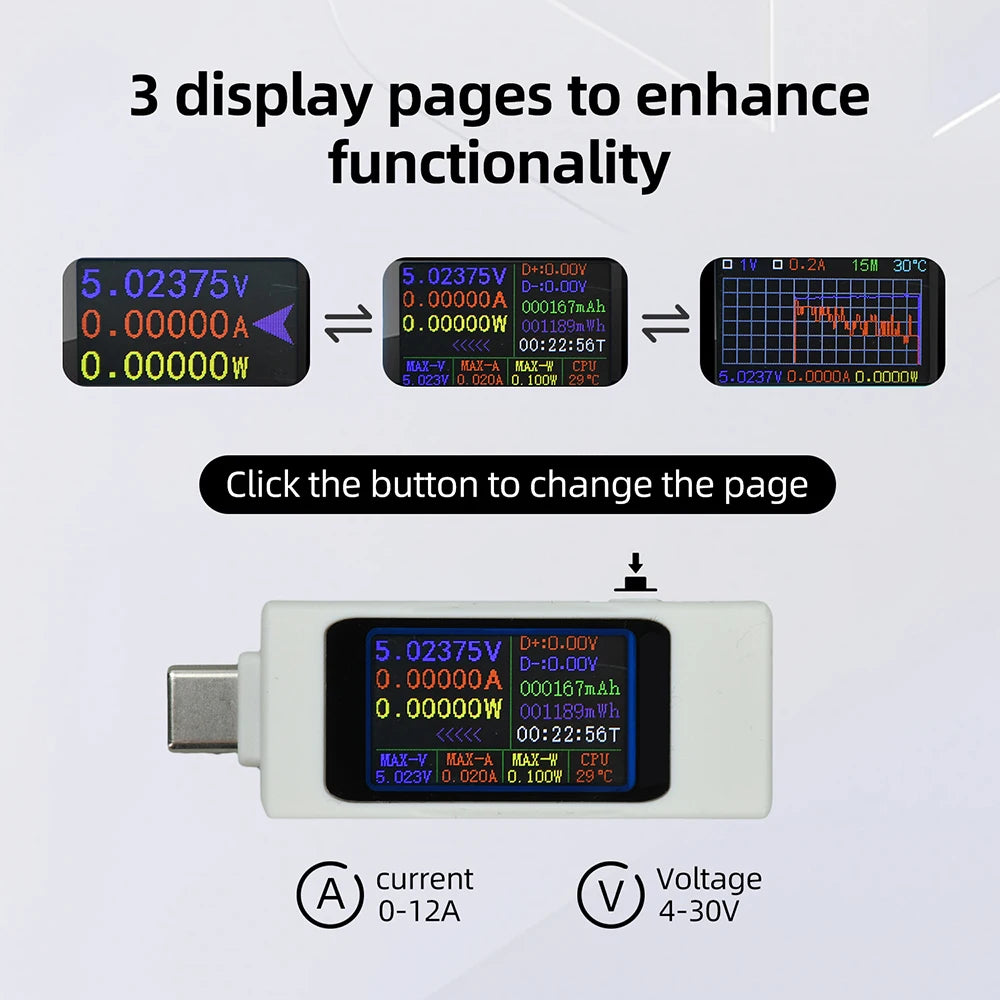

Multi-screen display — view multiple charging parameters on one screen to meet diverse testing requirements
Universal compatibility — works with all standard Type-C interfaces including chargers, power banks, hubs, and cables

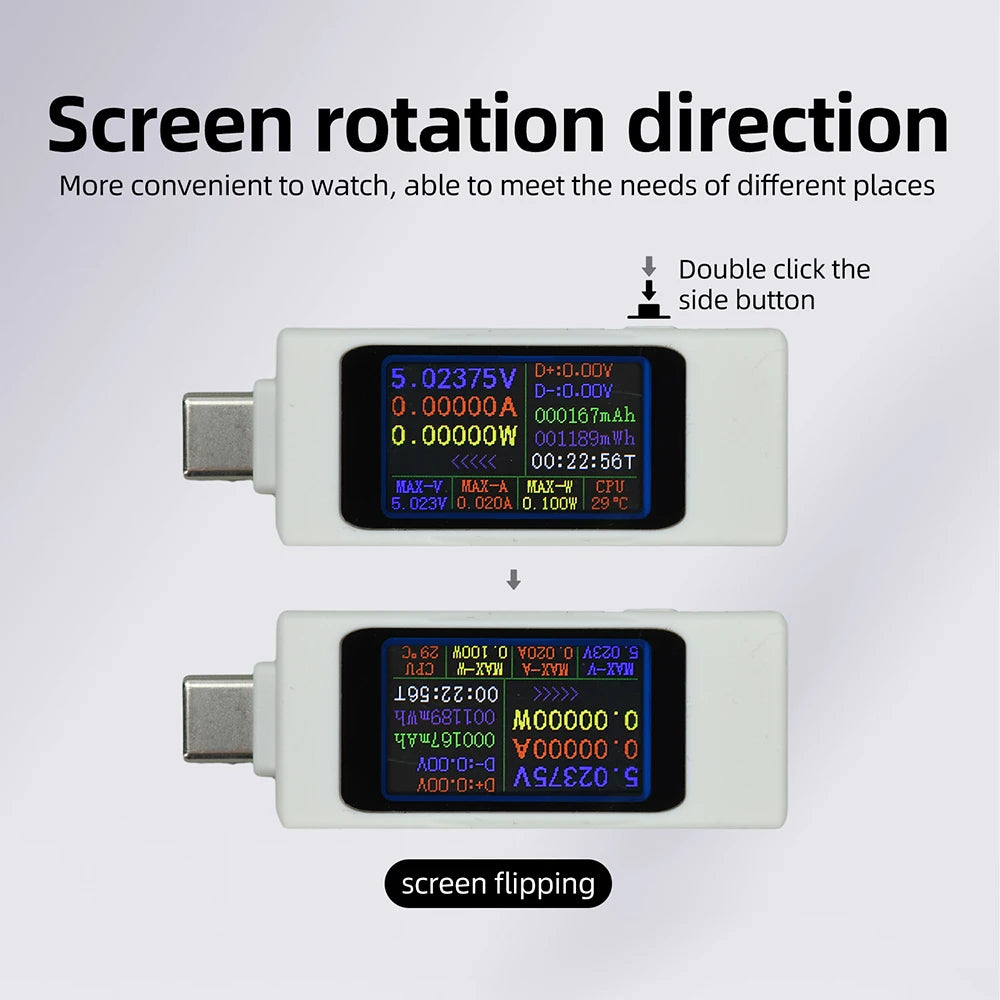

Single-click to switch pages; double-click to rotate orientation for comfortable use in any position

ZFX-1003CC Specifications

Voltage	DC 4–30 V
Current	0–6.5 A (peak 12 A)
Power	0–195 W
Capacity	0–666,666 mAh
Energy	0–999,999 mWh
Timing	0–99 hours
Display	1.06-inch TFT
Interface	Type-C
Dimensions	56.5 × 20.5 × 9.3 mm

Package Contents: Tester × 1 | User Manual × 1

Key Features at a Glance

✅ High-precision measurement — CE & RoHS certified for reliability
✅ Bidirectional current testing — measures charge and discharge direction automatically
✅ Compact inline design — plugs directly between your power source and device; no wiring required
✅ Data recording — captures historical and peak values for in-depth analysis
✅ Rotatable display — adapts to any mounting angle or workspace layout

Great For

Verifying charger and cable performance
Testing power bank output and capacity

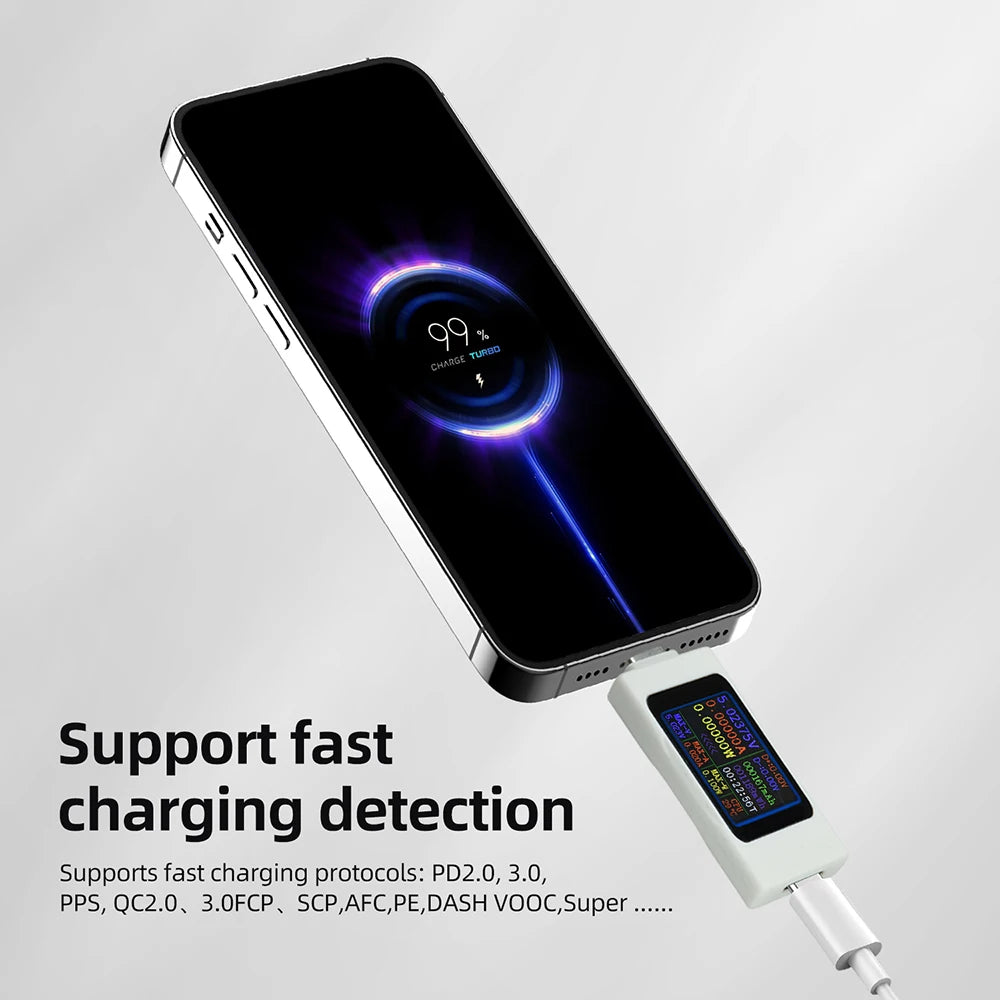

Monitoring fast-charging protocols (e.g., USB-PD, PPS)
DIY electronics projects and bench testing
Quality control and device diagnostics

Frequently Asked Questions

Q: What is the difference between the ZFX-1003CC and ZFX-1004CC charging testers?

A: The main differences are display size and current specification. The ZFX-1004CC features a 0.96-inch TFT display and measures continuous current up to 12 A, while the ZFX-1003CC has a larger 1.06-inch HD TFT display, measures up to 6.5 A continuous (peak 12 A), and additionally monitors CPU temperature. Both models support bidirectional current measurement, data recording, and screen rotation via double-click.

Q: Does the Gaqqee Type-C tester work with fast-charging protocols?

A: Yes. Both models support a DC voltage range of 4–30 V and up to 195 W power monitoring, making them compatible with a wide range of fast-charging protocols such as USB Power Delivery (USB-PD) and PPS. Simply insert the tester inline between your charger and device to monitor voltage, current, and wattage in real time.

Q: Is any additional power source required to operate the tester?

A: No separate battery is required. The tester draws its operating power from the Type-C connection it is testing (DC 4–30 V input). If the connector is inserted in reverse, the device automatically measures and displays its own operating current rather than the line current, ensuring safe and accurate operation.

Q: What data can the tester record and display?

A: Both models display voltage, current, power (watts), capacity (mAh), energy (mWh), and elapsed time. The ZFX-1003CC additionally logs CPU temperature, single-cycle peak power, maximum voltage, and maximum current, making it ideal for more detailed charging analysis and quality control workflows.
