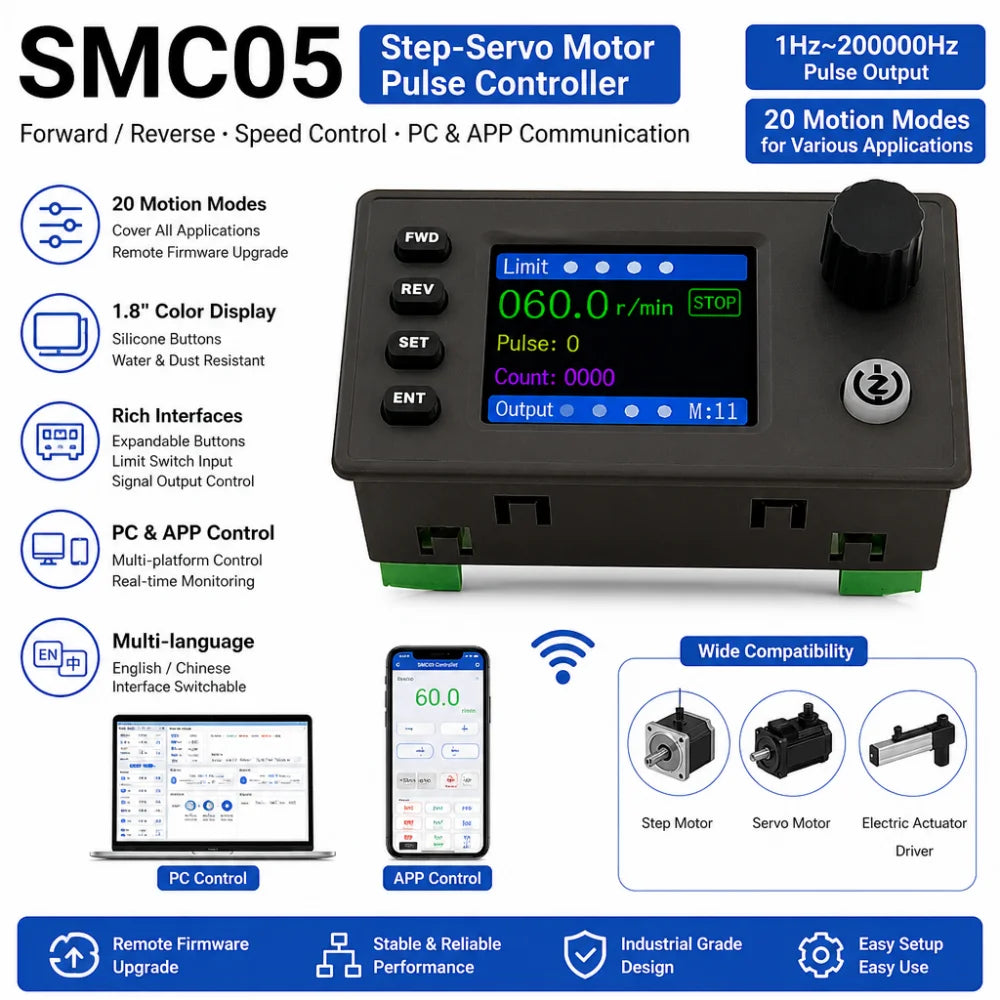

Gaqqee SMC05 Stepper & Servo Motor Pulse Controller
Take full command of your stepper and servo motors with the Gaqqee SMC05 Pulse Controller. Featuring a crisp 1.8-inch colour display, a rugged silicone keypad, and an impressive frequency range of 1 Hz to 200,000 Hz, this controller is built for precision motion control in mechanical equipment, automation systems, and motor tooling applications. CE and RoHS certified for peace of mind.
Made in Mainland China.
Key Features
- 20 Motion Modes + Remote Firmware Updates: Covers virtually every motion control scenario, with support for remote customised firmware updates so your controller always stays current.
- 1.8-Inch HD Colour Screen & Silicone Keypad: A clear, intuitive interface paired with durable, waterproof, and dustproof silicone keys for reliable operation in demanding environments.
- Versatile I/O Interfaces: 4 output channels (up to 500 mA each — suitable for indicator lights and solenoid valves), 4 limit switch inputs, and 3 expansion button inputs for exceptional flexibility.
- Multi-Device Collaborative Control: Supports dual-platform control via host computer software and a mobile app, enabling real-time monitoring and operation from your phone or PC.
- Multi-Protocol Communication: Modbus protocol with support for serial port, Bluetooth, and RS-485 communication — ready to integrate into your existing automation network.
- Bilingual Interface: Freely switch between Chinese and English for greater convenience in any working environment.
- Wide Operating Voltage: Accepts 12–24 V DC input, compatible with a broad range of power supplies and automation setups.
- Robust Operating Range: Functions reliably from -5°C to 60°C (non-condensing), suitable for workshop and industrial environments.
Technical Specifications
| Model | ZK-SMC05 |
| Operating Voltage | 12–24 V DC |
| Motor Pulse Frequency | 1 Hz – 200,000 Hz |
| Output Signals | 4 channels, 0 V output (collector-output configuration) |
| Output Drive Current | Up to 500 mA per channel |
| Input Signals | 4 limit switch inputs, 3 expansion button interfaces |
| Display | 1.8-inch colour screen |
| Communication | Modbus protocol; serial port / Bluetooth / RS-485 |
| Operating Environment | -5°C to 60°C (non-condensing) |

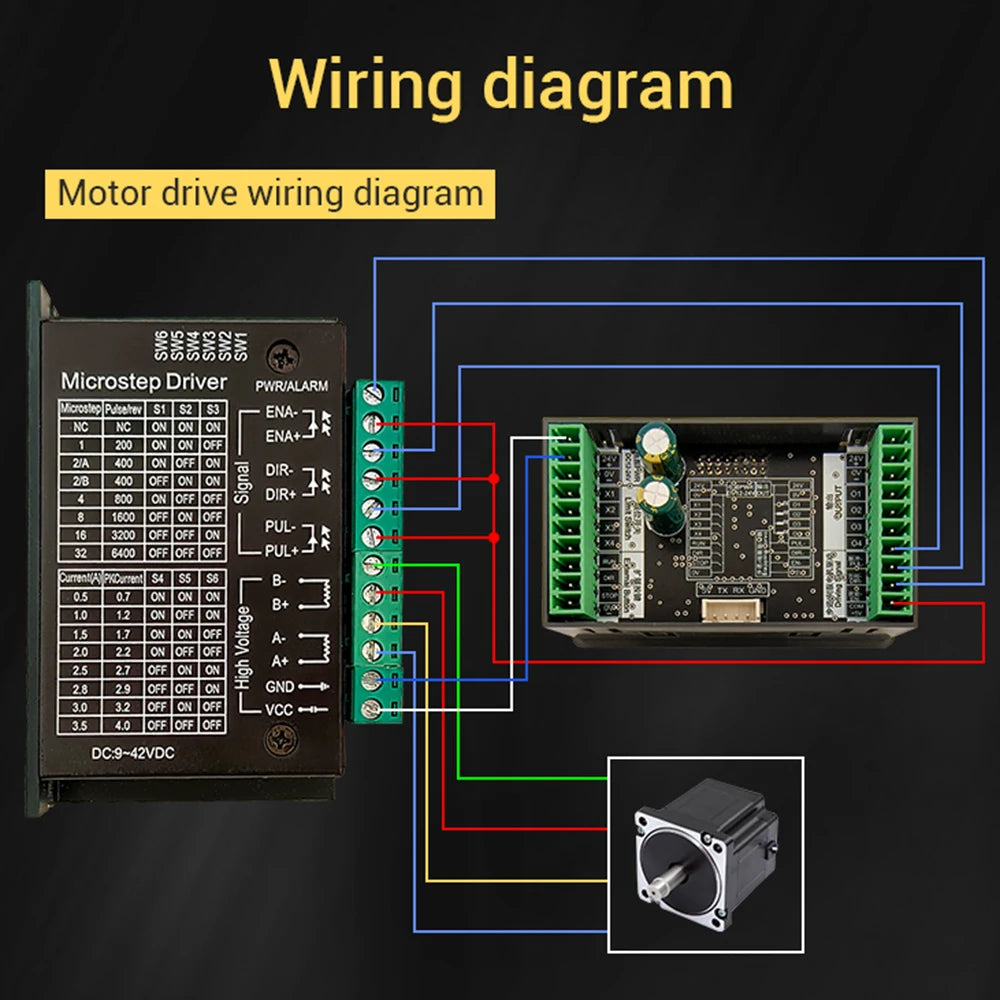

| Pulse Drive Output | Common anode (5 V) connection, 0 V pulse drive |
| Certification | CE, RoHS |
| Battery Included | No |
What's in the Box
- SMC05 Stepper Servo Motor Pulse Controller × 1
Ideal Applications
The SMC05 is designed for engineers, makers, and automation professionals working with stepper or servo motor-driven systems, including:
- Industrial mechanical equipment
- CNC and automated tooling
- Conveyor and positioning systems
- Custom automation control projects
Looking for complementary products? Check out the Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules for post-project recovery support, or explore our range of B&U 29mm Sinking Minnow Jerkbait Lure for outdoor adventures when the workshop day is done.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What types of motors is the SMC05 Pulse Controller compatible with?
A: The Gaqqee SMC05 is compatible with both stepper motors and servo motors. It uses a common anode (5 V) connection with 0 V pulse drive output, making it suitable for a wide range of stepper and servo motor drivers used in automation and mechanical equipment.
Q: What communication protocols does the SMC05 support?
A: The SMC05 supports the Modbus communication protocol and is compatible with serial port (UART), Bluetooth, and RS-485 interfaces. This allows seamless integration with host computer software, mobile apps, and existing industrial automation networks.
Q: Can the SMC05 be controlled remotely from a smartphone?
A: Yes. The SMC05 supports dual-platform control via a host computer and a dedicated mobile app. You can monitor motor status and adjust settings in real time from both a PC and a smartphone, making it highly convenient for modern automation setups.
Q: What is the pulse frequency range of the SMC05 controller?
A: The SMC05 provides a motor pulse frequency range of 1 Hz to 200,000 Hz, giving you precise control over motor speed from ultra-slow positioning movements up to high-speed operation.
Q: Is the SMC05 suitable for outdoor or harsh environments?
A: The SMC05 is rated for operating temperatures between -5°C and 60°C (non-condensing). The silicone keypad is waterproof and dustproof, providing added durability in workshop and light industrial environments. It is CE and RoHS certified.
