Gaqqee MDL150 Multifunction Discharge Tester — Precision Battery & Load Testing
The Gaqqee MDL150 is a professional-grade, CNC electronic load tester designed for accurate battery capacity measurement, discharge testing, and electronic load analysis. Featuring a vivid 2.4-inch full-color display, three operating modes, and quadruple safety protection, this unit delivers reliable performance for hobbyists, technicians, and engineers alike. Made in Mainland China.
Key Features
- 2.4-Inch HD Color Display: Presents voltage, current, power, capacity (Ah), energy (Wh), and elapsed time at a glance with exceptional clarity and brightness control.
- Three Operating Modes: Switch seamlessly between CC (Constant Current), CP (Constant Power), and CR (Constant Resistance) modes for versatile load testing scenarios.
- Wide Load Range: Handles DC 0–150V, 0–20A, and 0–150W (max 60W at 120V and above), with a maximum energy measurement of 99,999.9 Wh and capacity measurement of 99,999.9 Ah.
- Quadruple Safety Protection: Automatic overvoltage, overcurrent, overpower, and overtemperature protection (triggers at 75°C internal) keeps your equipment and batteries secure during every test.
- Real-Time Temperature Monitoring: Built-in NTC sensor continuously tracks internal temperature; supports an external NTC 3950 10K 1% probe to measure 0–100°C ambient or surface temperatures.

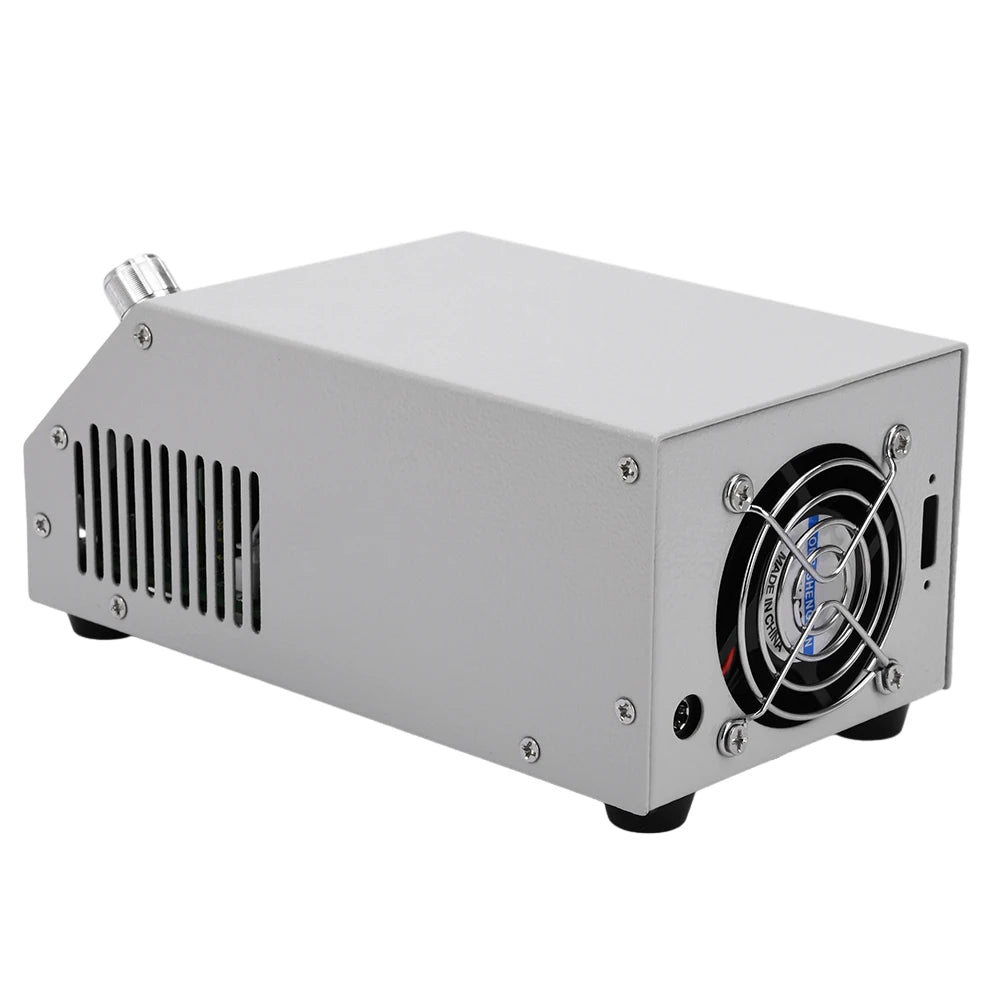

- Programmable Cooling Fan: Automatically activates when internal temperature reaches ≥40°C or load current exceeds 3A, maintaining optimal operating conditions.
- Timed & Voltage-Limited Discharge: Set timed discharge sessions up to 99 hours 59 minutes, or configure low-voltage cutoff protection to safeguard your batteries.

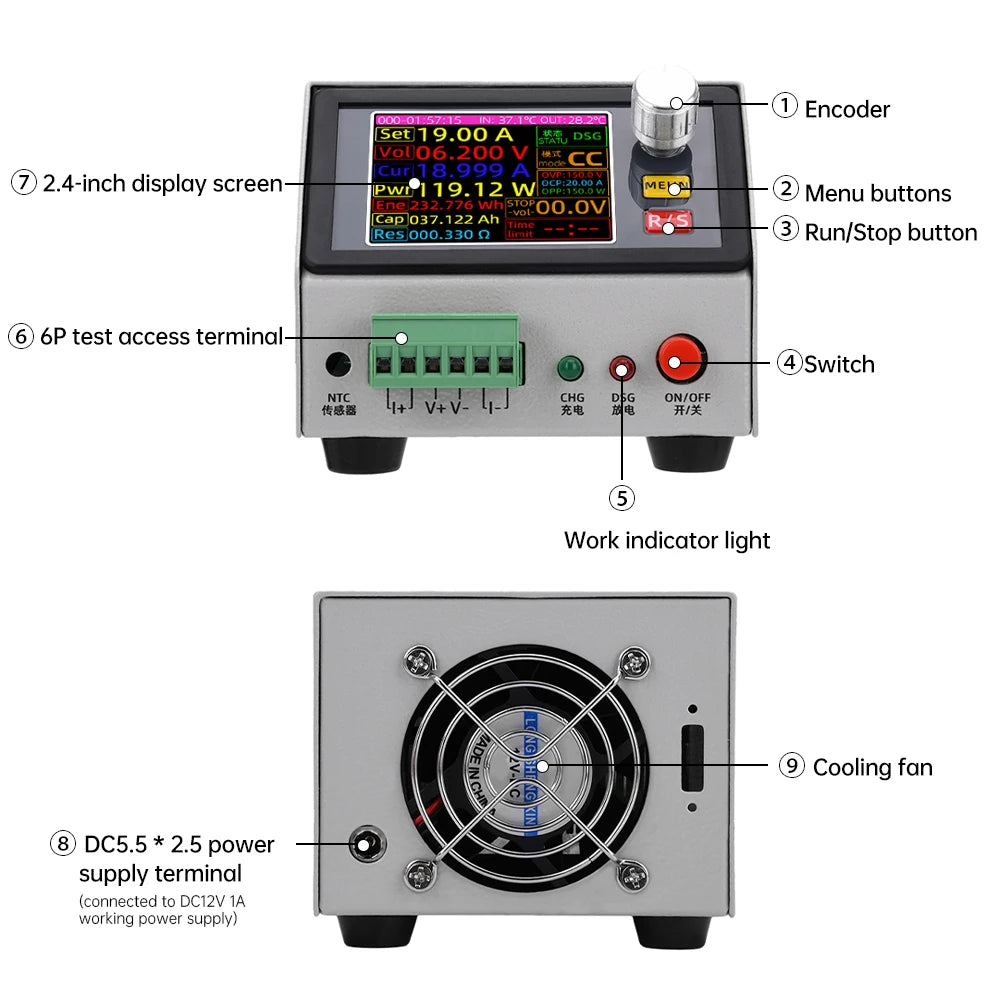

- 4-Wire Kelvin Sensing (A+ V+ V- A-): Eliminates lead resistance errors for high-accuracy readings; fully backward-compatible with 2-wire setups.
- Bilingual Interface: Instant switching between Chinese and English — perfect for global users and professional lab environments.

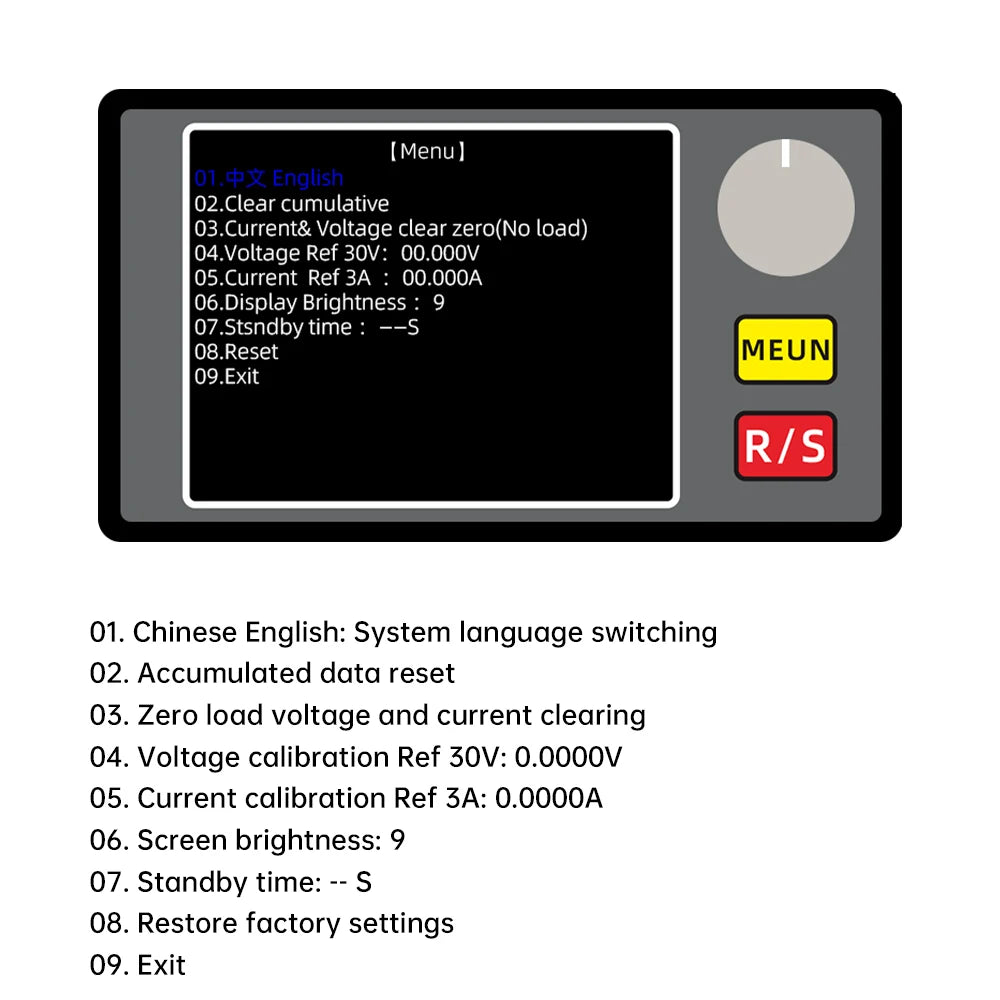

- One-Button Data Reset: Clear cumulative data instantly with a single press; supports open-circuit voltage and current calibration and factory settings restore.
- CE, RoHS & WEEE Certified: Meets rigorous international safety and environmental standards.
Full Specifications
| Model | MDL150 |
| Operating Voltage | DC 12V (12V 1A adapter included) |
| Plug | US standard (European adapter included) |
| Load Voltage (U) | DC 0–150V |
| Load Current (I) | DC 0–20A |
| Load Power (P) | 0–150W (P = U × I ≤ 150W; max 60W at ≥120V) |
| Wiring | 4-wire (A+ V+ V- A-), 2-wire compatible |
| Max Energy Measurement | 99,999.9 Wh |
| Max Capacity Measurement | 99,999.9 Ah |
| Cumulative Time | ddd:hh:mm:ss |
| Timed Discharge | Up to 99 hours 59 minutes |
| Overtemperature Trigger | 75°C internal |
| External Temp Probe | NTC 3950 10K 1% (0–100°C) |
| Display | 2.4-inch color screen, adjustable brightness |

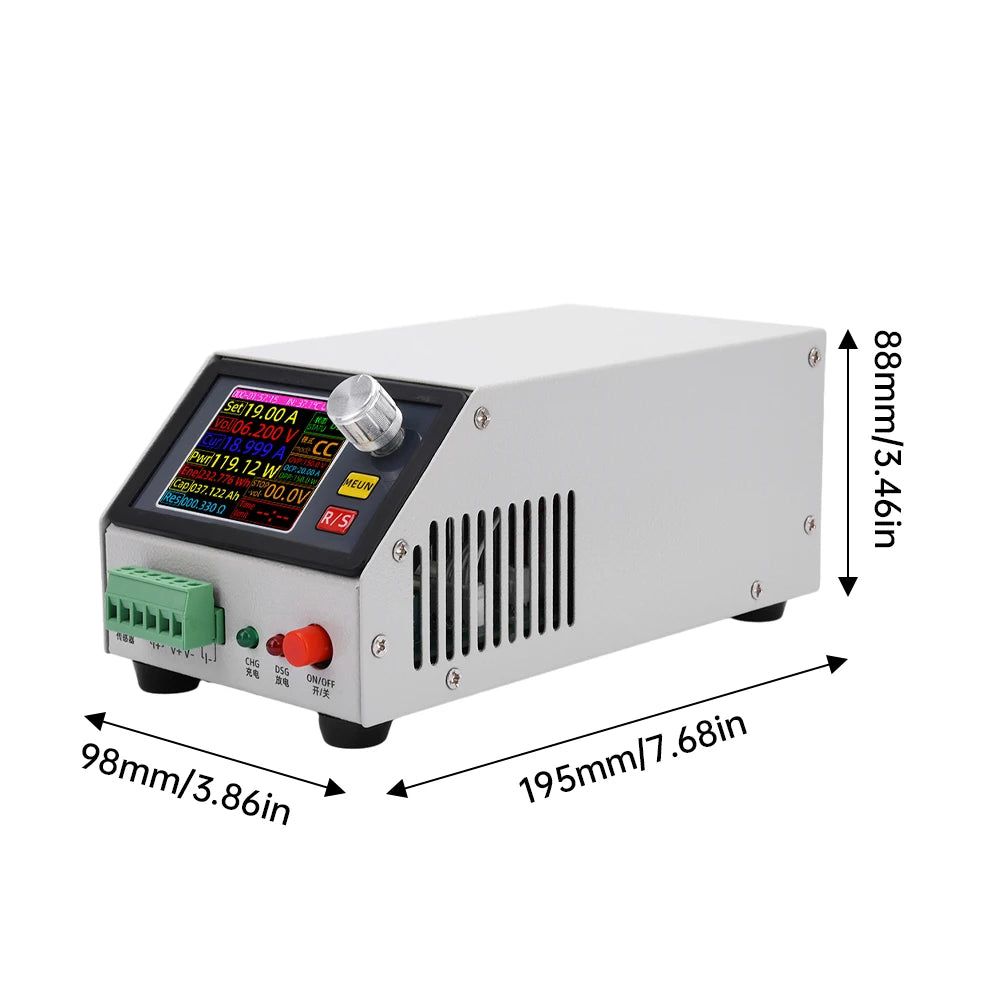

| Dimensions | 195 × 98 × 88 mm |
| Certification | CE, RoHS, WEEE |
| Country of Origin | Made in Mainland China |
What's in the Box
- MDL150 Multifunction Discharge Tester × 1

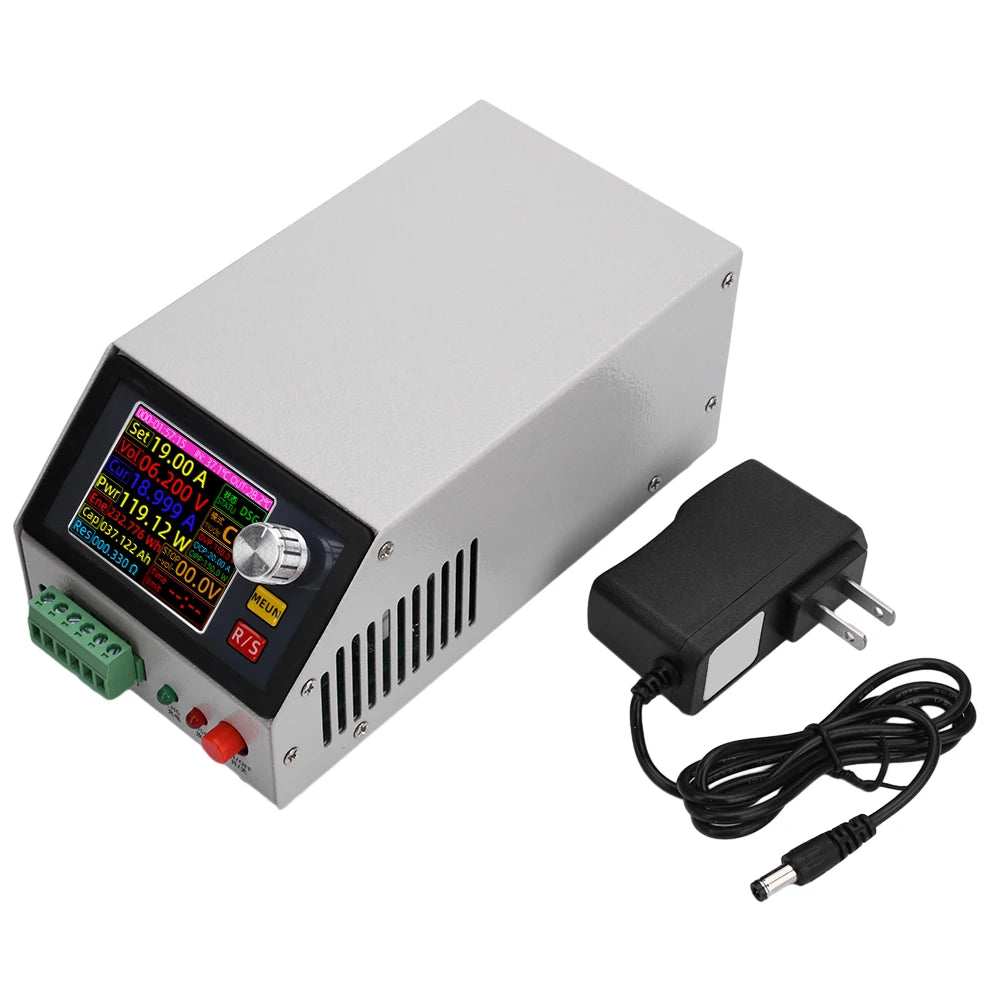

- US Standard 12V 1A Power Adapter × 1
- European Plug Adapter × 1
Related Products You May Like
Pair your battery testing setup with quality accessories from our store:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What battery types can the Gaqqee MDL150 electronic load tester test?
A: The MDL150 is compatible with any DC power source within its operating range (0–150V, 0–20A, 0–150W), including lithium-ion, LiFePO4, lead-acid, NiMH, and other rechargeable battery packs, as well as DC power supplies and solar panels. It measures discharge capacity (Ah) and energy (Wh) with high accuracy.
Q: What are the three operating modes on the MDL150 and when should I use each?
A: The MDL150 offers CC (Constant Current) mode — ideal for standard battery capacity testing at a fixed discharge rate; CP (Constant Power) mode — useful for simulating real-world device loads; and CR (Constant Resistance) mode — best for testing power supplies and sources under resistive load conditions. Select the mode that matches your testing requirement directly from the on-screen menu.
Q: Does the MDL150 discharge tester include a power adapter?
A: Yes. The package includes a US standard 12V 1A power adapter to power the unit itself (the tester requires DC 12V to operate), plus a European plug adapter for international compatibility. Note that batteries or devices under test are not included.
Q: How does the quadruple safety protection system work on this electronic load tester?
A: The MDL150 features user-configurable overvoltage protection (up to 150V), overcurrent protection (up to 20A), overpower protection (up to 150W), and automatic overtemperature protection that triggers when the internal temperature exceeds 75°C. When any threshold is reached, the unit automatically halts the load to protect both the tester and the device under test.
Q: What is the accuracy of the 4-wire measurement system on the MDL150?
A: The 4-wire Kelvin sensing configuration (A+ V+ V- A-) separates the current-carrying leads from the voltage-sensing leads, effectively eliminating errors introduced by lead and connector resistance. This makes the MDL150 significantly more accurate than a standard 2-wire measurement, especially at higher currents. It is also fully backward-compatible with 2-wire connections.
