Gaqqee LCR-D2 Transistor Tester – All-in-One Component Analyser
The Gaqqee LCR-D2 Transistor Tester is a compact, professional-grade measuring instrument designed for electronics enthusiasts, technicians, educators, and product developers. Packed into a pocket-sized 90 × 70 × 19 mm body, it delivers automatic and manual component identification with a clear 1.44-inch digital display — making it the ideal bench companion for testing transistors, MOSFETs, diodes, capacitors, inductors, resistors, and more.
Key Features
- Auto & Manual Modes: In Auto Mode the device automatically recognises the component type at the press of a button. Manual Mode lets you dial directly to the component category you need — the matching icon appears on screen instantly.

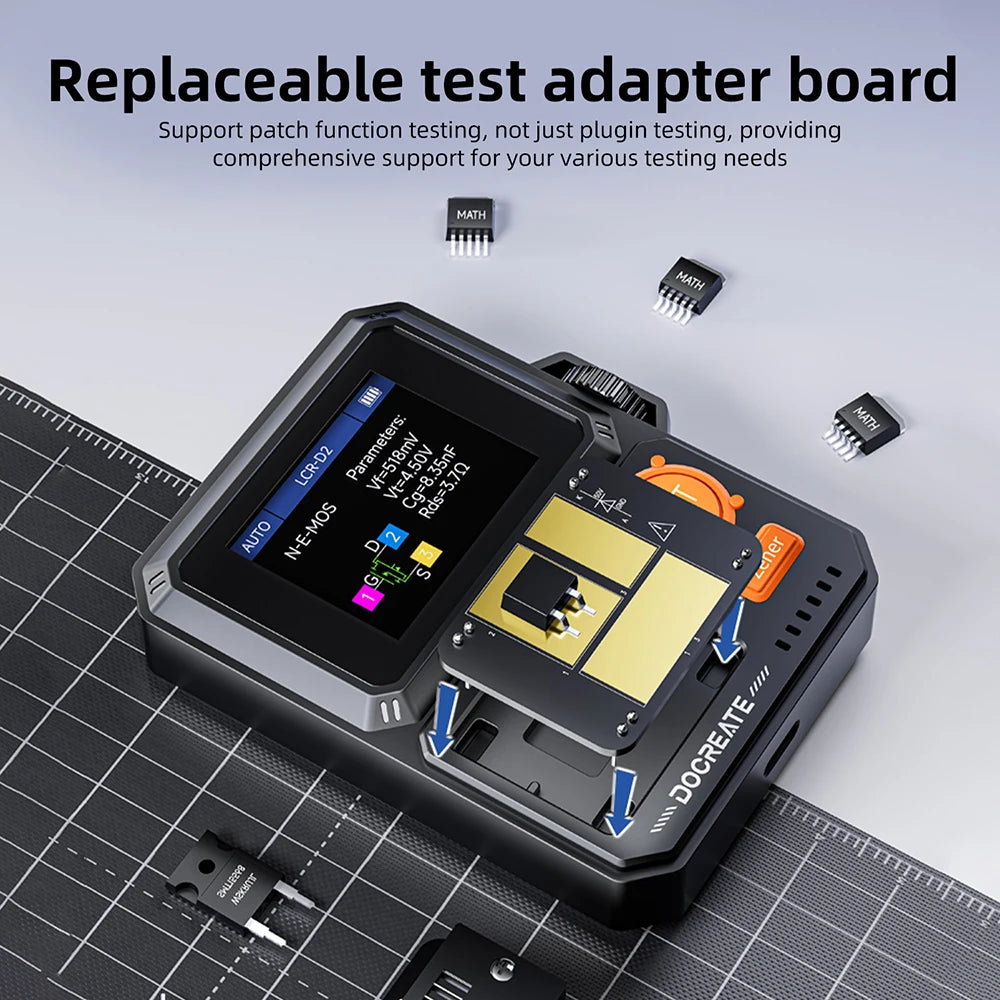

- Interchangeable SMD Socket: The swappable surface-mount socket accommodates a wide variety of SMD components, making bench testing faster and more flexible.
- MOSFET & Transistor Testing: Accurately identifies and measures BJTs, MOSFETs, JFETs, and more, displaying key parameters on the digital screen.
- LCR Measurement: Measures capacitance, inductance, and resistance across a broad auto-range, removing the guesswork from component sorting.

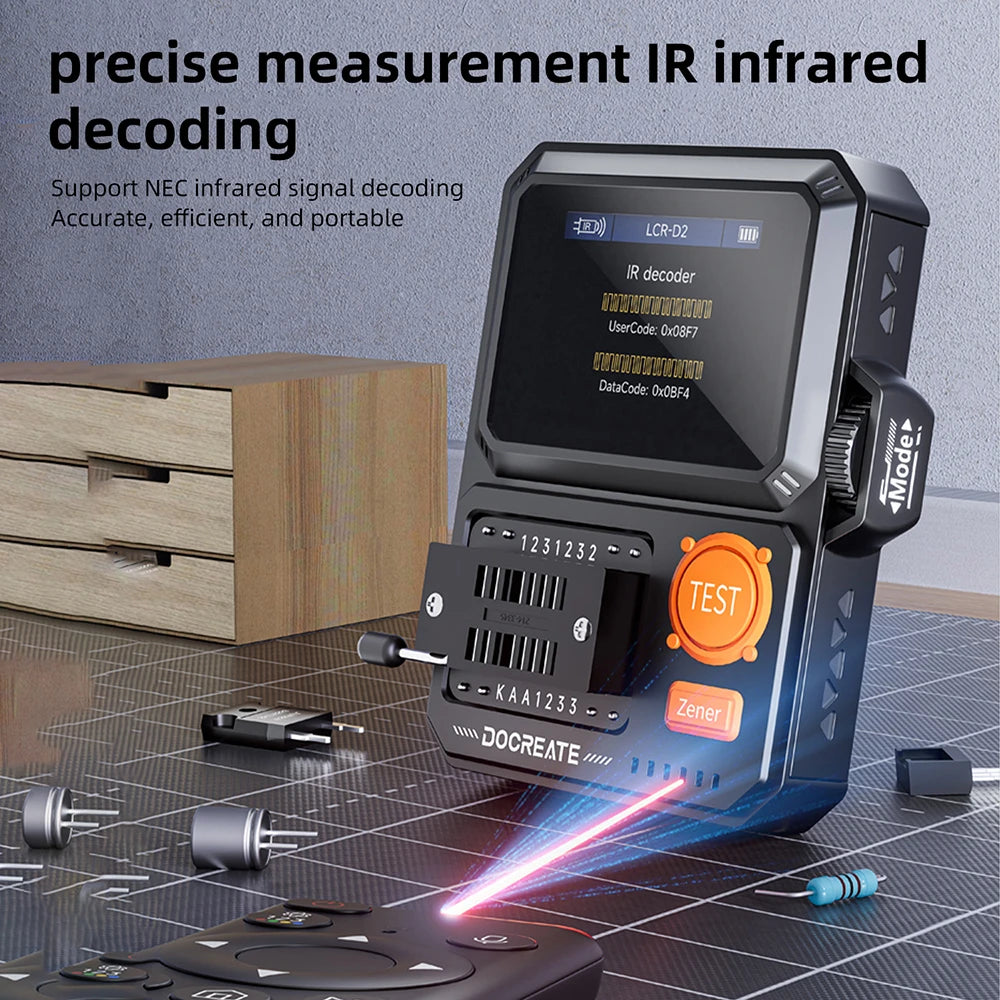

- NEC Infrared Signal Decoding (NRC): Built-in IR decoding supports NEC protocol remote control testing and displays corresponding infrared waveforms — great for remote control diagnostics.
- Self-Test / Calibration: Short-circuit pins 1-2-3 in the transistor test area, hold the TEST button for 3 seconds, and the unit runs a full self-calibration routine.
- Data Record Function: Saves test results for review, supporting efficient multi-component workflows.
- USB Type-C Charging: Rechargeable 400 mAh built-in lithium battery (5 V / 1 A via Type-C) — no disposable batteries needed.
- CE & RoHS Certified: Meets international safety and environmental standards.
Specifications
| Model | LCR-D2 |
| Display | 1.44-inch digital display |
| Battery | 400 mAh lithium-ion (built-in) |
| Charging | USB Type-C, 5 V / 1 A |
| Operating Current | 90 mA (standard) / 150 mA (Zener diode mode) |
| Operating Mode | Auto Range & Manual |
| IR Protocol Supported | NEC (NRC decoding) |
| Dimensions | 90 × 70 × 19 mm |
| Certification | CE, RoHS |
| Country of Origin | Made in Mainland China |

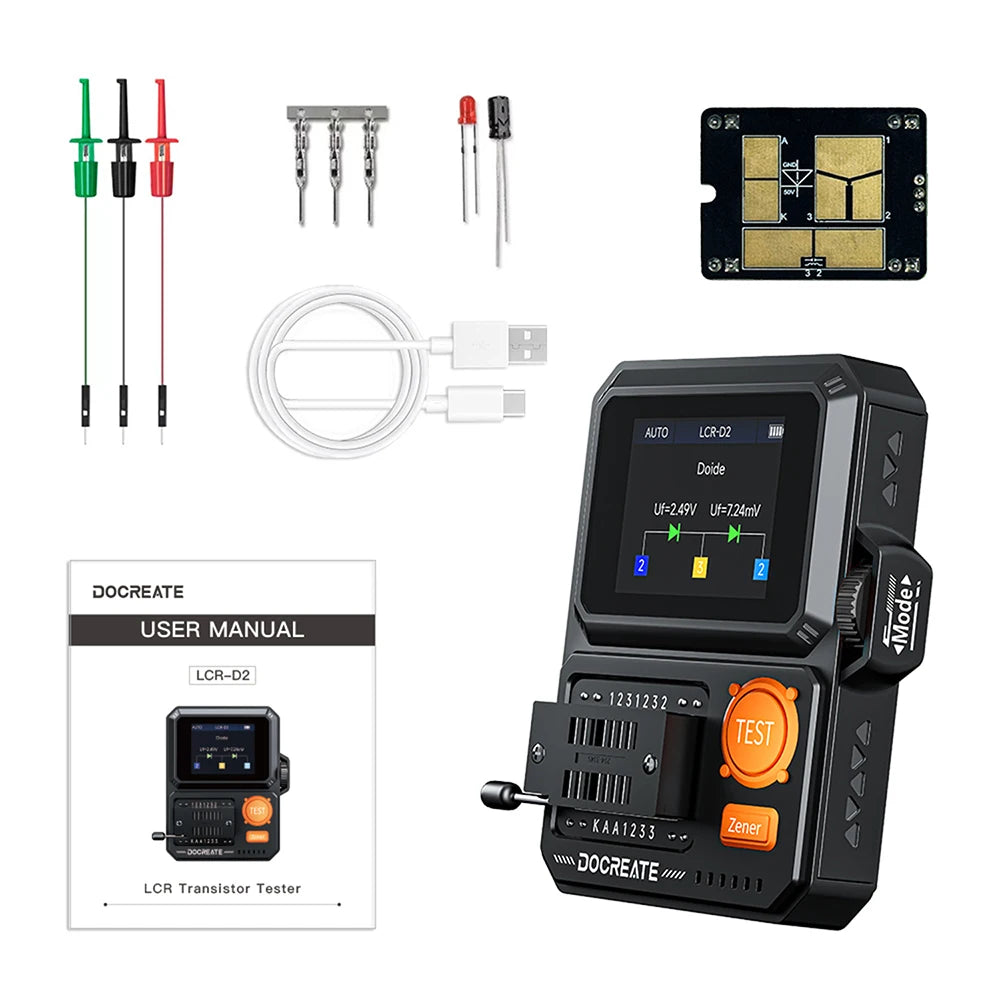

Package Contents
- LCR-D2 Transistor Tester × 1
- SMD Test Board × 1
- Test Clips × 3
- F3MM Diode × 1
- TCJ8 DuPont Terminal × 1
- 10 µF Electrolytic Capacitor × 1
- USB Type-C Cable × 1
- User Manual × 1
Who Is It For?
The LCR-D2 is perfectly suited for:
- Electronics hobbyists and DIY makers sorting component bins
- Technicians repairing household appliances or consumer electronics
- Students and educators in electronics lab environments
- R&D engineers verifying component parameters during prototyping
- Scientific research and experimental setups
Important Safety Precautions
- Always discharge capacitors fully before testing; failure to do so may damage the device.
- Do not use the device to test batteries.
- Do not insert components while the test interface is live at power-on.
- The device can only drive components rated at 5 V or below.
- Keep away from fire; contains a lithium-ion battery.
- Avoid impacts, drops, or water exposure. If moisture enters, allow the unit to dry completely before switching on.
You May Also Like
Looking for more quality products? Check out the Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules or explore our popular B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler for your next project or hobby.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of components can the Gaqqee LCR-D2 Transistor Tester identify?
A: The LCR-D2 can automatically or manually identify and measure a wide range of electronic components including BJT transistors, MOSFETs, JFETs, standard diodes, Zener diodes, capacitors, inductors, and resistors. Its auto-range mode recognises the component type without manual configuration.
Q: Does the LCR-D2 need batteries, and how is it charged?
A: The LCR-D2 has a built-in 400 mAh rechargeable lithium-ion battery — no replaceable batteries are required. It charges via the included USB Type-C cable at 5 V / 1 A, making it convenient to top up from any standard USB charger or power bank.
Q: What infrared protocol does the NRC IR decoding feature support?
A: The built-in infrared signal decoder supports the NEC protocol. It decodes NEC-format remote control signals and displays the corresponding infrared waveforms on the 1.44-inch screen, making it ideal for remote control diagnostics and testing.
Q: How do I calibrate or self-test the LCR-D2?
A: To run a self-test / calibration, short-circuit pins 1, 2, and 3 in the transistor test area simultaneously, then press and hold the TEST button for 3 seconds. Ensure the Zener diode test area remains open during this procedure. The device will then run its built-in calibration routine automatically.
