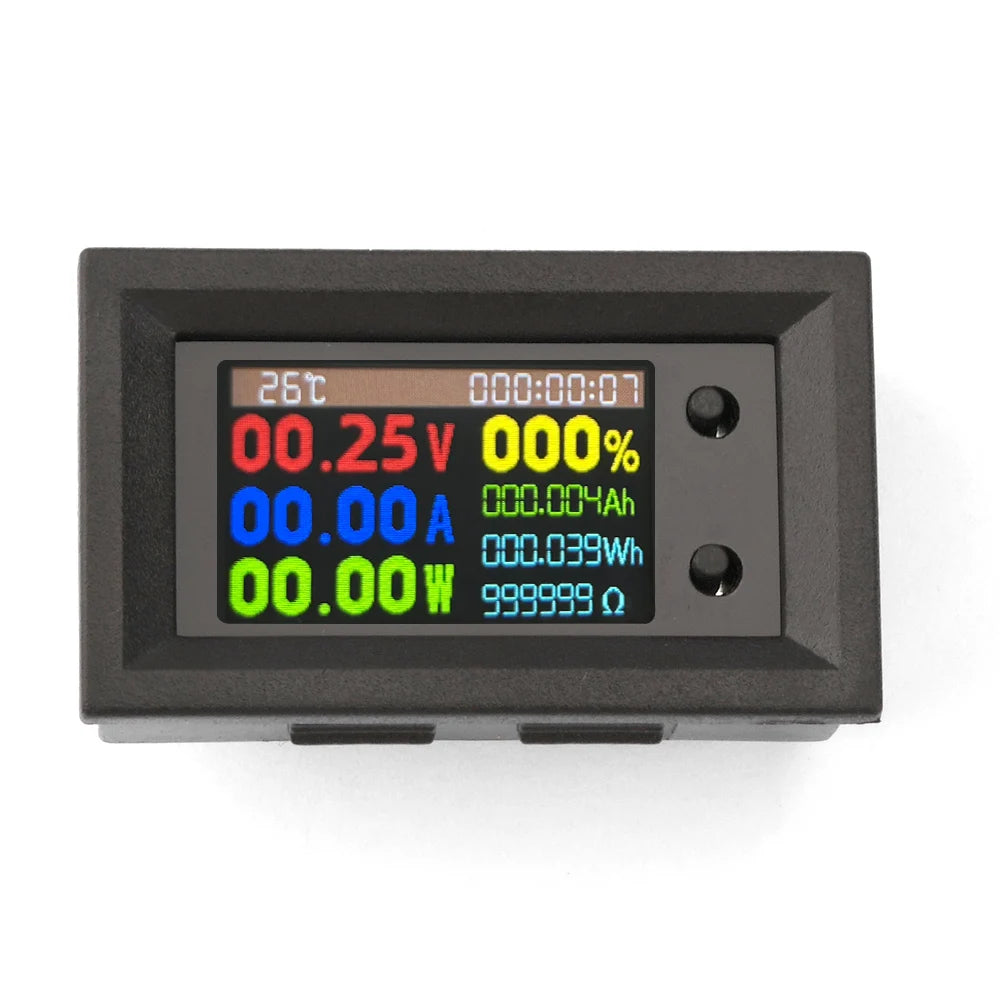

Gaqqee 9-in-1 DC Voltmeter, Ammeter & Wattmeter — All-in-One Electrical Monitoring

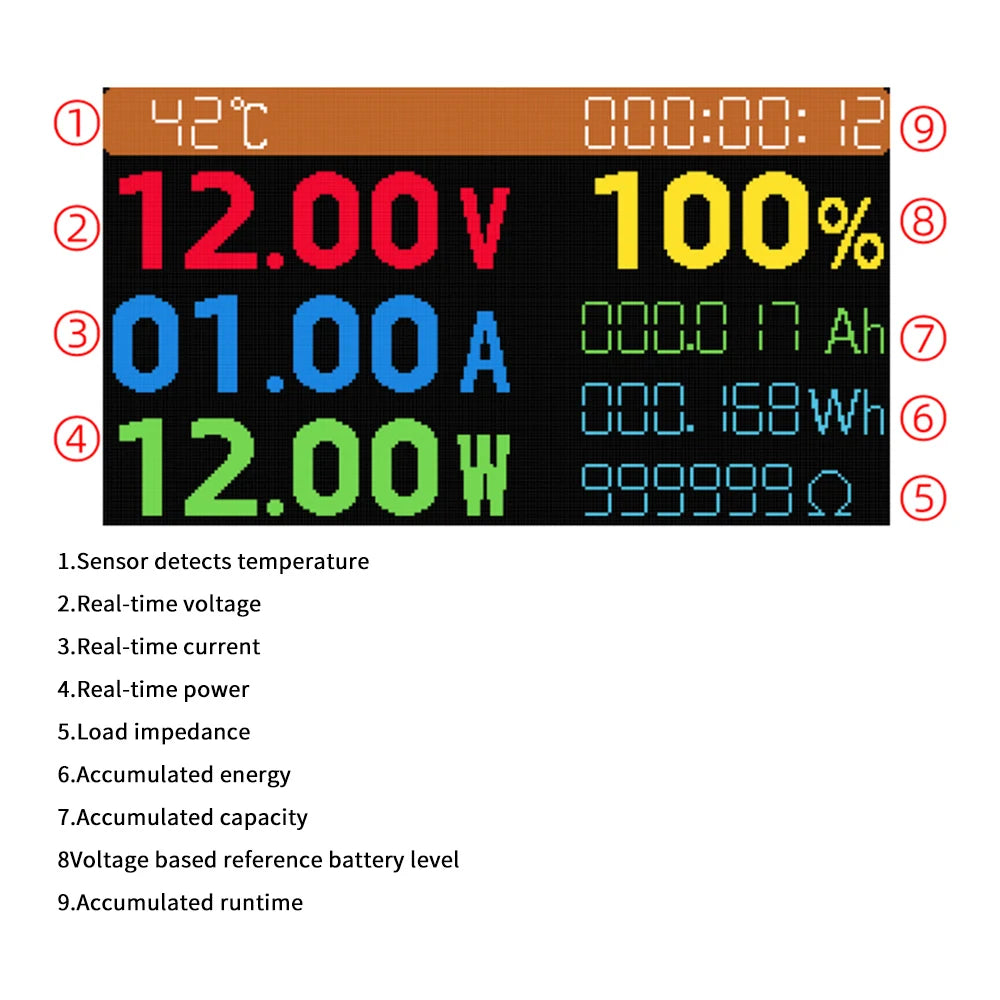

Take complete control of your DC electrical systems with the Gaqqee 9-in-1 Multimeter. This compact yet powerful monitoring instrument simultaneously displays voltage, current, power, battery percentage, temperature, cumulative capacity, energy, operating time, and load impedance — all on a crisp 1.14-inch high-definition IPS LCD colour screen (135×240 resolution). Whether you're managing an automotive battery, solar setup, or DIY electrical project, this meter gives you real-time data at a glance.
Made in Mainland China. CE and RoHS certified.
Key Features
- 9 Measurements in 1: Voltage, current, power, battery %, temperature, cumulative capacity, energy, operating time, and load impedance — all on one screen.
- Flexible Current Ranges: Selectable 10 A (built-in shunt), 50 A, or 100 A measurement ranges to suit a wide variety of applications.
- Wide Voltage Range: Measures DC 0–100 V with ±1.00 V accuracy and 0.1 V resolution.
- Temperature Probe Included: Waterproof cylindrical NTC 10K sensor measures from -40°C to 120°C, with approx. 1 metre cable.
- High-Definition IPS Colour Display: 1.14-inch LCD with 135×240 resolution for clear, easy reading in any environment.
- Cumulative Data Logging: Records capacity (0–9,999,999 mAh), energy (0–9,999,999 mWh), and elapsed time (up to 999:59:59).
- Data Reset & Calibration: Supports cumulative data reset, no-load forced zeroing, and fine-tuning of voltage and current display values.
- Compact Panel-Mount Design: Measures only 47.7 × 28.7 × 17.5 mm with a 45 × 25.8 mm mounting cut-out — ideal for dashboards and enclosures.
- CE & RoHS Certified: Meets international safety and environmental standards.
Technical Specifications
| Operating Voltage | DC 4–30 V (XH-3P connector) |
| Voltage Measurement | DC 0–100 V | ±1.00 V accuracy | 0.1 V resolution |
| Current Measurement | 0.00–10 A / 50 A / 100 A (selectable) | ±0.1 A accuracy | 0.03 A resolution |
| Power Measurement | 0–1,000 W (10 A) / 0–5,000 W (50 A) / 0–9,999 W (100 A) |
| Capacity Range | 0–9,999,999 mAh |
| Energy Range | 0–9,999,999 mWh |
| Time Range | 0–999:59:59 (h:m:s) |
| Temperature Range | -40°C to 120°C (NTC 10K 3950 1% external probe) |
| Display | 1.14-inch IPS LCD, 135×240 resolution |
| Power Consumption | ~20 mA at 12 V DC |
| Dimensions | 47.7 × 28.7 × 17.5 mm |
| Mounting Cut-Out | 45 × 25.8 mm |
| Certification | CE, RoHS |
| Country of Origin | Made in Mainland China |

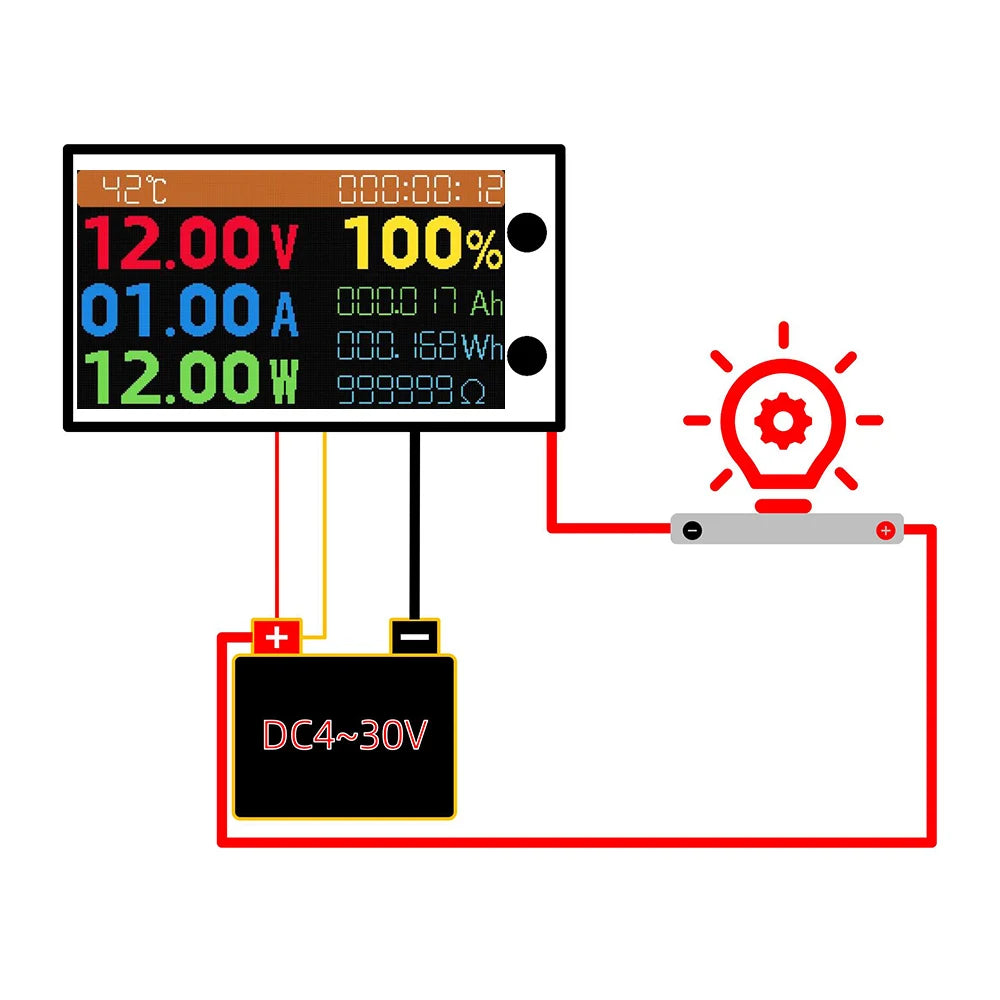

Wiring Guide (Summary)
- Thin Red Wire (XH-2.54-3P): Positive terminal of operating power supply — do NOT exceed 30 V.
- Thin Black Wire: Negative terminal of operating power supply; shares ground with thick black wire.
- Thin Yellow Wire: Voltage test wire — connect to positive terminal of the circuit under test.
- Thick Red Wire (VH-3.96-2P): Current measurement positive terminal — connect in series after the load's negative terminal.
- Thick Black Wire: Current measurement negative terminal — connect to the power supply's negative terminal.
- 10 A Range: Uses on-board alloy resistor shunt — connect directly per wiring diagram.
- 50 A / 100 A Range: Requires an external 75 mV shunt (not included — must be sourced separately).
Package Contents
- 9-in-1 Measuring Instrument ×1
- Cylindrical Waterproof Temperature Probe & Cable (approx. 1 m) ×1
- XH-2.54-3P Red/Black/Yellow Wires ×1
- VH-3.96-2P Thick Red/Black Wires ×1
⚠ Important Note: Products configured for 50 A or 100 A operation require an external 75 mV shunt resistor connected in parallel. The shunt is not included — buyers must provide or purchase one separately.
