Diymore Loop Antenna Module – Broadband, Shortwave & AM Medium Wave Reception
Upgrade your radio listening setup with the Diymore Donut Loop Antenna Module Set. Available in three configurations — Broadband (Black), Shortwave (Blue), and AM Medium Wave (Red) — these compact ring antennas deliver excellent omnidirectional reception across a wide spectrum of frequencies. Whether you're a hobbyist, a radio enthusiast, or a maker working with SDR setups, these antennas are built for performance in a surprisingly small footprint.
Made in Mainland China.
Three Antenna Variants — One Powerful Kit
- Black – Broadband Receiving Antenna: Covers 10kHz–180MHz with a built-in low-impedance converter. No tuning required — works directly across low and high frequencies without swapping antennas. Highly compatible and recommended for use with Quansheng UV-K5/K6 walkie-talkies and similar SDR receivers.
- Blue – SW Shortwave Antenna: Tuned for 4MHz–24MHz shortwave reception. A narrowband, high-impedance (Hi-Z) resonant antenna. Must be connected to the Hi-Z input port of compatible receivers such as the Malachite DSP.
- Red – AM Medium Wave Antenna: Covers 500kHz–2000kHz for AM medium wave bands. Also a high-impedance (Hi-Z) resonant antenna requiring connection to the dedicated Hi-Z antenna input. Compact, tunable, and ideal for AM broadcast reception.
Key Features
- 🔵 Omnidirectional Reception: The donut/ring loop design delivers consistent, uniform signal pickup in all horizontal directions — no need to constantly reposition your antenna.
- 📡 Broadband & Narrowband Options: Choose the broadband model for no-fuss wideband coverage, or the SW/AM resonant models for optimised narrowband performance.
- 📦 Space-Efficient Design: At just 110 × 100mm, these antennas take up a fraction of the space of conventional long-wire antennas — perfect for desktop setups or portable use.
- 🔧 Easy Installation: SMA male connector on all models. Variable capacitance tuning on SW/AM models for fine-tuning reception to your target frequency.
- ⚡ Low Power Consumption: Designed for efficient, low-power operation suitable for battery-powered and portable receivers.
Specifications at a Glance

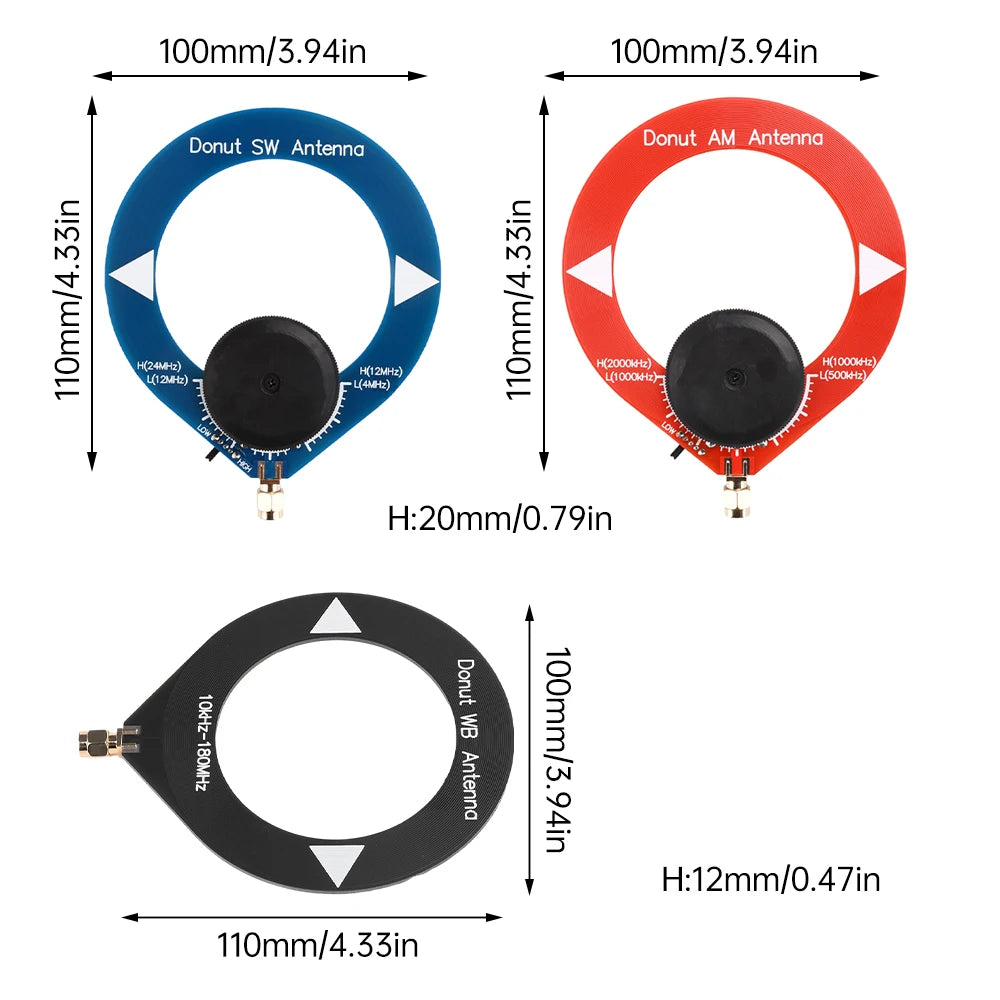

| Model | Colour | Frequency Range | Connector | Dimensions |
|---|---|---|---|---|
| Broadband | Black | 10kHz – 180MHz | SMA Male | 110 × 100 × 12mm |
| Shortwave | Blue | 4MHz – 24MHz | SMA Male | 110 × 100 × 20mm |
| AM Medium Wave | Red | 500kHz – 2000kHz | SMA Male | 110 × 100 × 20mm |
Important Compatibility Note
The Blue (SW) and Red (AM) loop antennas are narrowband high-impedance (Hi-Z) resonant antennas. They must be connected to the Hi-Z antenna input port on your receiver (e.g. Malachite DSP). Connecting to a standard 50Ω input will cause impedance mismatch, detuning, and loss of function. The Black broadband antenna includes a built-in low-impedance converter and does not require a Hi-Z port.
Package Contents
- 1 × Loop Antenna Module (your selected variant)
