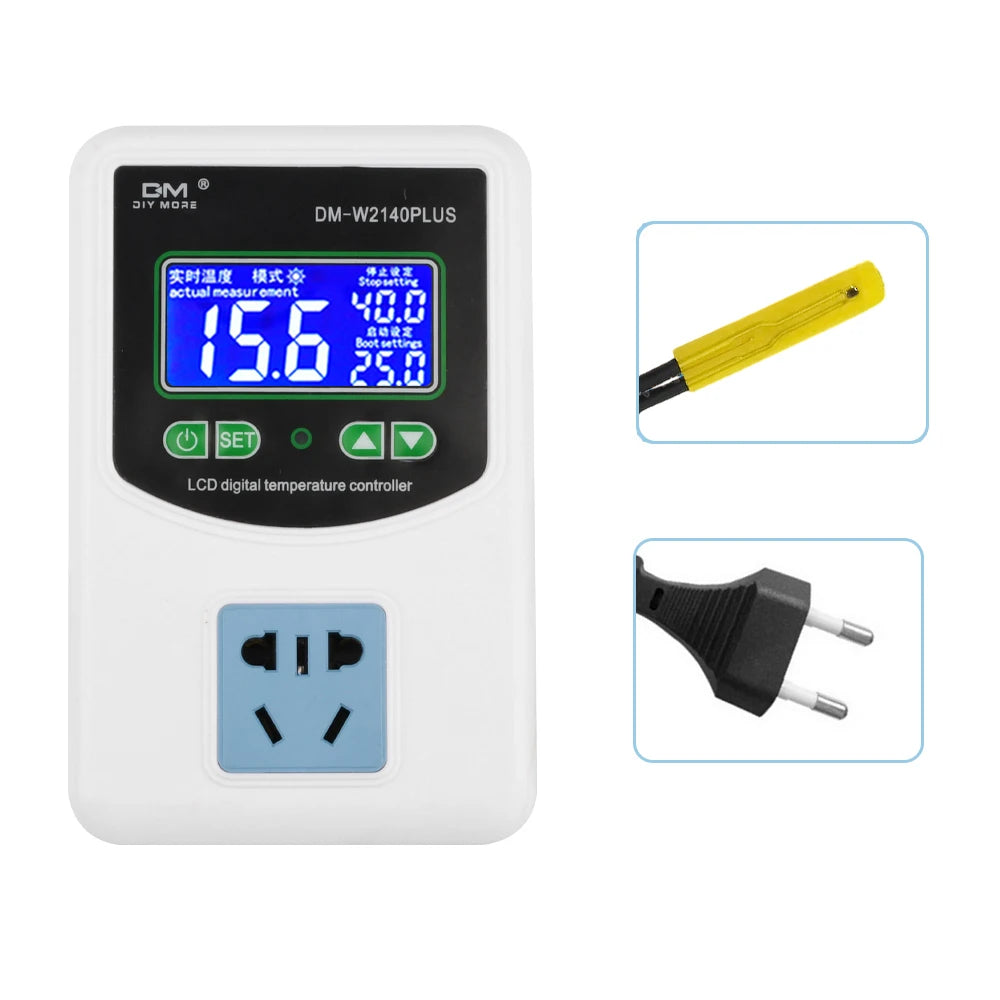

Diymore DM-W2140Plus LCD Digital Temperature Controller 3500W 16A
Diymore DM-W2140Plus LCD Digital Temperature Controller 3500W 16A
Diymore DM-W2140Plus High-Precision Digital Temperature Controller
Take precise control of your environment with the Diymore DM-W2140Plus Digital Temperature Controller. Whether you're managing an aquarium, a chicken coop, a greenhouse, or any heating/cooling application, this smart outlet delivers reliable, automatic temperature regulation at the touch of a button. With a robust 3500W / 16A capacity and a wide measurement range of -50°C to +110°C (-58°F to +230°F), it handles demanding household and agricultural tasks with ease.
Made in Mainland China.
Key Features
- High-Precision LCD Display: Three display modes on a single screen — current temperature, set temperature, and status — all visible at a glance without switching views.
- Wide Temperature Range: Measurement range of -50°C to +110°C; control range of -45°C to +105°C for versatile applications.
- Dual Operating Modes: Automatically switches between heating mode and cooling mode based on your start/stop temperature settings — no manual toggling needed.
- High & Low Temperature Alarms: Set customizable upper and lower alert thresholds to keep your environment within safe limits at all times.
- One-Touch Calibration: Fine-tune sensor accuracy within ±10°C with a simple button press — no tools required.
- Celsius / Fahrenheit Switching: Instantly toggle between °C and °F to suit your preference.
- 16A / 3500W High-Current Capacity: Supports heavy-load devices, pumps, fans, heaters, and more.
- Multiple Sensor Inputs: Compatible with clamp-on probe, air-droplet, magnet probe, and thin-film sensor cables (1.5 m sensor cable included).
- Wide Voltage Compatibility: Works with AC 110–220V (EU and US plug standards available).
- Certifications: CE, RoHS, WEEE certified for safety and environmental compliance.
How It Works
Simply plug your device into the controller's outlet, then set your desired start and stop temperatures:
- Cooling Mode: Start temperature > Stop temperature (e.g., fan turns on at 30°C, off at 28°C).
- Heating Mode: Start temperature < Stop temperature (e.g., heater turns on at 36°C, off at 37°C).
The unit automatically determines the operating mode and manages your connected device — no manual intervention required.
Specifications
| Model | DM-W2140Plus |
| Power Rating | 3500W |
| Output Capacity | 16A |
| Input Voltage | AC 110–220V |
| Measurement Range | -50°C to +110°C |
| Control Range | -45°C to +105°C |
| Sensor Cable Length | 1.5 meters |
| Temperature Units | °C / °F switchable |
| Display | LCD, up to 1.9 inches |
| Input Plug | EU / US Standard |
| Certifications | CE, RoHS, WEEE |
| Origin | Mainland China |
What's in the Box
- DM-W2140Plus Temperature Controller Unit × 1
- User Manual × 1
Common Applications
- Aquarium and fish tank temperature management
- Animal husbandry, incubation, and poultry coops
- Greenhouse heating and ventilation control
- Pump and fan automation
- Refrigeration and fermentation monitoring
- General household heating/cooling appliance control
Related Products You May Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the temperature control range of the DM-W2140Plus digital temperature controller?
A: The DM-W2140Plus has a measurement range of -50°C to +110°C and an active temperature control range of -45°C to +105°C, making it suitable for a wide variety of heating and cooling applications in household and agricultural settings.
Q: How do I switch between heating mode and cooling mode on this temperature controller?
A: The unit automatically determines the operating mode based on your start and stop temperature settings. If the start temperature is set higher than the stop temperature, the controller operates in cooling mode. If the start temperature is set lower than the stop temperature, it operates in heating mode — no manual mode switching is needed.
Q: What types of sensors are compatible with the DM-W2140Plus?
A: This digital temperature controller is compatible with four sensor types: clamp-on probe cable, air-droplet cable, magnet probe cable, and thin-film sensor cable. A 1.5-meter sensor cable is included in the package.
Q: Is the DM-W2140Plus compatible with both US and European plugs?
A: Yes. The DM-W2140Plus supports both European Standard (EU) and US Standard plug configurations and operates on AC 110–220V, making it suitable for use in multiple regions.
