Gaqqee T3231 Digital Cycle Timer Relay Module — Dual LED Display
Take precise control of your electrical circuits with the Gaqqee T3231 Digital Time Delay Relay Module. Compatible with DC 12V, DC 24V, AC 110V, and AC 220V systems, this versatile timing relay switch delivers a wide timing range, multiple operating modes, and a crisp red & blue dual LED display — all in a compact, panel-mount form factor ideal for automotive, industrial, and DIY applications.
Key Features
- Wide Timing Range: Set delays from 0 to 999 seconds, 0 to 999 minutes, or 0 to 999 hours — total flexibility for virtually any timed switching task.
- Dual LED Display: Simultaneous red and blue LED readout lets you monitor both the set time and remaining time at a glance, with intuitive touch-button controls for easy programming.
- Multiple Working Modes: Supports power-on delay, power-off delay, cycle switching, infinite delay, and period working modes — covering a broad range of automation needs.
- Universal Voltage Compatibility: Selectable input voltage — DC 12V / 24V or AC 110–220V — means one module works across a wide variety of systems and regions.
- SPDT Relay Output: Single-pole double-throw (SPDT) switch contact output for reliable NO/NC switching without signal voltage output.
- Embedded Panel Mount Design: Cutout dimensions of 77 × 39.3 mm allow clean, flush installation into enclosures, dashboards, or control panels.
- CE & RoHS Certified: Meets CE and RoHS standards for safety and environmental compliance.
- Sealed Protection: Sealed construction guards internal components against dust and environmental interference.
Specifications
| Model | T3231 |
| Input Voltage | DC 12V / DC 24V or AC 110–220V (selectable) |
| Timing Range | 0–999s / 0–999m / 0–999h |
| Display | Red + Blue Dual LED |
| Contact Arrangement | SPDT |
| Output Type | Switch type, contact NO output |
| Working Modes | Timer, Cycle, Period, Power-On Delay, Power-Off Delay, Infinite Delay |

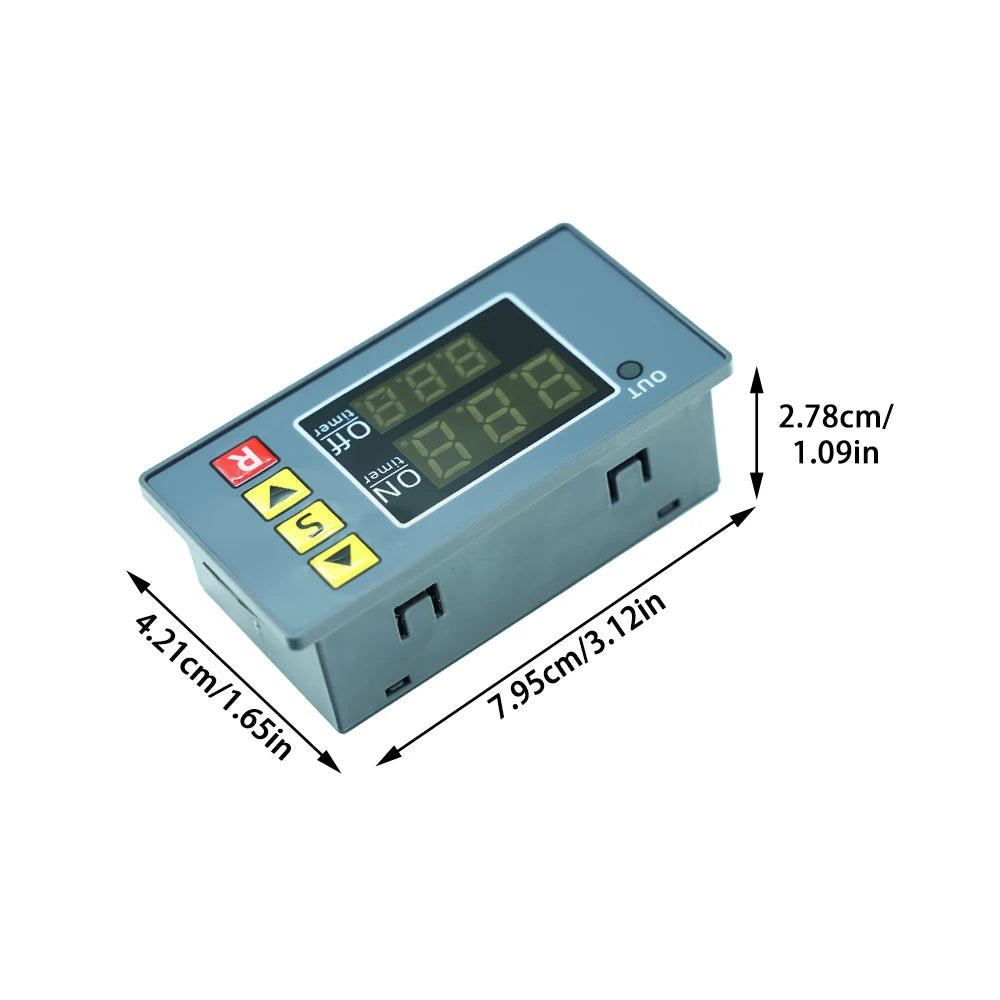

| Overall Dimensions | 79.5 × 42.1 × 27.8 mm |
| Panel Cutout Size | 77 × 39.3 mm |
| Certifications | CE, RoHS |
| Country of Origin | Made in China |
What's in the Box
- 1 × Gaqqee T3231 Digital Time Delay Relay Module
You May Also Like
Looking for more electrical and automation accessories? Browse our related products:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltages does this digital time delay relay module support?
A: The Gaqqee T3231 relay module supports selectable input voltages — DC 12V, DC 24V, AC 110V, or AC 220V — making it compatible with a wide range of automotive, industrial, and home automation setups.
Q: What working modes does the cycle timer relay support?
A: This module supports multiple operating modes including power-on delay, power-off delay, cycle switching, period mode, and infinite delay. You can set timing units in seconds, minutes, or hours (up to 999 of each), covering virtually any timed switching scenario.
Q: How is the relay module installed?
A: The T3231 is designed for embedded panel-mount installation. The required panel cutout is 77 × 39.3 mm, allowing the module to sit flush within an enclosure, control panel, or vehicle dashboard for a clean, professional finish.
Q: What does the dual LED display show?
A: The red and blue dual LED display simultaneously shows your programmed set time and the current countdown or elapsed time, so you can monitor operation at a glance. Touch buttons on the face of the module make it easy to adjust settings without any tools.
