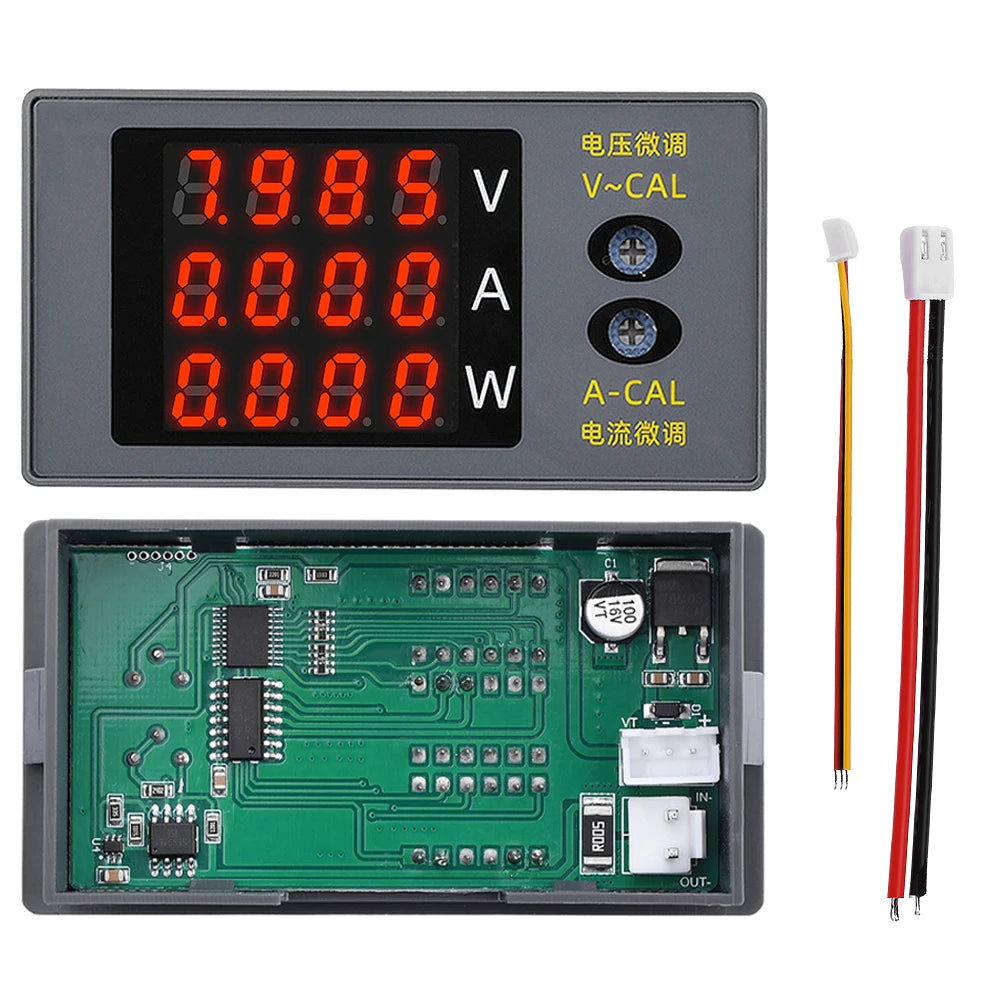

DC730 Four-Digit Digital Voltmeter, Ammeter & Power Meter
The Gaqqee DC730 is a compact, high-precision four-digit digital meter that simultaneously measures DC voltage, current, and power in real time. With its bright LED display and fine-tuning capability via adjustable resistors, this meter is an ideal tool for electronics enthusiasts, DIYers, lab bench setups, and anyone who needs accurate, at-a-glance DC circuit monitoring.
Made in Mainland China.
Key Features
- Three-in-One Measurement: Simultaneously displays DC voltage, current, and power on a clear four-digit LED panel — no need to switch between modes.
- Wide Measurement Ranges: Voltage: DC 0.000–100.0V | Current: 0.000–10.00A | Power: 0.000–1000W — covering a broad range of DC circuits.
- Fine-Tuning Support: Both voltage and current display values can be fine-adjusted via on-board adjustable resistors for maximum accuracy.
- Premium Build Quality: Constructed from high-quality ABS material with a stable, high-precision LED digital display for long-term reliable performance.
- On-Board Shunt Resistor: Features a low-temperature-drift alloy resistor shunt for direct connection per the wiring diagram.
- CE & RoHS Certified: Meets international safety and environmental compliance standards.
- Compact Panel-Mount Design: Dimensions of 79.3 × 42.1 × 26.2 mm with a mounting aperture of 71.7 × 39.1 mm — fits neatly into enclosures and project panels.
Technical Specifications
| Model | DC730 |
| Voltage Range | DC 0.000–100.0V | Accuracy ±1.00V | Resolution 0.1V |
| Current Range | 0.000–10.00A | Accuracy ±0.1A | Resolution 0.03A |
| Power Range | 0.000–1000W |
| Operating Voltage | DC 7–30V via XH-3P red/black leads (do not exceed rated voltage) |
| Operating Power Consumption | 20mA (at DC 12V) |
| Dimensions | 79.3 × 42.1 × 26.2 mm |
| Mounting Aperture | 71.7 × 39.1 mm |
| Display | Four-digit LED (digital only) |
| Certification | CE, RoHS |
| Battery Included | No |
Wire Definitions
XH-2.54-3P Fine Wires (Total length: 155mm)
- Fine Red Wire: Positive terminal of operating power supply. Must NOT connect to sources exceeding 30V.
- Fine Black Wire: Negative terminal of operating power supply. Shares ground with thick black wire. Not required when using a shared power supply.
- Thin Yellow Wire: Voltage test lead — connects to the positive terminal of the test circuit power supply.
VH-3.96-2P Thick Wires (Total length: 165mm) — Current Test Leads
- Thick Red Wire: Current test positive terminal. Connects in series after the negative terminal of the load. Connect this wire last and disconnect first.
- Thick Black Wire: Current test negative terminal. Connects to the power supply negative terminal. Connect first and disconnect last.
⚠️ Important: Thick wires must be connected in parallel with shunt resistors. Do not connect them directly to power supply terminals — this will cause a short circuit.
What's in the Box
- DC730 Power Meter × 1
- XH-2.54-3P red/black/yellow wires × 1
- VH-3.96-2P thick red/black wires × 1
You May Also Like
Looking for more DIY and project essentials? Check out these related items in our store:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- Women's Denim Vest Jacket – Sleeveless Jean Waistcoat S–5XL
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the operating voltage range for the DC730 digital power meter?
A: The DC730 meter operates on a supply voltage of DC 7–30V, connected via the XH-3P red and black leads. It is critical that you do not exceed 30V on the operating supply, as this may damage the unit.
Q: Can I fine-tune the voltage and current readings on the DC730?
A: Yes. The DC730 supports fine adjustment of both voltage and current display values through on-board adjustable resistors. This allows you to calibrate the meter's readings for greater accuracy in your specific application.
Q: How do I safely connect the thick red and black current test wires?
A: The thick wires must always be connected in parallel with the on-board shunt resistor — never directly to power supply terminals, as this will cause a short circuit. When connecting, attach the thick black wire first and disconnect it last; attach the thick red wire last and disconnect it first.
Q: Is the DC730 power meter suitable for panel mounting?
A: Yes. The DC730 has a compact footprint (79.3 × 42.1 × 26.2 mm) with a mounting aperture of 71.7 × 39.1 mm, making it ideal for installation into enclosures, DIY project panels, or custom lab bench setups.
