diymore DC 5V TWS Bluetooth Amplifier Module – 2×10W Dual-Channel with Bass Enhancement & Type-C Interface
Take your DIY audio projects to the next level with the diymore DC 5V TWS Bluetooth Amplifier Module. This compact yet powerful amplifier board delivers 2×10W dual-channel stereo output, features a built-in bass enhancement algorithm for richer, more immersive sound, and connects effortlessly via a versatile Type-C interface that supports charging, data transfer, and sound card functions — all in one tidy package.
Whether you're building a custom speaker enclosure, upgrading a computer audio setup, or prototyping a portable Bluetooth speaker, this module offers the flexibility and performance to bring your project to life. Made in Mainland China.
Key Features
- 2×10W Dual-Channel Stereo Output – Powerful, clear audio performance compatible with 4Ω, 1.75–3-inch speakers via PH2.0 speaker socket.
- TWS Bluetooth Pairing – Easily connect two modules wirelessly for true wireless stereo sound.
- Bass Enhancement Algorithm – Built-in DSP processing delivers deeper, fuller low-end response without distortion.
- 3-in-1 Type-C Interface – Single USB-C port handles power (DC 5V), data transfer, and sound card input simultaneously.
- Low Power Consumption – Efficient design ideal for battery-powered or USB-powered builds.
- Flexible Button Controls – Single, double, triple, and quad-press functions for power, play/pause, track navigation, pairing, lighting modes, and sound card switching.
- Compact PCB Form Factor – 54mm × 38mm board fits neatly into custom enclosures and DIY builds.
- Battery Power Compatible – Supports 3.7V Li-ion batteries via PH2.0 battery socket (3.3V–4.2V range).
Specifications
| Supply Voltage | DC 5V (USB) |
| Output Power | 2 × 10W |
| Interface | Type-C (charging / data / sound card) |
| Speaker Socket | PH2.0 – 4Ω; 1.75–3-inch speakers |
| Battery Socket | PH2.0 – 3.3V–4.2V |
| PCB Dimensions | 54mm × 38mm |
| Package Type | TQFP |
| Condition | New |
| Country of Origin | Made in Mainland China |

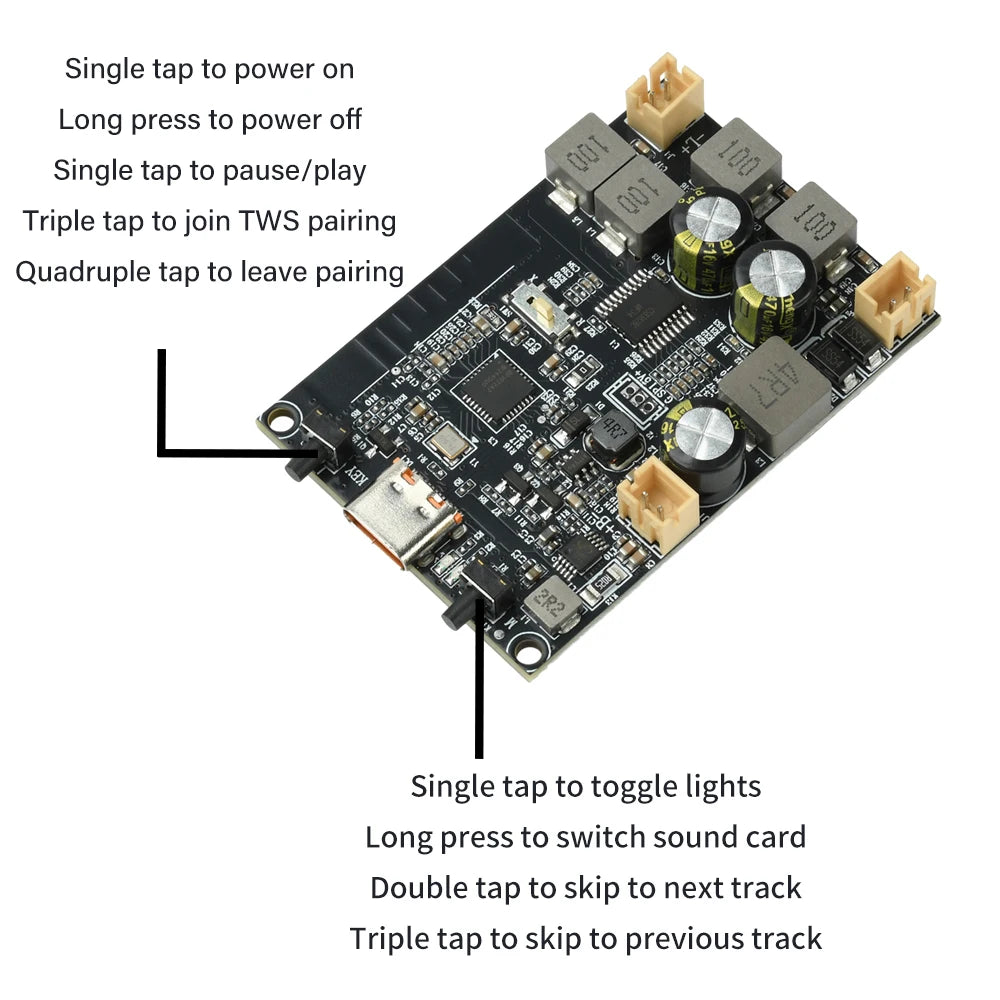

Button Function Reference
- Single Press: Power on/off & Pause/Play
- Double Tap: Next track
- Triple Tap: Previous track / TWS pairing
- Quad-Tap: Disconnect pairing
- Single Tap (cycle): Lighting modes
- Long Press: Switch sound card
Battery Requirements (When Using Battery Power)
Batteries must meet 3.7V, 6A continuous / 8A peak discharge requirements. Examples: a 3,000mAh battery requires a 3C or higher power rating; a 2,000mAh battery requires a 5C or higher power rating.
What's in the Box
- 1× Bluetooth Amplifier Module
- 3× Terminal cables (cabled/un-cabled options available)
Related Products You May Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What Bluetooth version does this TWS amplifier module support, and what is the effective range?
A: The diymore TWS Bluetooth amplifier module uses a standard Bluetooth wireless protocol suitable for typical indoor DIY audio projects. For precise Bluetooth version details, refer to the datasheet or product packaging. Typical effective range in open air is up to approximately 10 meters.
Q: Can I power this amplifier module from a USB power bank instead of a wall adapter?
A: Yes. The module operates on DC 5V via its Type-C interface, making it fully compatible with any USB power bank that can deliver sufficient current for 2×10W output. For best performance, use a power source rated at 3A or above.
Q: What size and impedance speakers are compatible with this amplifier board?
A: The PH2.0 speaker socket is designed for 4Ω speakers in the 1.75–3-inch size range. Using speakers outside these specifications may affect audio quality or damage the module, so always verify your speaker's impedance before connecting.
Q: Is this module suitable for beginners in DIY electronics projects?
A: Yes — the compact board, clear button functions, and all-in-one Type-C connectivity make this Bluetooth amplifier module a great choice for hobbyists and makers. Basic soldering skills and familiarity with speaker wiring are recommended for best results.
