Gaqqee QV61 LCD Digital Voltage Meter & Battery Level Indicator
Monitor your battery status with precision using the Gaqqee QV61 Digital Voltage & Battery Level Meter. Designed for a wide range of DC applications — from electric vehicles and e-bikes to solar storage systems and DIY electrical projects — this compact panel meter displays real-time voltage readings and remaining charge at a glance.
Key Features
- Wide Voltage Range: Measures DC 9–120 V with a transient withstand capacity of over 150 V, ensuring high compatibility and reliability across many battery systems.

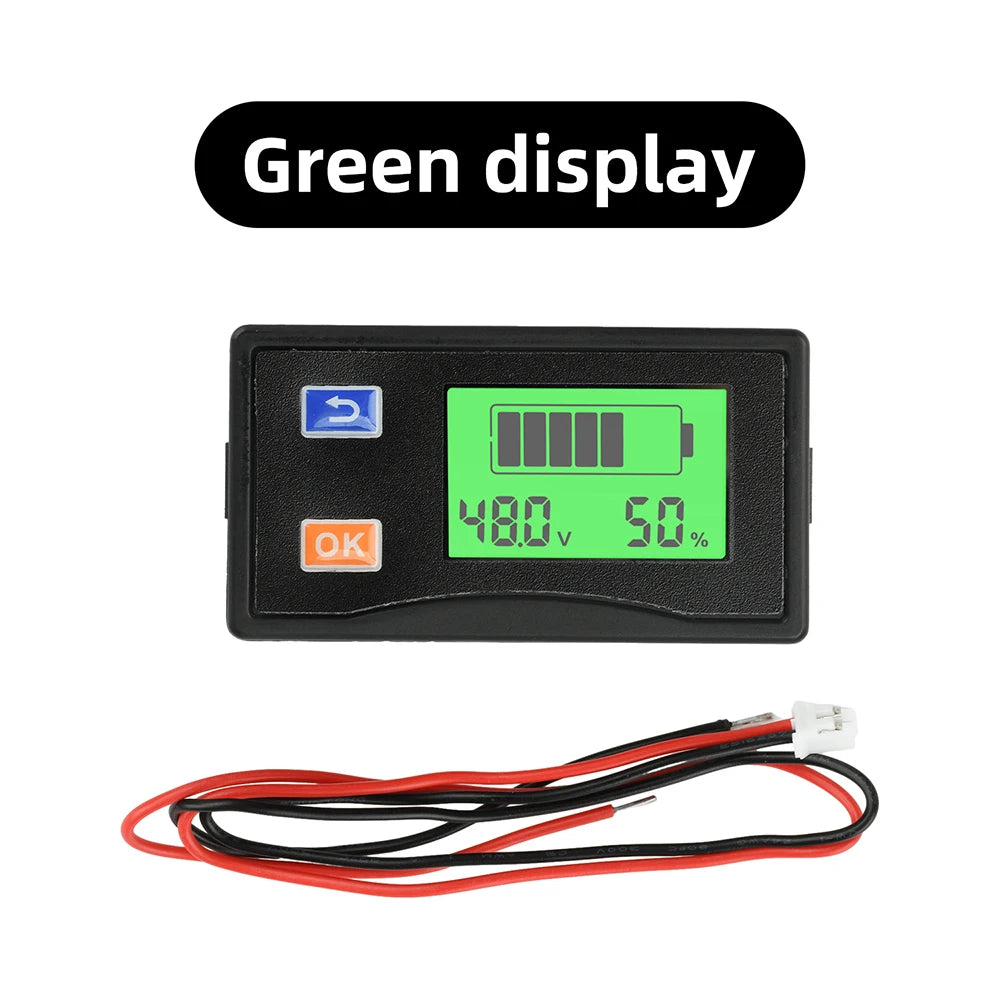

- Dual Display: Shows real-time voltage on a clear LCD, plus a 7-segment battery icon and percentage readout so you always know your remaining charge level.
- Multi-Battery Compatibility: Supports lead-acid, ternary lithium, and lithium iron phosphate (LiFePO₄) batteries across various cell configurations (different voltages).
- Configurable Settings: Easily set battery type, number of cells, backlight preferences, and sleep delay via the onboard configuration menu.
- High Accuracy: Permissible error of just 1% ± 0.1 V with a fast 500 ms refresh rate for up-to-date readings.
- Low Power Draw: Operating current under 30 mA; standby current under 5 mA — won't drain your battery just by being connected.
- CE & RoHS Certified: Meets international safety and environmental standards.
Specifications
| Input Voltage | DC 9–120 V |
| Operating Current | <30 mA |
| Standby Current | <5 mA |
| Accuracy | 1% ± 0.1 V |
| Refresh Rate | 500 ms per cycle |
| Operating Temperature | -10 to 50 °C |
| Cut-out Dimensions | 58.5 × 28.5 mm |
| Product Dimensions | 61.2 × 33.2 mm |
| Lead Length | 20 cm |
| Compatible Batteries | Lead-acid, Ternary Lithium, LiFePO₄ |
| Certification | CE, RoHS |
| Country of Origin | Made in China |
What's in the Box
- Display unit × 1
- Cable × 1
Related Products You May Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What battery types are compatible with the Gaqqee QV61 voltage meter?
A: The QV61 is compatible with lead-acid, ternary lithium, and lithium iron phosphate (LiFePO₄) batteries across various cell counts and voltage configurations within the DC 9–120 V range.
Q: Can I use this digital voltage meter on an electric vehicle or e-bike?
A: Yes. The meter's wide input range of DC 9–120 V and support for multiple battery chemistries make it well suited for electric vehicles, e-bikes, electric scooters, solar battery banks, and other DC-powered systems.
Q: How do I install the QV61 panel meter?
A: The unit is designed for panel mounting with a cut-out size of 58.5 × 28.5 mm. Connect the included 20 cm cable to your battery's positive and negative terminals, slide the unit into the panel cut-out, and secure it in place. Configuration of battery type, cell count, and backlight is done via the onboard menu.
Q: How accurate is this voltage meter?
A: The QV61 has an accuracy class of 1% ± 0.1 V and refreshes readings every 500 ms, providing reliable, near-real-time voltage and charge level information.
