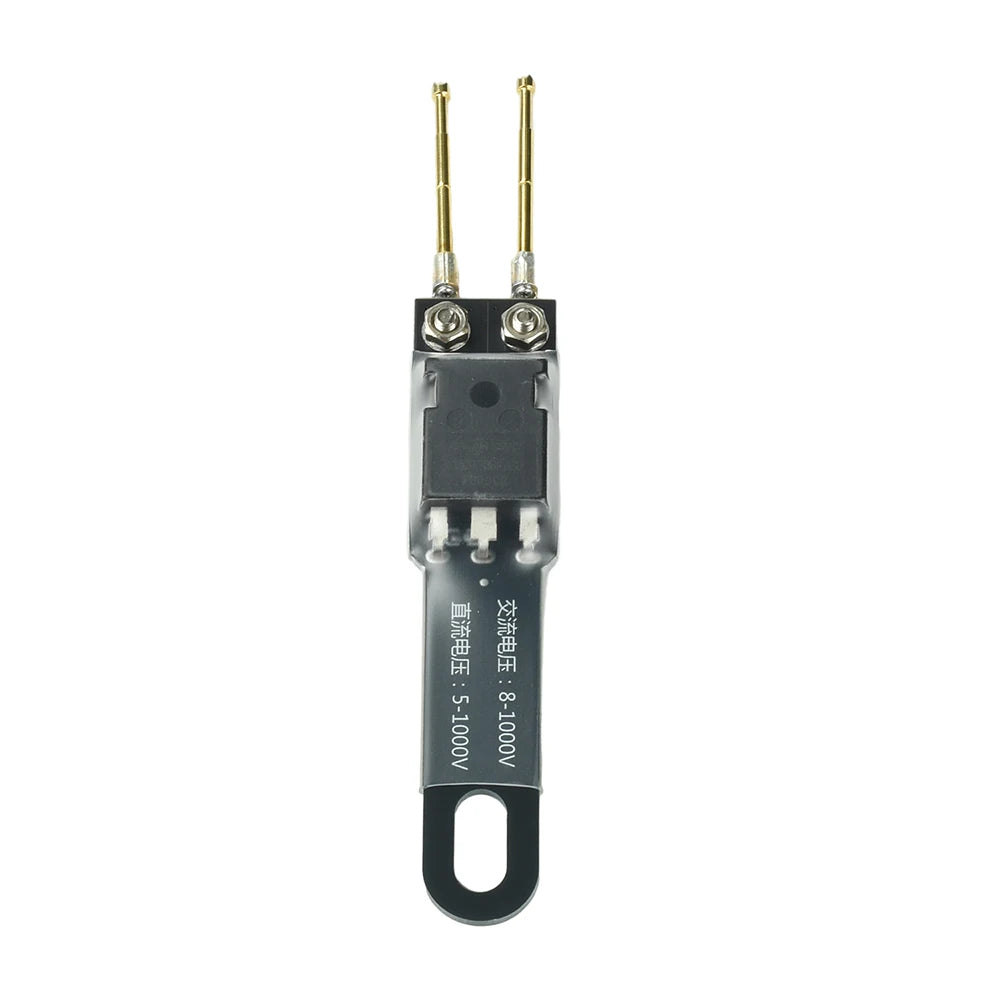

Gaqqee 5000µF Capacitor Discharge Pen – Safe, Fast & Spark-Free

The Gaqqee Capacitor Discharge Pen is a professional-grade constant-current discharge tool designed for electronics technicians, repair engineers, and hobbyists. Whether you're servicing high-voltage power supplies, testing circuits, or repairing consumer electronics, this tool rapidly and safely dissipates residual charge stored in capacitors — all without sparking or electrode confusion.

With support for capacitors up to 5000 µF and voltages from AC/DC 8V to 1000V, this pen is built for a wide range of professional and workshop applications. CE and RoHS certified. Made in Mainland China.

Key Features

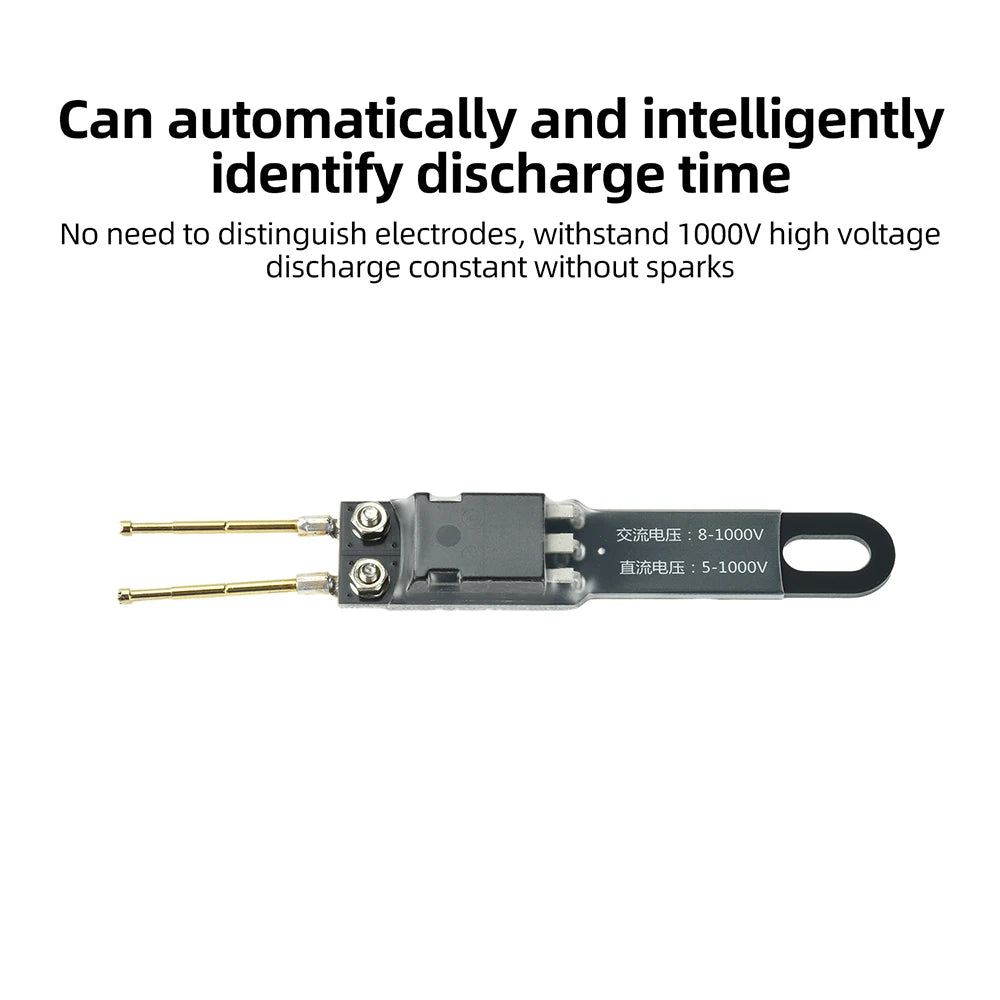

  • No Polarity Distinction: No need to identify positive or negative terminals — simply probe and discharge with confidence.
  • Adjustable Pin-Pitch & Flexible Probes: Retractable, crush-resistant probes with adjustable spacing to fit a variety of component layouts.
  • LED Discharge Indicator: The built-in LED illuminates during discharge and turns off when voltage drops to approximately 6V — giving you a clear, reliable completion signal.
  • Rapid Discharge: Clears a 5000 µF capacitor in just 2–3 seconds, significantly speeding up your repair and testing workflow.
  • Spark-Free & Consistent: Intelligent constant-current circuitry handles voltages up to 1000V without arcing or erratic discharge behaviour.
  • Wide Application Range: Ideal for the production, testing, and repair of electronic products including power supplies, inverters, motor drives, and more.
  • CE & RoHS Certified: Meets safety and environmental standards for professional use.

Specifications

Maximum Discharge Capacitance 5000 µF
Maximum Supported Voltage AC/DC 8–1000 V
Discharge Time 2–3 seconds (at 5000 µF)
Indicator LED (on = discharging; off ≈ 6V remaining)
Colour Black
Battery Required No
Certification CE, RoHS
Origin Made in Mainland China

Safety Precautions

  • After the LED indicator turns off, a residual voltage of approximately 6V may remain in the capacitor — handle with care.
  • Do not touch exposed circuit traces or metal components during the discharge process.
  • Do not discharge continuously for extended periods. Allow the MOSFET to cool between repeated discharges of high-capacity capacitors to ensure proper heat dissipation.
  • Do not use this tool to discharge batteries — it is designed for capacitors only.

What's in the Box

  • Capacitor Discharge Pen × 1

Related Products You May Like

Looking for more tools and accessories for your projects? Check out these popular items in our store:

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Can the Gaqqee Capacitor Discharge Pen be used on both AC and DC capacitors?

A: Yes. The Gaqqee Capacitor Discharge Pen supports both AC and DC circuits over a wide voltage range of 8V to 1000V, making it versatile for a broad range of electronic repair and testing applications.

Q: How do I know when the capacitor has been fully discharged?

A: The built-in LED indicator lights up during the discharge process. Once the residual voltage drops to approximately 6V, the LED turns off, signalling that the discharge cycle is complete. Note that a small residual charge of ~6V may remain.

Q: Is it safe to use the discharge pen on high-voltage capacitors repeatedly?

A: The pen is rated for up to 1000V and discharges spark-free. For repeated use on high-capacity capacitors, allow the internal MOSFET component to cool between cycles to maintain safe operation and extend tool longevity.

Q: Does the probe spacing adjust to fit different capacitor footprints?

A: Yes. The probe pin-pitch is fully adjustable, and the flexible probes can extend and retract easily without being crushed, allowing you to fit a variety of component spacings and PCB layouts.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
