ATX 20/24-Pin Power Adapter Board with Adjustable Voltage & LED Digital Display
Transform any standard ATX computer power supply into a versatile, multi-output bench power station. The diymore ATX 20/24-Pin Power Adapter Board features a real-time LED digital voltage display, high-current terminals, and a wide array of output interfaces — making it the ideal power module for electronics prototyping, device charging, and DIY lab setups. Made in Mainland China.
Key Features
- Universal ATX Compatibility: Works with all standard 20-pin and 24-pin ATX computer power supplies — no modifications needed.

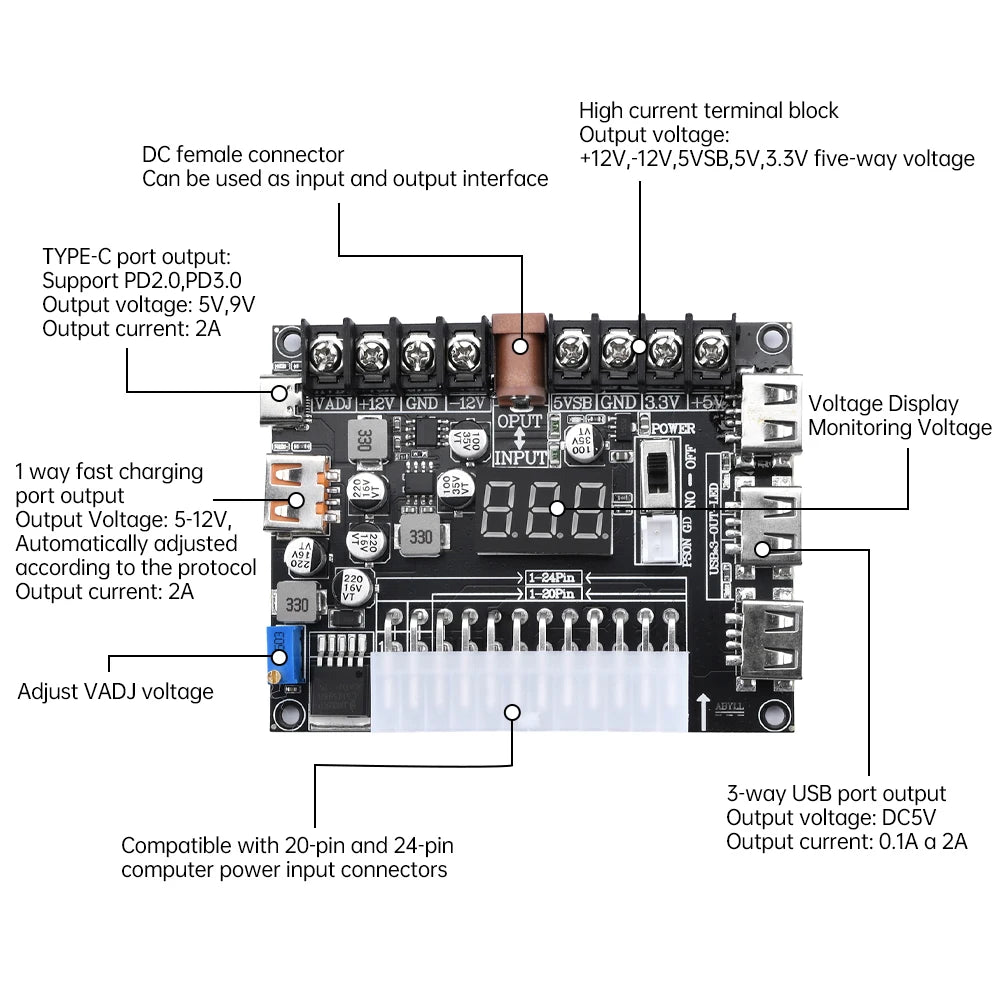

- Multiple Voltage Outputs: Simultaneously delivers +12V, -12V, +5V, 5VSB, and 3.3V across clearly labeled terminals for maximum flexibility.

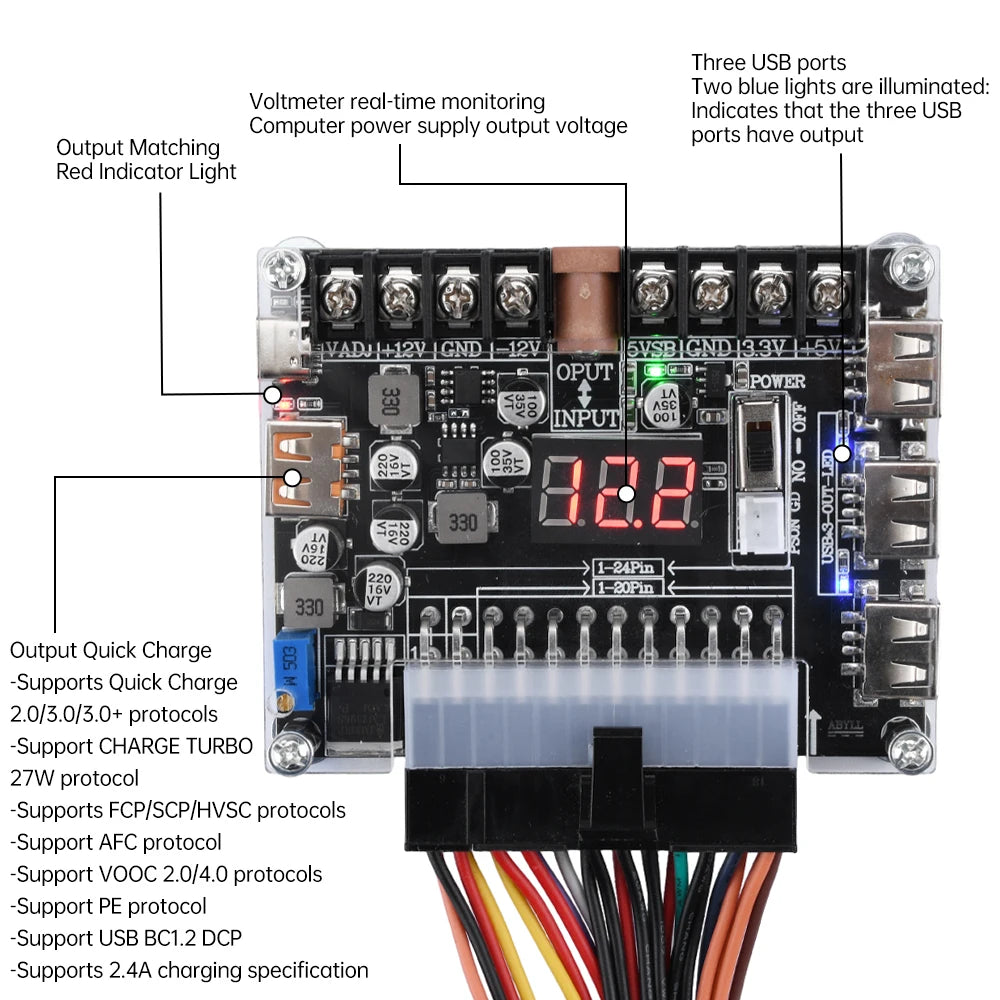

- LED Digital Voltage Display: On-board real-time voltage monitoring so you always know your exact output at a glance.
- Toggle Switch Control: Convenient on/off toggle switch for quick, reliable power management.
- Microcontroller-Ready IO Port: Built-in XH2.54-2P terminal header allows external 5V microcontroller or switch control of ATX power on/off — perfect for custom enclosures and automation projects.
- High-Current Terminals: Engineered with robust, high-current terminal blocks to ensure secure, reliable connections — no loose wiring.
-
3 USB Charging Outputs:
- 2× Standard USB ports: DC 5V, up to 2.1A each
- 1× Fast-Charge USB port: 5V–12V auto-adjusted, 2A (supports multiple fast-charge protocols)
- USB Type-C Output: Supports PD 2.0 / PD 3.0 protocols; outputs 5V or 9V at 2A — charge modern smartphones and tablets at full speed.
- DC Female Connector: Functions as both input (DC 12V–24V) and output (12V), enabling use as a standalone power supply without an ATX source.
- Low Power Consumption: Efficient design minimizes standby draw.
Technical Specifications
| Compatible PSU Connectors | 20-pin & 24-pin ATX |
| Terminal Output Voltages | +12V, -12V, +5V, 5VSB, 3.3V |
| Standard USB Output | DC 5V, 0.1A – 2.1A |
| Fast-Charge USB Output | 5V–12V auto, 2A |
| Type-C Output | 5V / 9V, 2A (PD 2.0 / PD 3.0) |
| DC Connector | Input: DC 12V–24V / Output: 12V |
| IO Control Port | XH2.54-2P (5V MCU or switch compatible) |
| Power Consumption | Low Power |
| Quantity | 1 Module (Kit options available) |
| Country of Origin | Mainland China |
What's in the Box?
Kit I: Adapter Board ×1
Kit II (Set Two): Adapter Board ×1 | Acrylic Protective Shell ×1 | Accessory Hardware ×1
Compatible Devices & Applications
The USB and Type-C outputs are ideal for powering and charging smartphones, tablets, portable power banks, flashlights, Bluetooth speakers, smart wristbands, small desk lamps, and electronic component burn-in/aging tests. The terminal outputs are perfect for breadboarding, Arduino/Raspberry Pi projects, and general electronics lab work.
Related Products You May Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this ATX power adapter board compatible with both 20-pin and 24-pin power supplies?
A: Yes! The adapter board is fully compatible with all standard 20-pin and 24-pin ATX computer power supplies, making it versatile for a wide range of desktop PSU brands and models.
Q: Can I use the DC female connector as an input if I don't have an ATX power supply?
A: Absolutely. The DC female connector supports input voltages from DC 12V to 24V, allowing you to use the board as a standalone multi-output power module without an ATX PSU. In output mode, it delivers 12V DC.
Q: Does the Type-C port support fast charging for modern smartphones and tablets?
A: Yes. The Type-C interface supports PD 2.0 and PD 3.0 protocols, delivering 5V or 9V at up to 2A — compatible with fast charging on most modern USB-C smartphones and tablets (requires a PD-compatible cable and device).
Q: What does the XH2.54-2P terminal on the board do?
A: This reserved terminal allows you to connect the ATX power supply's on/off control to a microcontroller IO port (5V logic) or an external switch. It's especially useful for custom enclosure builds or automated setups where remote power control is needed.
Q: What is the difference between Kit I and Kit II (Set Two)?
A: Kit I includes the adapter board only. Kit II (Set Two) bundles the adapter board with a clear acrylic protective shell and mounting accessories, offering better physical protection and a cleaner look for your workbench setup.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
