9-Speed Adjustable Handheld Spot Welder – Portable Battery Welding Kit
Take your electronics repair and DIY battery assembly projects to the next level with this compact, one-handed Portable Handheld Spot Welder. Featuring 9 adjustable power settings, an 800A output current, and a built-in 2200mAh lithium-polymer battery, this kit delivers professional-grade spot welding performance in a lightweight, travel-friendly design. CE and RoHS certified for quality assurance. Made in Mainland China.
Key Features
- 9 Adjustable Power Settings: Dial in the exact energy level you need for nickel-plated (0.1–0.15mm) or pure nickel (0.1–0.12mm) strips, giving you precise control over every weld.

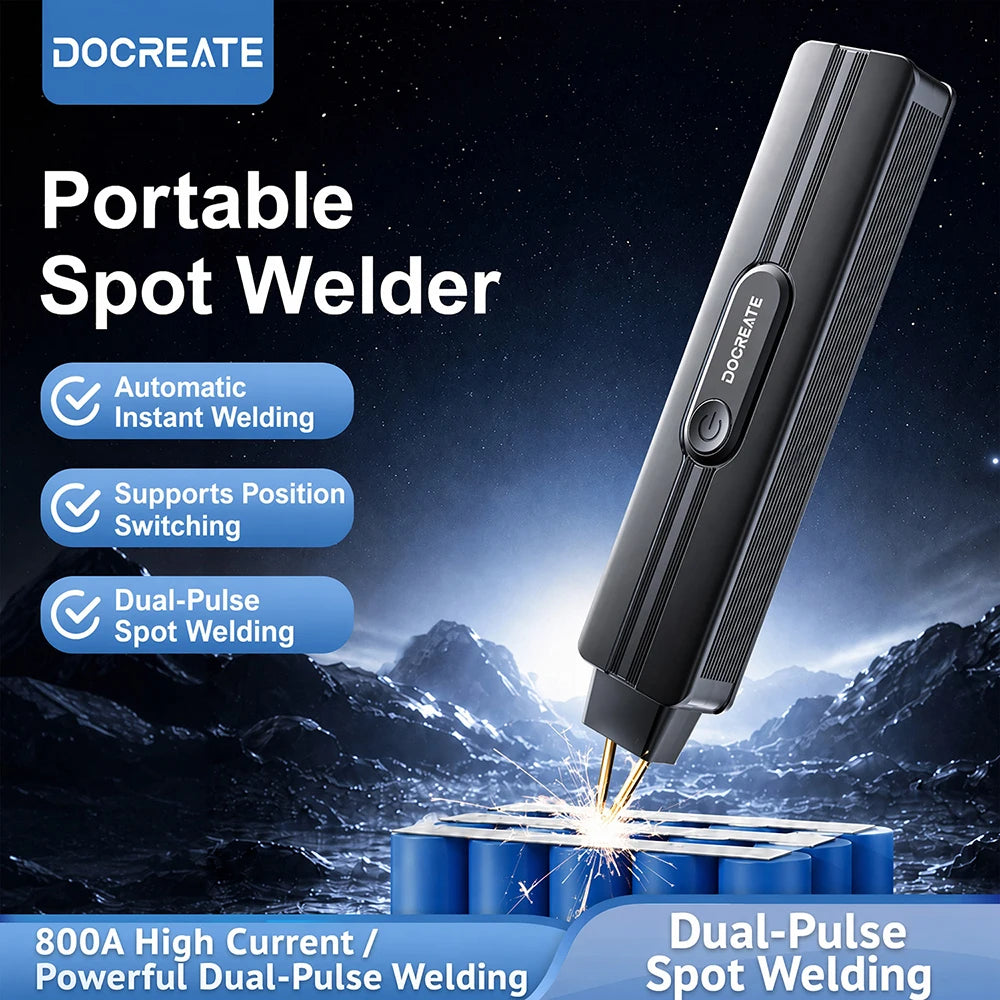

- High-Output Performance: 800A output current and 3360W output power ensure clean, reliable welds on thin nickel strips used in battery packs and electronic assemblies.
- Built-In 2200mAh Battery: Charge via the convenient Type-C port (DC 5V/2A input) so you can work untethered — no external power source needed on the workbench or in the field.
- Clear LED Display: Three-colour LED indicators keep you informed at a glance — red for charging status, blue for battery level, and white for current power setting.
- Pure Copper Welding Needles: Threaded, detachable pure copper tips deliver superior conductivity and are easy to replace when worn.
- Comprehensive Safety Protections: Built-in surge protection, voltage regulation, short-circuit protection, low-temperature protection, high-temperature protection, overcharge protection, and over-discharge protection keep you and your components safe.

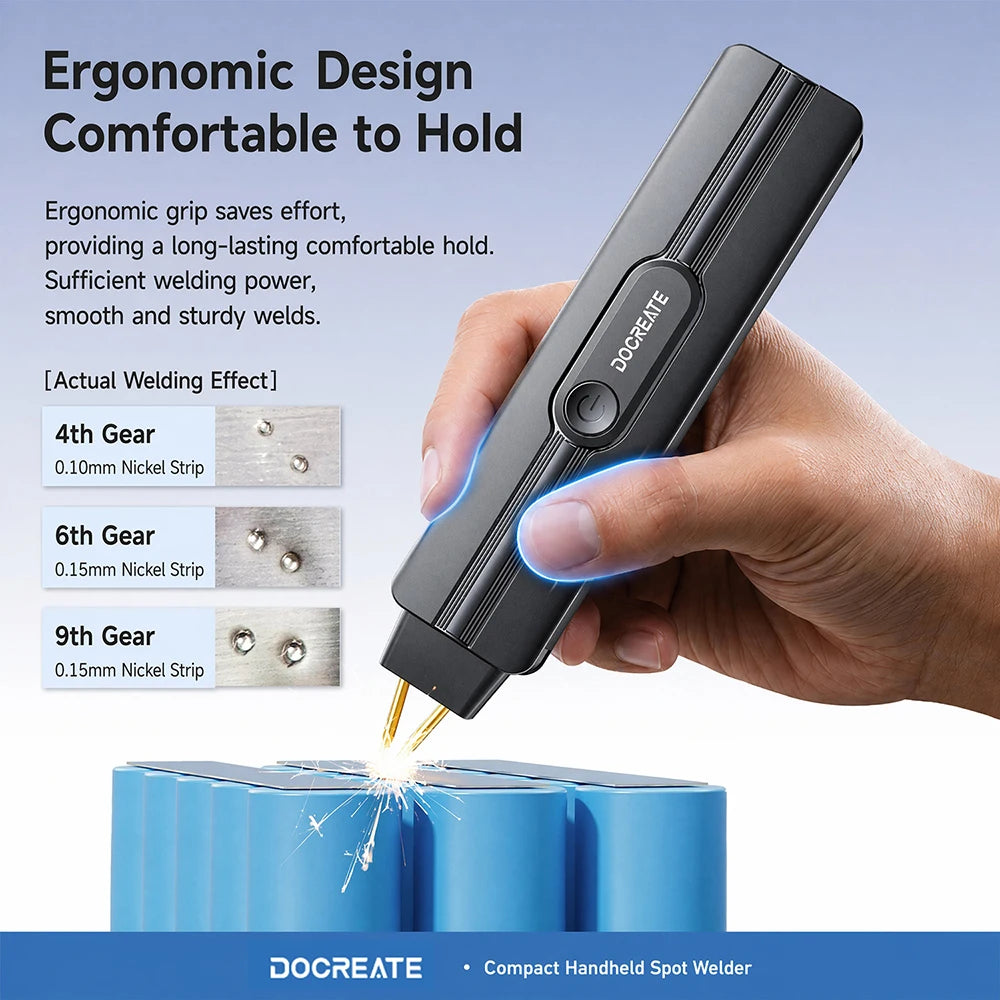

- Ergonomic One-Handed Design: At just 240g and measuring 187 × 42 × 23mm, this welder fits comfortably in one hand for extended repair sessions.

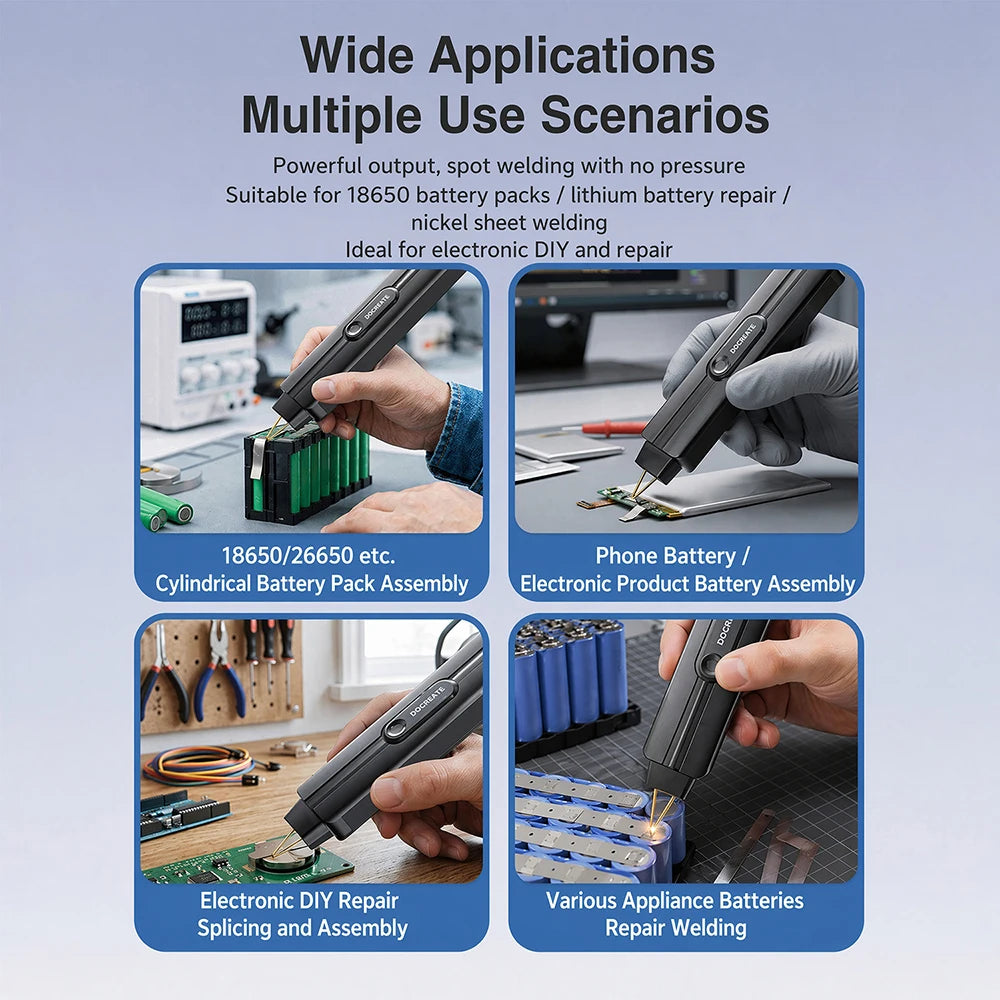

- Wide Application Range: Ideal for mobile phone repairs, DIY electronics projects, 18650 and lithium-ion battery pack assembly, nickel strip splicing, and hobby electronics work.
Technical Specifications
| Output Current | 800A |
| Output Power | 3360W |
| Output Voltage | 4.2V |
| Battery Capacity | 2200mAh (Lithium-Polymer) |
| Charging Input | DC 5V / 2A via Type-C |
| Adjustable Settings | 9 levels |
| Max Welding Thickness | 0.15mm (nickel-plated) / 0.12mm (pure nickel) |
| Needle Material | Pure Copper (threaded, detachable) |
| Housing Material | ABS |
| Display | LED (tri-colour) |
| Dimensions | 187 × 42 × 23mm |
| Weight | 240g |
| Certification | CE, RoHS |
| Country of Origin | Mainland China |
What's in the Box
- Handheld Spot Welder Main Unit × 1
- Nickel Coil × 1
- Type-C Charging Cable × 1
- Sandpaper × 1
- User Manual × 1
You May Also Like
Looking for more tools and hobby supplies? Check out our Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules for post-project recovery support, or browse our popular B&U Soft Crawfish Bass Lure – Salted Craw Bait 5 Pack if you enjoy outdoor hobbies alongside your DIY electronics projects.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What materials can this handheld spot welder weld?
A: This portable spot welder is designed to weld thin nickel strip materials — specifically nickel-plated strips up to 0.15mm thick and pure nickel strips up to 0.12mm thick. It is ideal for 18650 and other lithium-ion battery pack assembly, mobile phone battery tab welding, and general DIY electronics repair projects.
Q: How do I charge the built-in battery?
A: The unit charges via the standard Type-C port using a DC 5V/2A input. Simply connect the included Type-C charging cable to a compatible USB charger or power bank. The red LED indicator illuminates during charging, and the blue LED shows the remaining battery level.
Q: Is this spot welder safe to use at home or in a workshop?
A: Yes. The unit is CE and RoHS certified and incorporates multiple built-in safety mechanisms including surge protection, voltage regulation, short-circuit protection, overcharge protection, over-discharge protection, and both high-temperature and low-temperature protection. Always follow the included user manual instructions and work in a well-ventilated area.
Q: Can I replace the copper welding needles?
A: Absolutely. The pure copper welding needles use a threaded, detachable connection, making them easy to unscrew and replace once worn. Keeping fresh tips ensures consistent weld quality across all 9 power settings.
