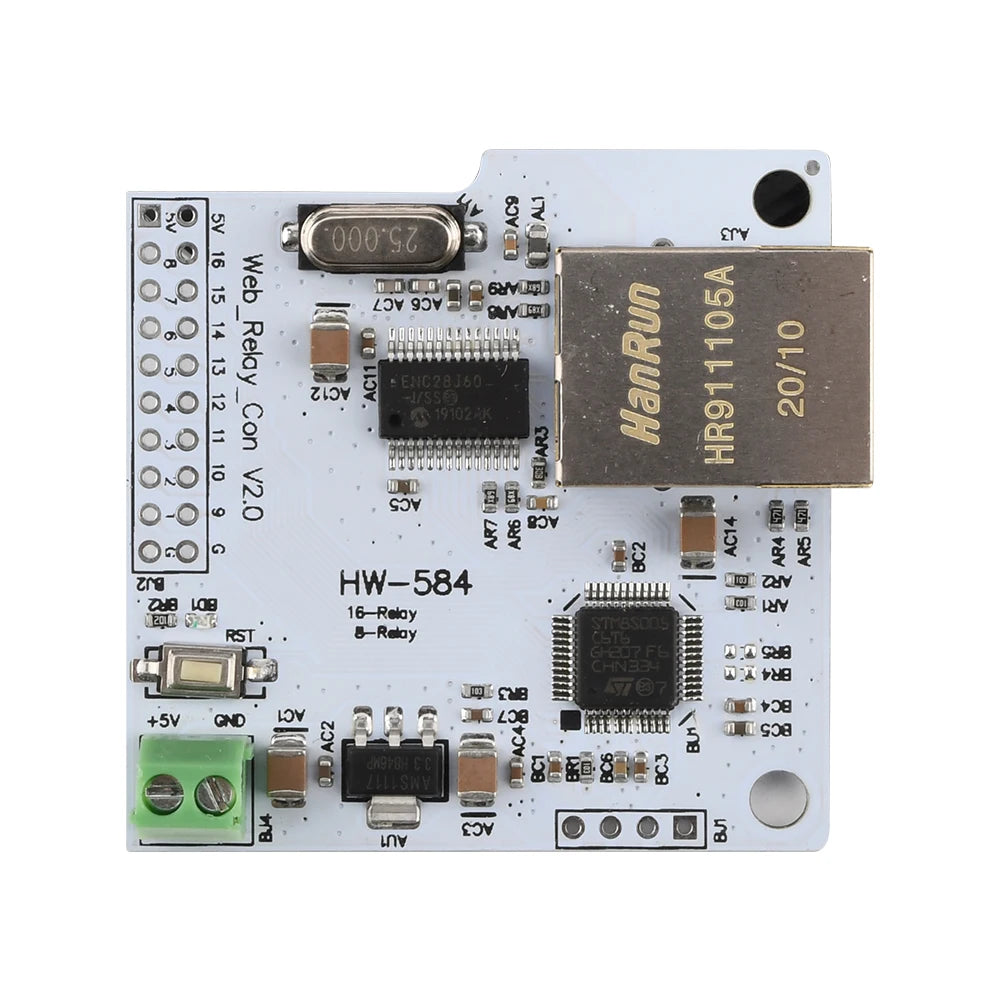

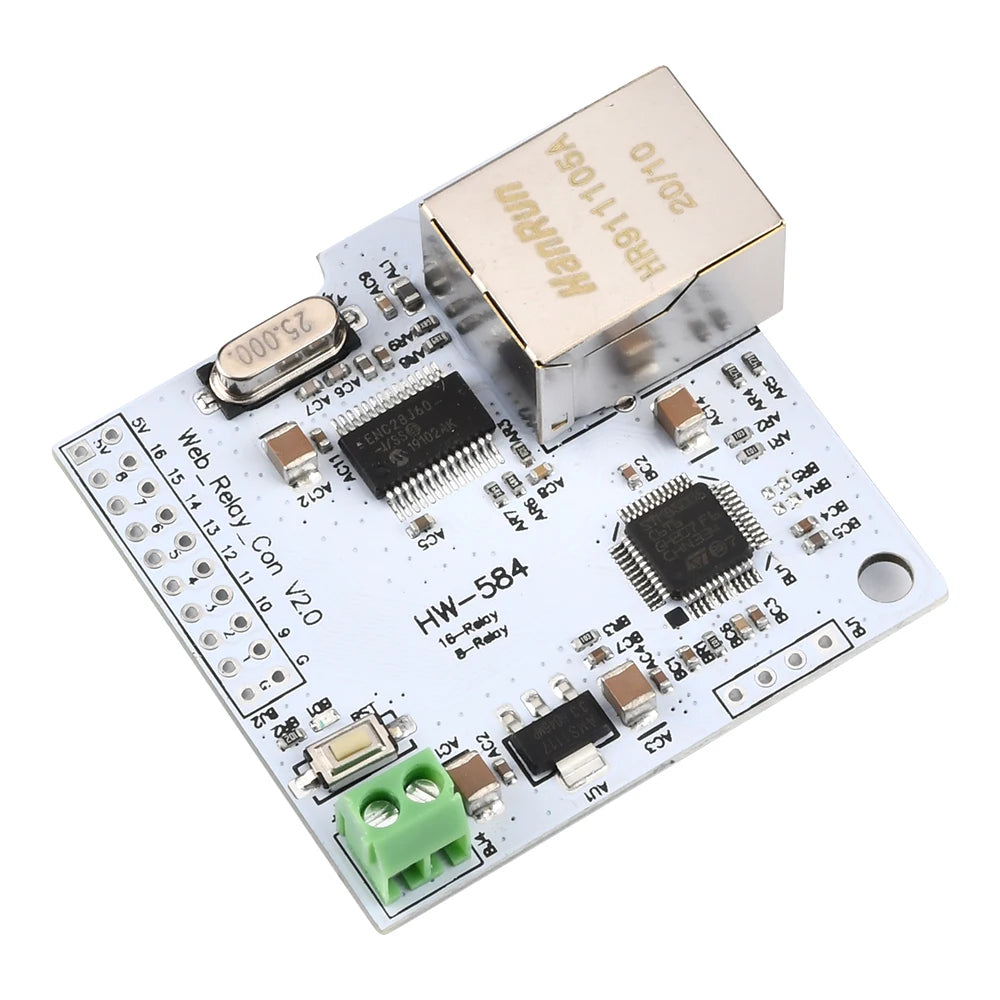

16-Channel ENC28J60 Network Relay Module

Take full control of your electrical switching infrastructure from anywhere on your network. The diymore 16-Channel ENC28J60 Network Relay Module is a powerful, router-controlled relay board built on a 32-bit platform that lets you switch up to 16 independent circuits via any standard web browser — no special software required.

Whether you're managing smart office automation, surveillance system power, industrial equipment, or unattended remote installations, this module delivers reliable, low-power centralized control over your entire electrical switching network.

Key Features

• 16 Independent Relay Channels — control up to 16 separate circuits individually via HTTP commands
• Browser-Based Control — configure and operate directly through any Internet Explorer-compatible browser; no dedicated software needed
• Internet & LAN Remote Control — operate over the internet or an internal router for maximum flexibility
• 32-Bit System Architecture — ensures fast, stable, and responsive switching performance
• 100,000-Cycle Electronic Switch Lifespan — built for long-term, high-frequency use
• Wide Operating Temperature Range — -30°C to 85°C, suitable for demanding environments
• Low Power Consumption — energy-efficient design for continuous operation

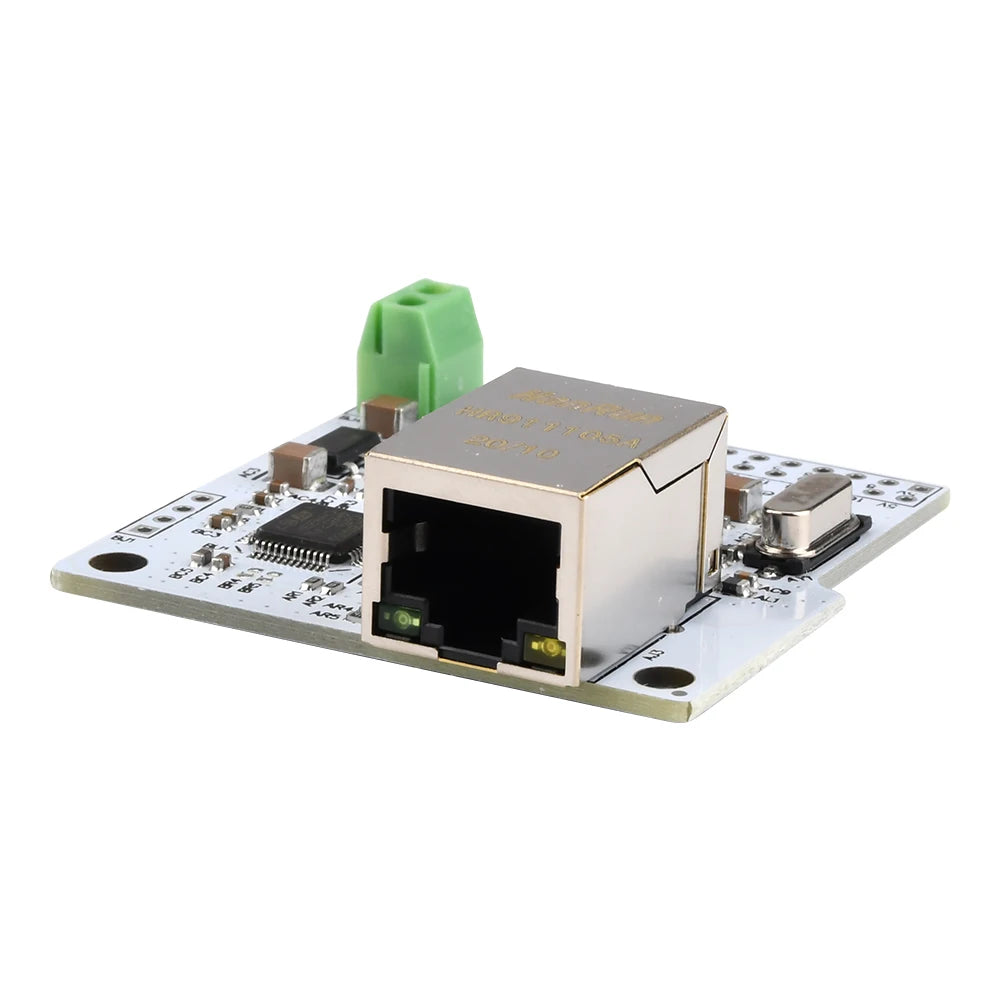

• ENC28J60 Ethernet Controller — proven, reliable network interface for stable connectivity

Technical Specifications

HTTP Command Reference

Control each relay individually using simple HTTP GET commands from any browser or automation script:

• http://IP/Port/00 — Relay 01 OFF  |  /01 — Relay 01 ON
• http://IP/Port/02 — Relay 02 OFF  |  /03 — Relay 02 ON
• (Continues in pairs through Relay 16: commands /30 = OFF, /31 = ON)
• http://IP/Port/99 — Returns current status of all 16 relays in ASCII (MSB = Relay 1, LSB = Relay 16)

Modify IP: http://IP/Port/41 — Relay-01 value cannot be 0; octets 01–04 cannot exceed 255; port cannot be 0.

Restore Defaults: Press and hold the button until the LED lights up, then release. The module resets to IP: 192.168.1.4, Port: 30000.

Ideal Applications

• Office and commercial building automation
• Surveillance and security system power management
• Hotels, shopping malls, cafes, and karaoke venue timer management
• Industrial equipment and factory power control
• Unattended remote stations (underground pipelines, mining, marine, aviation facilities)
• Smart home and centralized management systems
• Test equipment power sequencing

⚠️ Safety Note: When connecting to high-voltage power modules, carefully verify all wiring before energizing to prevent equipment damage from short circuits.

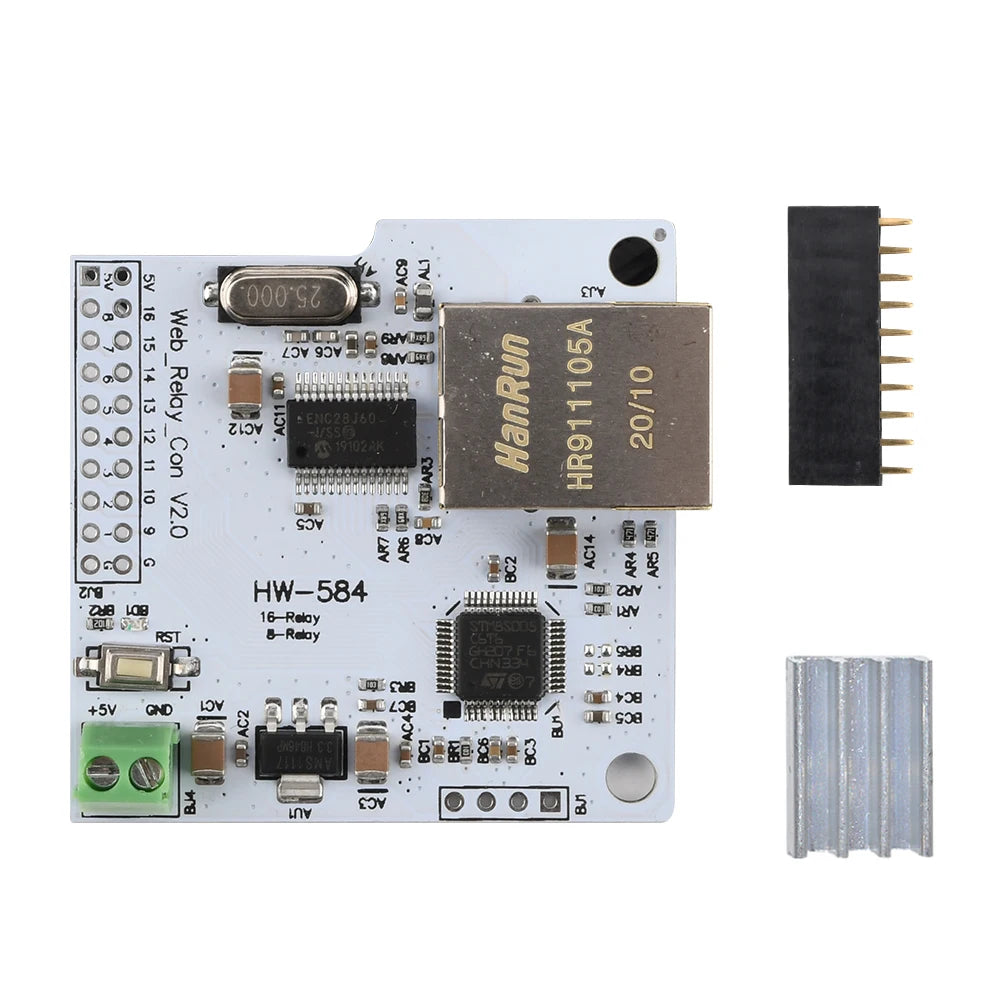

What's in the Box

• 1× 16-Channel ENC28J60 Network Relay Module
• 1× Heat Sink
• 1× Pin Header
