Gaqqee 1500W Synchronous Rectifier DC-DC Step-Down Power Supply Module
The Gaqqee 1500W Buck Power Supply Module is a high-performance, adjustable DC-DC step-down converter engineered for industrial-grade applications. Whether you're driving high-power LED lighting systems or managing battery charging, this module delivers stable, efficient, and adjustable constant voltage or constant current output with up to 95% typical efficiency. CE and RoHS certified, it's built for reliability and continuous operation.
Made in Mainland China.
Key Features

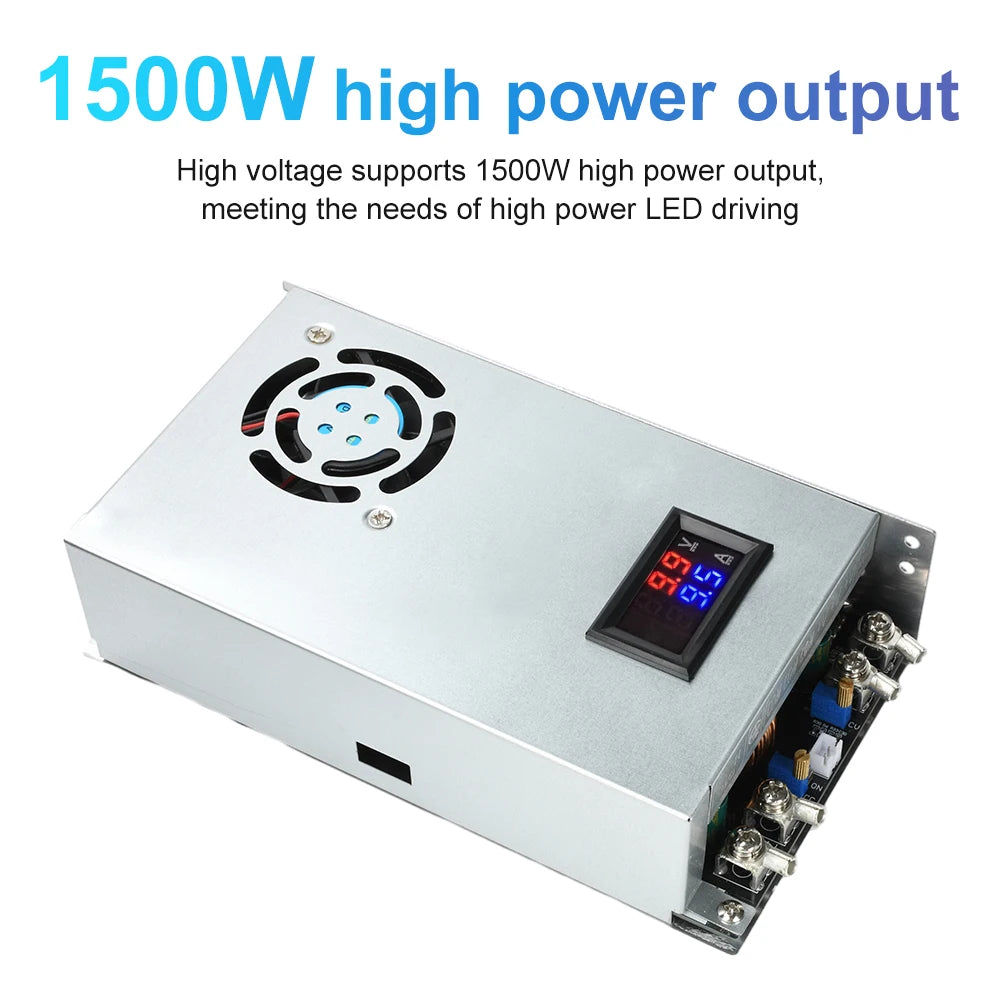

- High-Power Output: Up to 1500W peak / 1200W rated — ideal for demanding LED driver and battery charging applications.
- Synchronous Rectification Technology: Maximises energy efficiency (90%–97%), significantly reducing heat generation and energy consumption.
- Three Model Variants: Choose from Model A, B, or C to match your exact input/output voltage requirements.
- Fully Adjustable: Independently adjustable output voltage and current to flexibly meet varying load demands.
- Digital Display: Built-in output voltage and current digital readout for precise real-time monitoring.
- Constant Voltage Indicator: Dedicated CV indicator confirms stable output status at a glance.
- Industrial-Grade Durability: Rated for 0–65°C operating temperature, suitable for continuous industrial use.
- CE & RoHS Certified: Compliant with EU Low Voltage Directive and environmental standards.
Model Specifications At a Glance
| Specification | Model A | Model B | Model C |
|---|---|---|---|
| Input Voltage Range | 15–90 VDC | 15–140 VDC | 15–140 VDC |
| Output Voltage Range | 2.5–72 VDC | 2.5–85 VDC | 2.5–112 VDC |
| Max Output Current | 50A | 35A | 35A |
| Rated Output Current | 40A | 30A | 30A |
Full Technical Specifications
- Peak Output Power: 1500W
- Rated Power: 1200W
- Operating Frequency: 70 kHz
- Typical Efficiency: 95% (range: 90%–97%)
- Minimum Input-Output Voltage Drop: IN × 0.2
- Operating Temperature: 0–65°C
- Certifications: CE, RoHS
- Output Voltage Indicator: Yes (constant voltage indicator included)
- Digital Display: Yes (output voltage & current)
Important Safety Precautions
- This module is a step-down (buck) converter only — it reduces voltage; it cannot boost voltage.
- Do not reverse the positive and negative input terminals — there is no reverse polarity protection.
- When connecting to a motor or battery charger, series-connect a Schottky diode rated ≥50A / 100V at the positive output terminal to prevent reverse current flow.
- Avoid prolonged operation at maximum power or current. Maintain at least 20% reserve capacity during extended use.
- Input power source capacity must exceed 1.5× the output power.
- Do not parallel multiple units to increase total power — this is not supported.
What's in the Box
- Step-Down Buck Power Supply Module ×1
Related Products You May Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is a DC-DC buck power supply module and how does it work?
A: A DC-DC buck (step-down) power supply module takes a higher DC input voltage and converts it to a lower, adjustable DC output voltage. The Gaqqee 1500W module uses synchronous rectification technology operating at 70 kHz to do this efficiently — achieving up to 97% efficiency — making it ideal for LED driver applications and battery charging where stable, adjustable output is essential.
Q: Is this buck module suitable for charging lithium or lead-acid batteries?
A: Yes. This module supports constant-current and constant-voltage output modes, making it well-suited for charging various battery types. However, when connecting to a battery, you must series-connect a Schottky diode rated at 50A or higher (100V) at the positive output terminal to prevent reverse current from flowing back into the module.
Q: Which model variant should I choose — A, B, or C?
A: Choose based on your input voltage source and desired output range. Model A supports 15–90 VDC input and up to 72 VDC output (max 50A). Models B and C handle up to 140 VDC input, with Model B outputting up to 85 VDC and Model C up to 112 VDC (both rated at 30A). Select the model whose output voltage range best matches your load requirements.
Q: Can I connect two modules in parallel to get more power?
A: No. Parallel connection of multiple units is not supported and is not recommended. Doing so may cause instability or damage to the modules. For higher power needs, please select a single module with sufficient rated capacity for your application.
