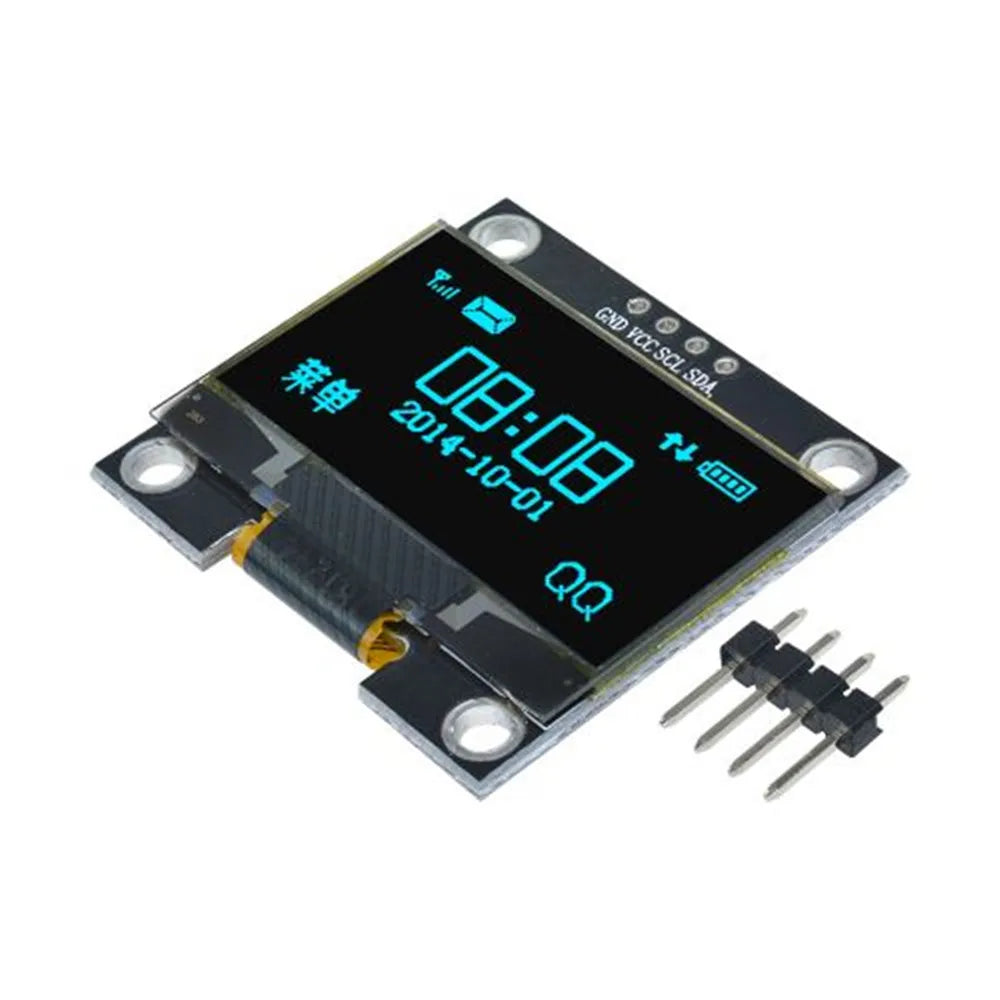

1.3-Inch OLED Display Module – 128×64 SSH1106 | I²C & SPI Interface
Upgrade your electronics project with this compact 1.3-inch OLED display module featuring a crisp 128×64 dot-matrix resolution and the reliable SSH1106 controller chip. Whether you're building a microcontroller dashboard, a DIY weather station, or a custom embedded UI, this module delivers sharp white or blue visuals with minimal power draw and broad voltage compatibility (3.3V–5V).
Made in Mainland China.
Key Features
-
SSH1106 Controller: Fundamentally compatible with SSD1306 — simply adjust the address offset to
0x02when adapting existing SSD1306 code, making migration effortless. - Expanded RAM: SSH1106 offers 132×64 RAM space (vs. SSD1306's 128×64), providing extra headroom for your display buffer.
- Flexible Interface: Choose between the 4-pin I²C interface for simplified wiring or the 7-pin SPI interface for faster data transfer speeds.
- Wide Voltage Range: Operates at 3.3V or 5V, compatible with Arduino, Raspberry Pi, ESP8266, ESP32, STM32, and most common development boards.
- Wide Operating Temperature: Reliable from -40°C to 70°C, suitable for indoor and outdoor enclosures alike.
- Plug-and-Play Ready: Includes header pins and full pinout documentation for quick, direct connection.
Technical Specifications
| Display Size | 1.3 inches |
| Resolution | 128 × 64 pixels |
| Controller Chip | SSH1106 |
| Display Area | 29.42 × 14.7 mm |
| Drive Voltage | 3.3V – 5V |
| Interface | 4-pin I²C / 7-pin SPI |
| Light Color | White / Blue |
| Operating Temperature | -40°C to 70°C |
Pin Definitions (I²C Mode)
- GND: Power ground
- VCC: Power positive (3.3V–5V)
- SCL: Clock line
- SDA: Data line
What's in the Box
- 1× OLED LCD Display Module (SSH1106, 128×64)
- 1× Header Pins
Related Products You May Like
Looking for more components to complete your build? Check out the Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules for wellness support, or explore our fishing lure selection like the B&U 29mm Sinking Minnow Jerkbait Lure.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is the SSH1106 OLED display module compatible with Arduino and ESP32 projects?
A: Yes! The SSH1106 controller is compatible with popular platforms including Arduino, ESP32, ESP8266, Raspberry Pi, and STM32. If you are using an existing SSD1306 library, simply update the address offset to 0x02 and the module will work seamlessly with your existing code.
Q: What is the difference between the 4-pin and 7-pin versions of this OLED module?
A: The 4-pin version uses the I²C interface, which requires only two data lines (SCL and SDA) plus power — ideal for projects where minimizing wiring is important. The 7-pin version uses the SPI interface, which supports faster data transfer rates and is preferred for applications requiring rapid screen updates.
Q: What display colors are available for this 1.3-inch 128×64 OLED module?
A: This SSH1106 OLED display module is available in two pixel colors: white and blue. Both versions feature the same 128×64 resolution, SSH1106 chip, and I²C/SPI interface options.
